Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> PI002 - PI311 >> PI005

PI005

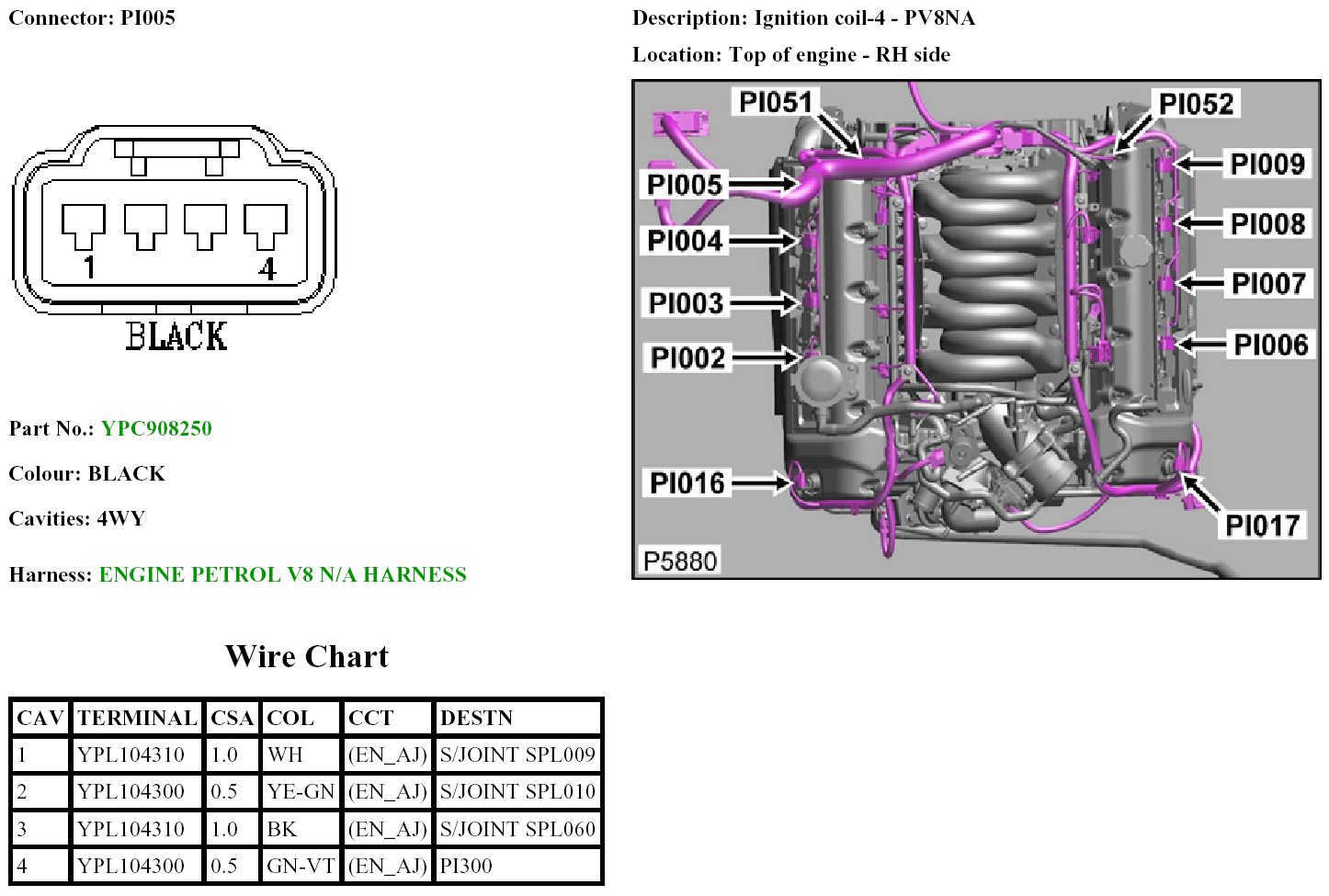

PI005 - PV8NA


PI005:
