Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Part 1

Part 1

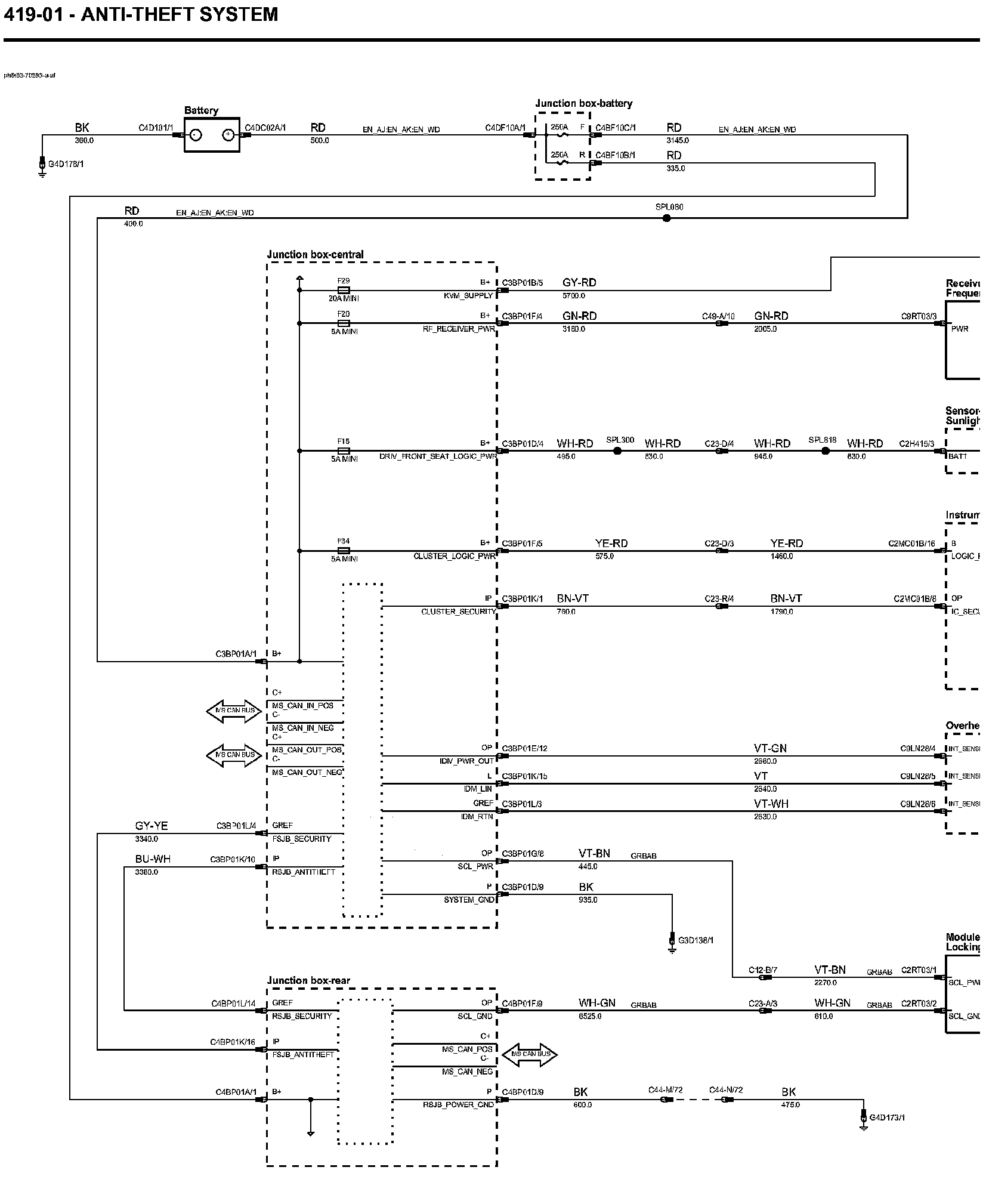

Anti-Theft System (Part 1)

��=:
