Auxiliary Input / Output Jack, Entertainment System
>>

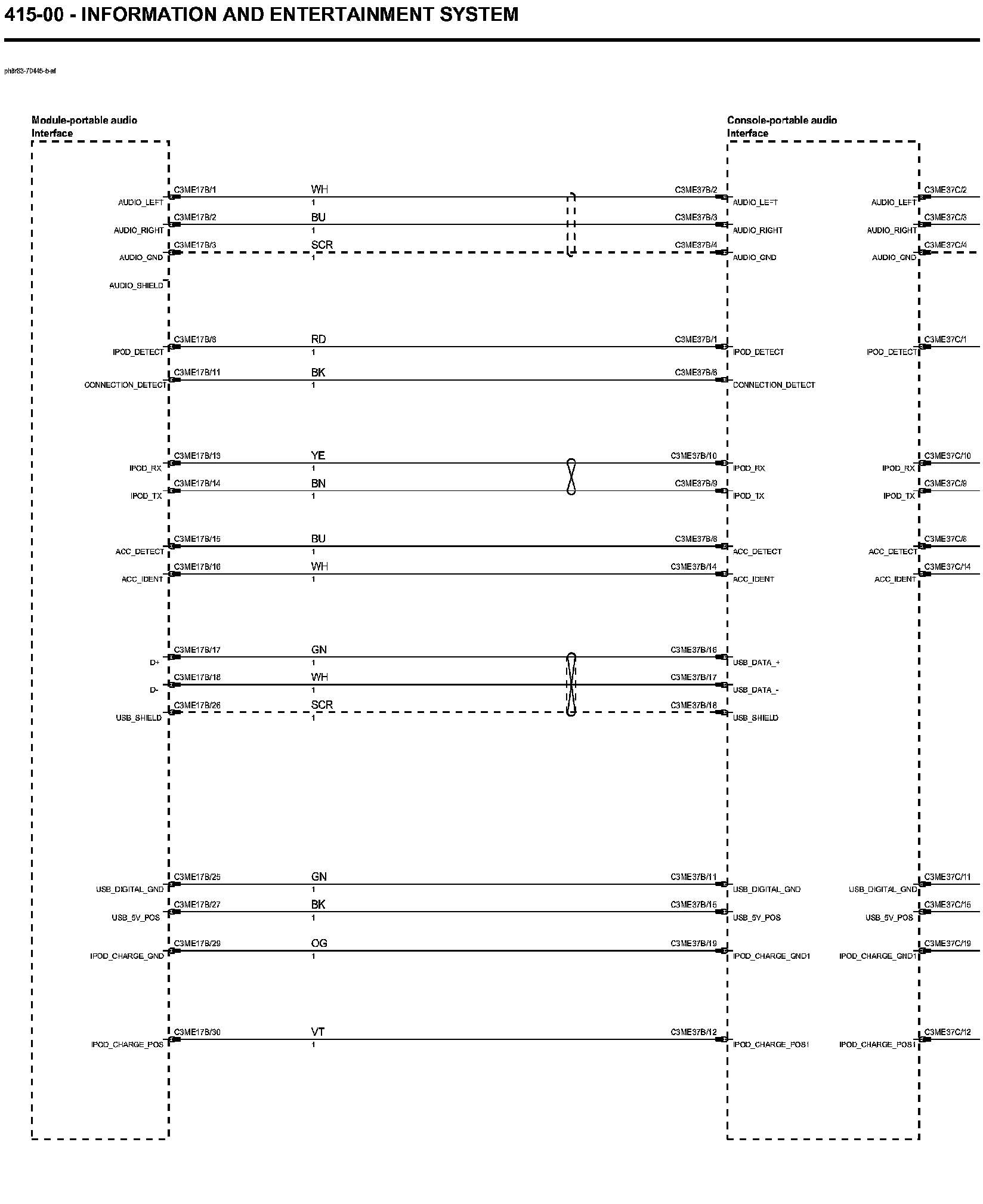

Portable Audio Interface - Part 2
Portable Audio Interface - Part 2
Portable Audio Interface - Part 2
