Keyless Entry
>>

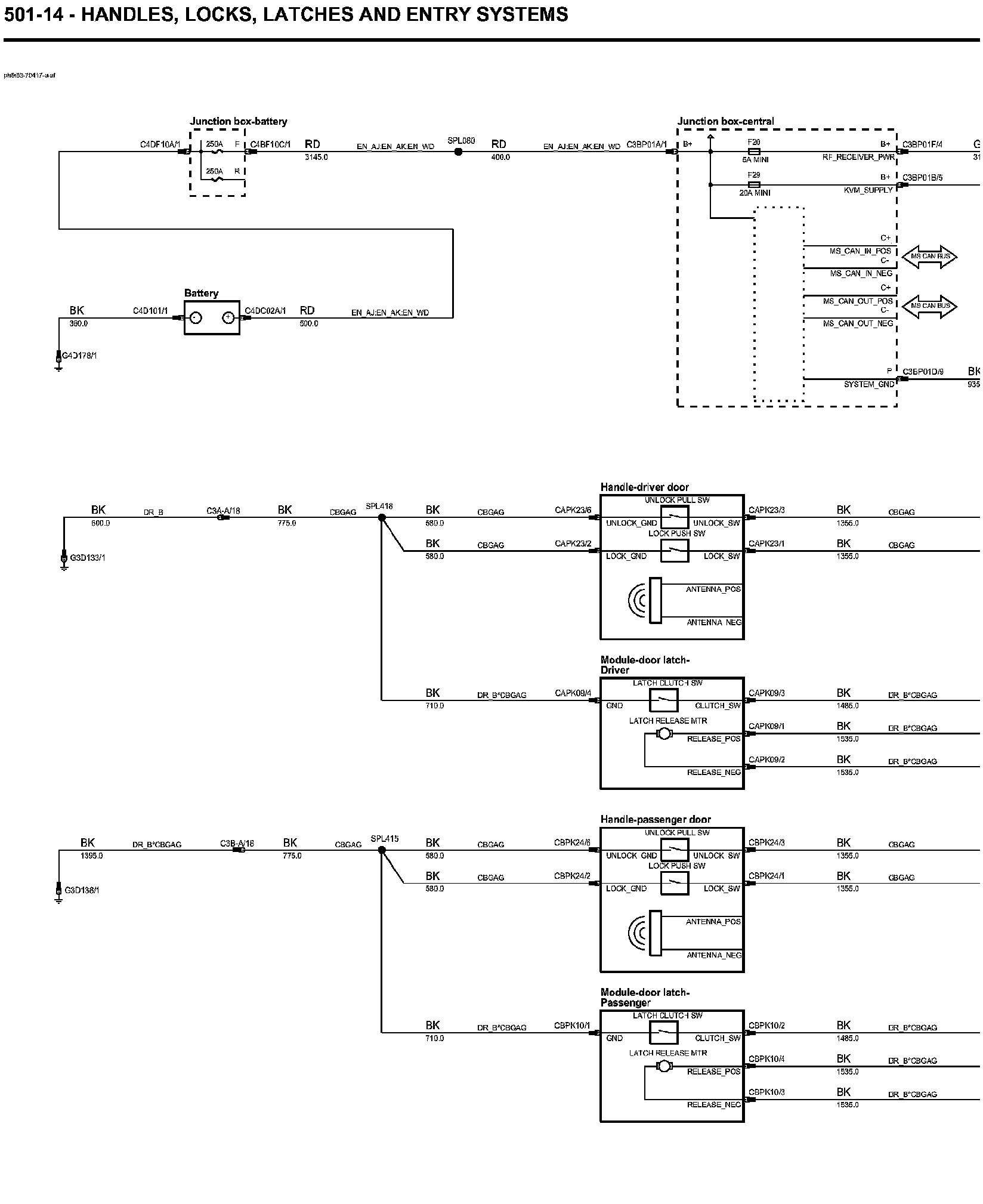

Keyless Entry - Front (LHD)
Keyless Entry - Front (LHD)
Keyless Entry
- Front (LHD)
>�>=:
