Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Memory Positioning Systems >> Driver Seat - 16 Way Memory (LHD)

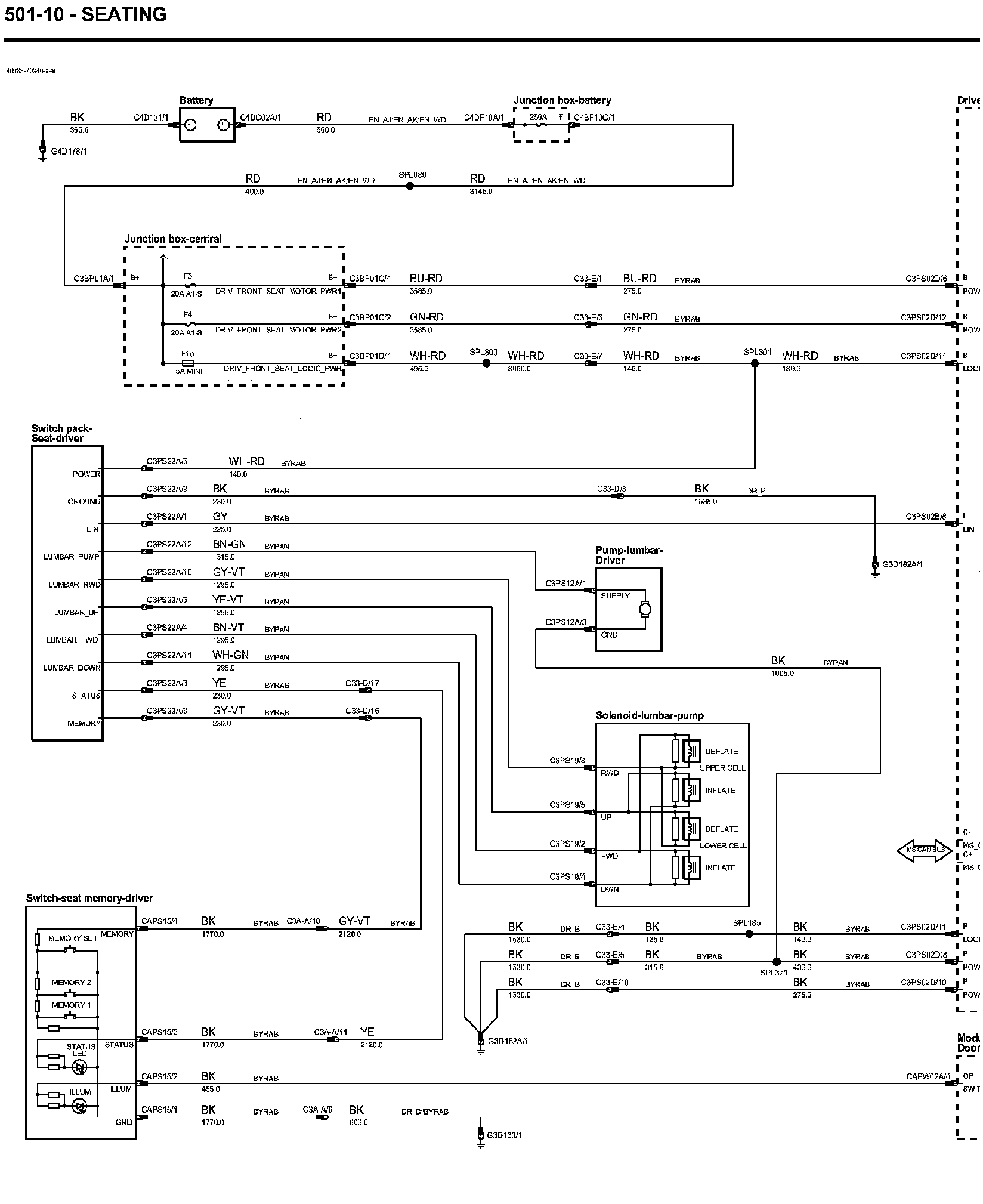

Driver Seat - 16 Way Memory (LHD)



Seating (Driver Seat - 16 Way Memory (LHD))
