Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Front Power Locks

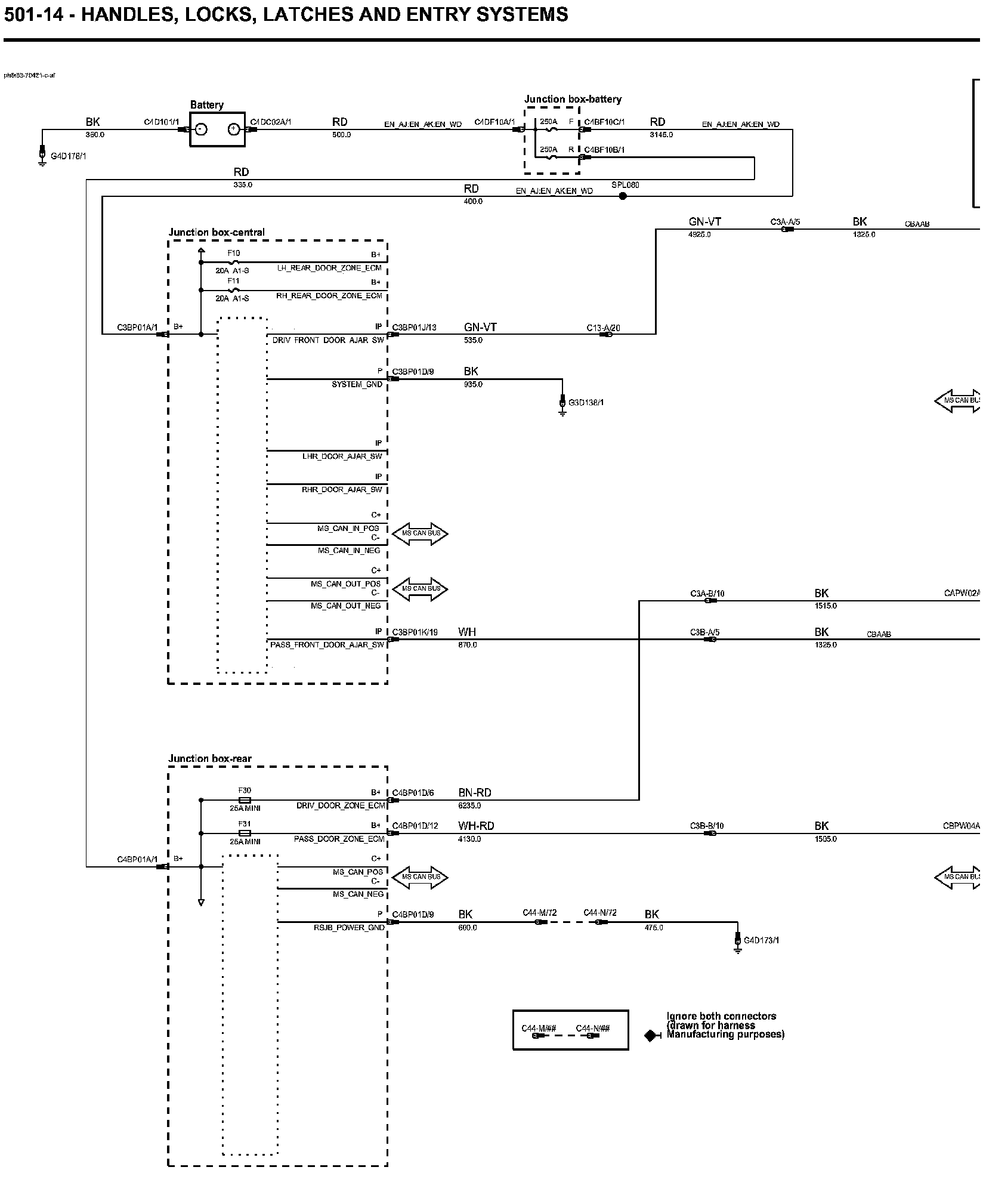

Front Power Locks

Front Power Locks

� FH:
