Jaguar
>>
2009
>>
XF (X250) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Window Lift - Rear
Window Lift - Rear

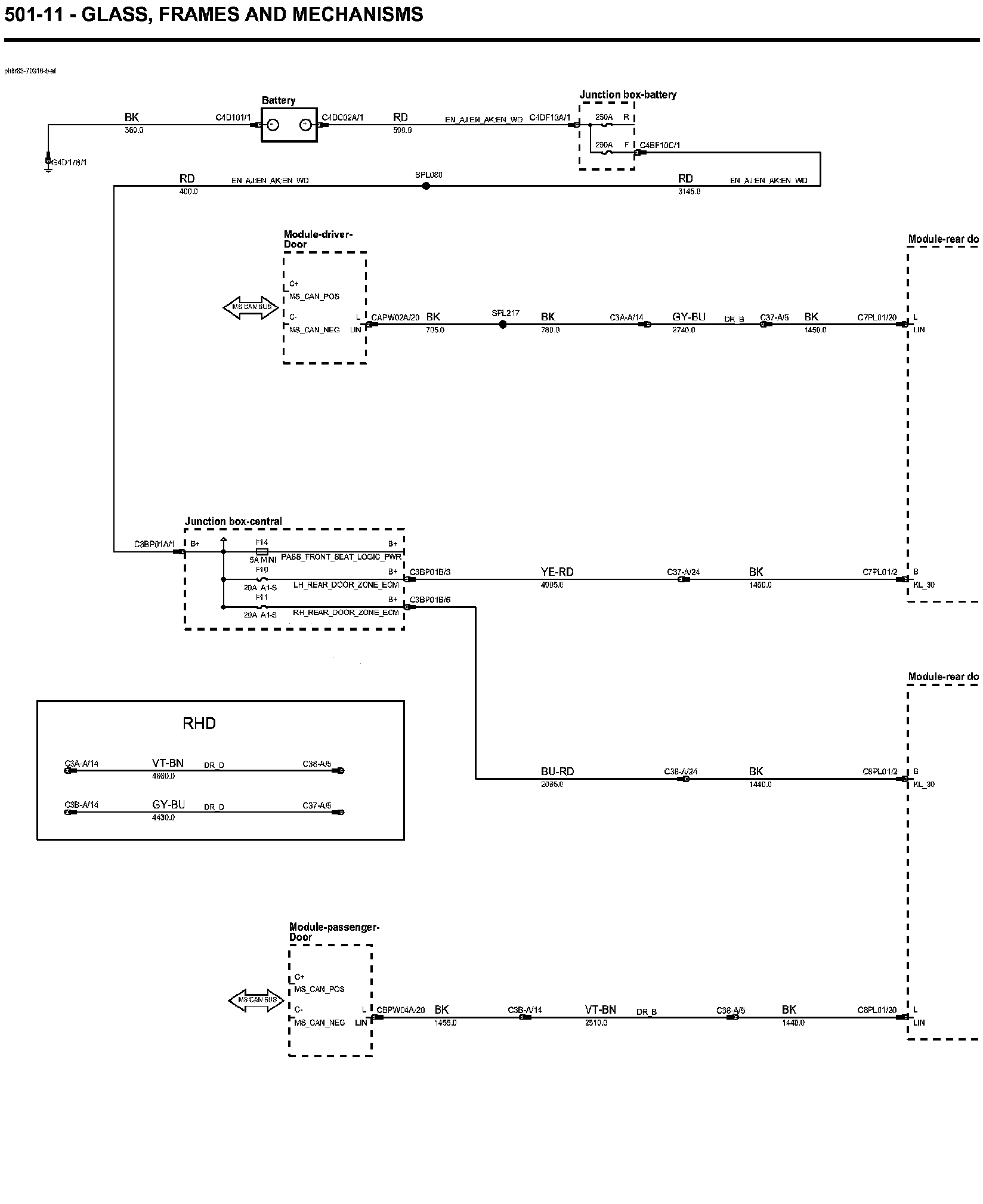

Glass, Frames and Mechanisms (Window Lift - Rear)
