Emission Control Systems: Locations






Engine Emission Control

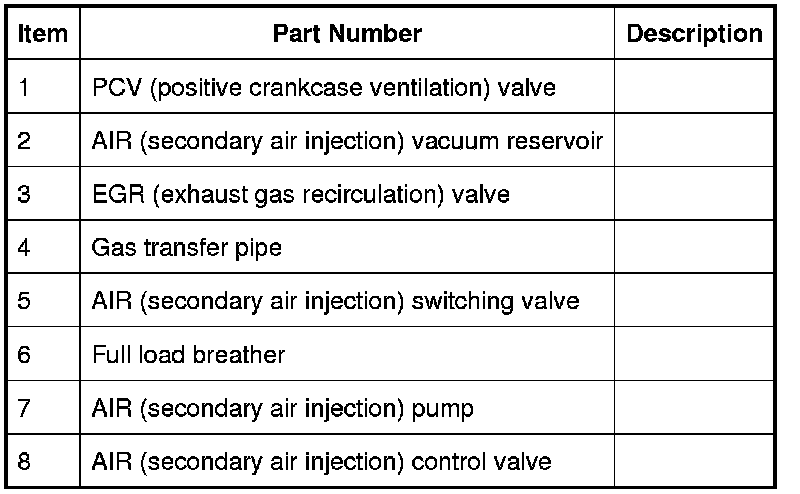

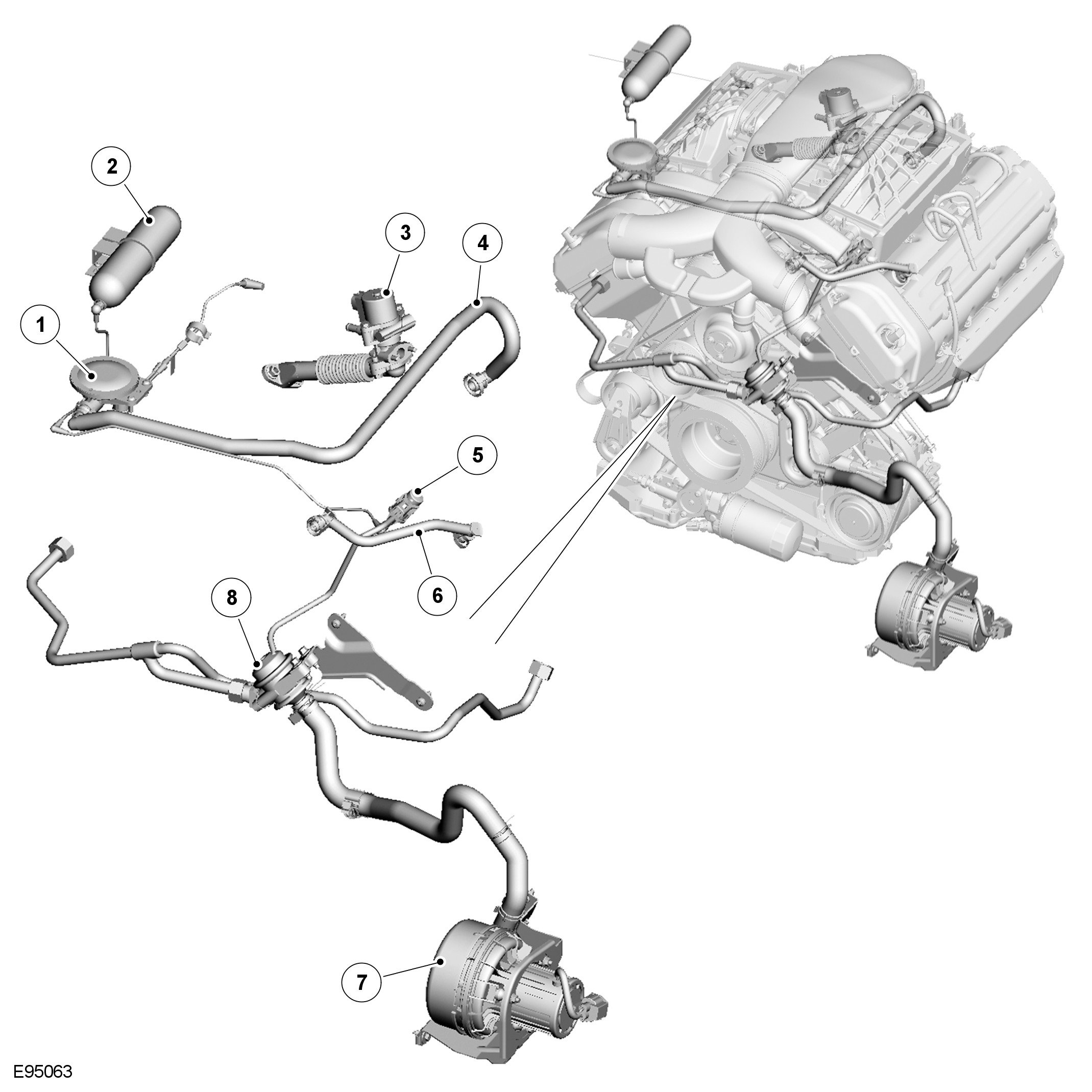

NATURALLY ASPIRATED ENGINE

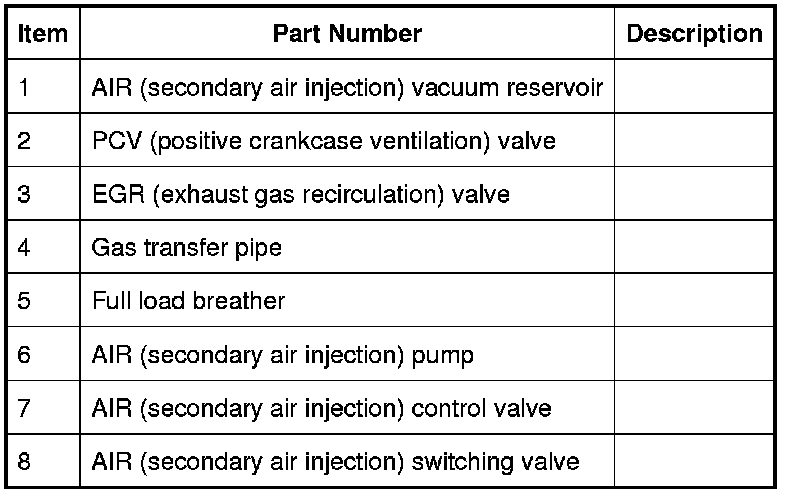

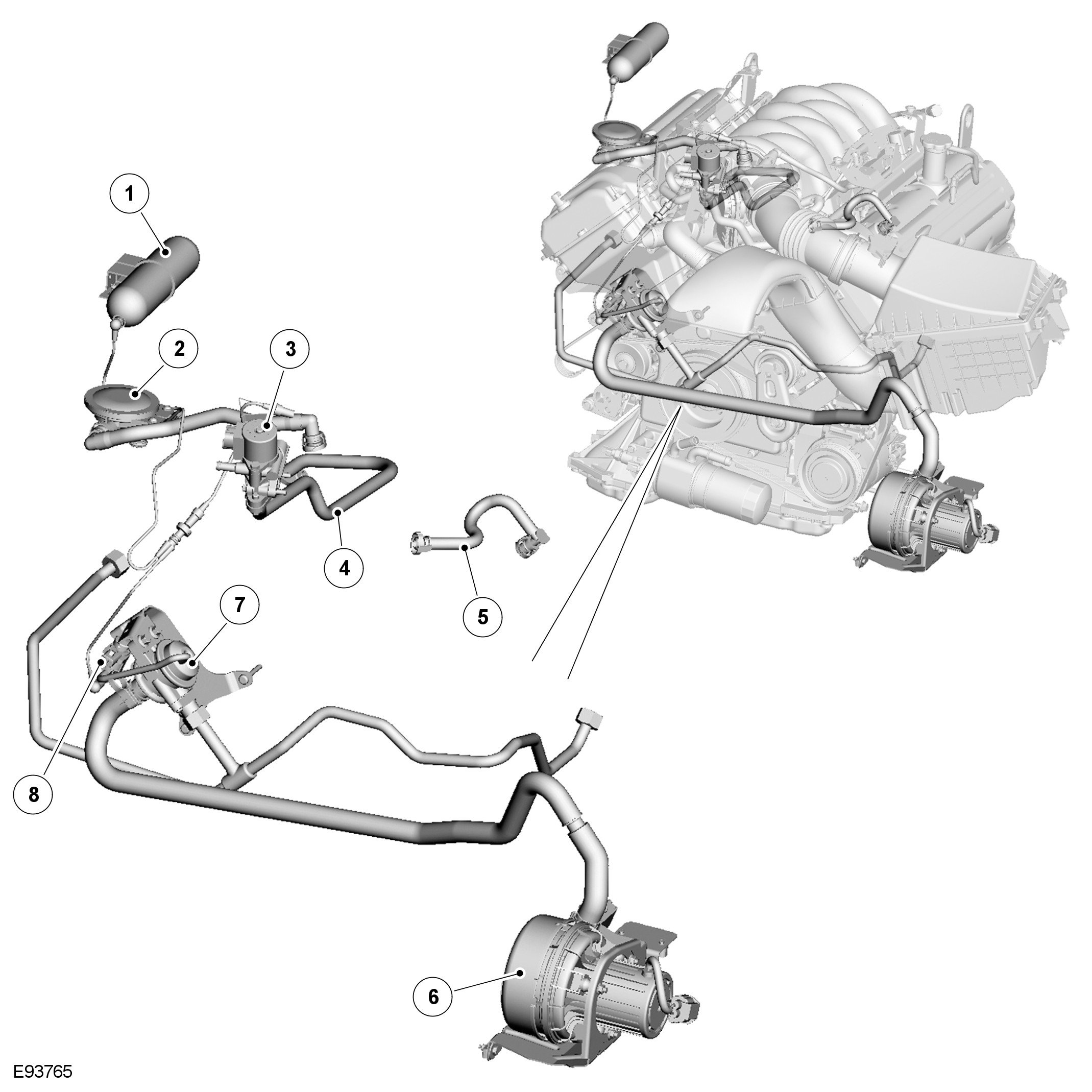

SUPERCHARGED ENGINE
