Locations
>>

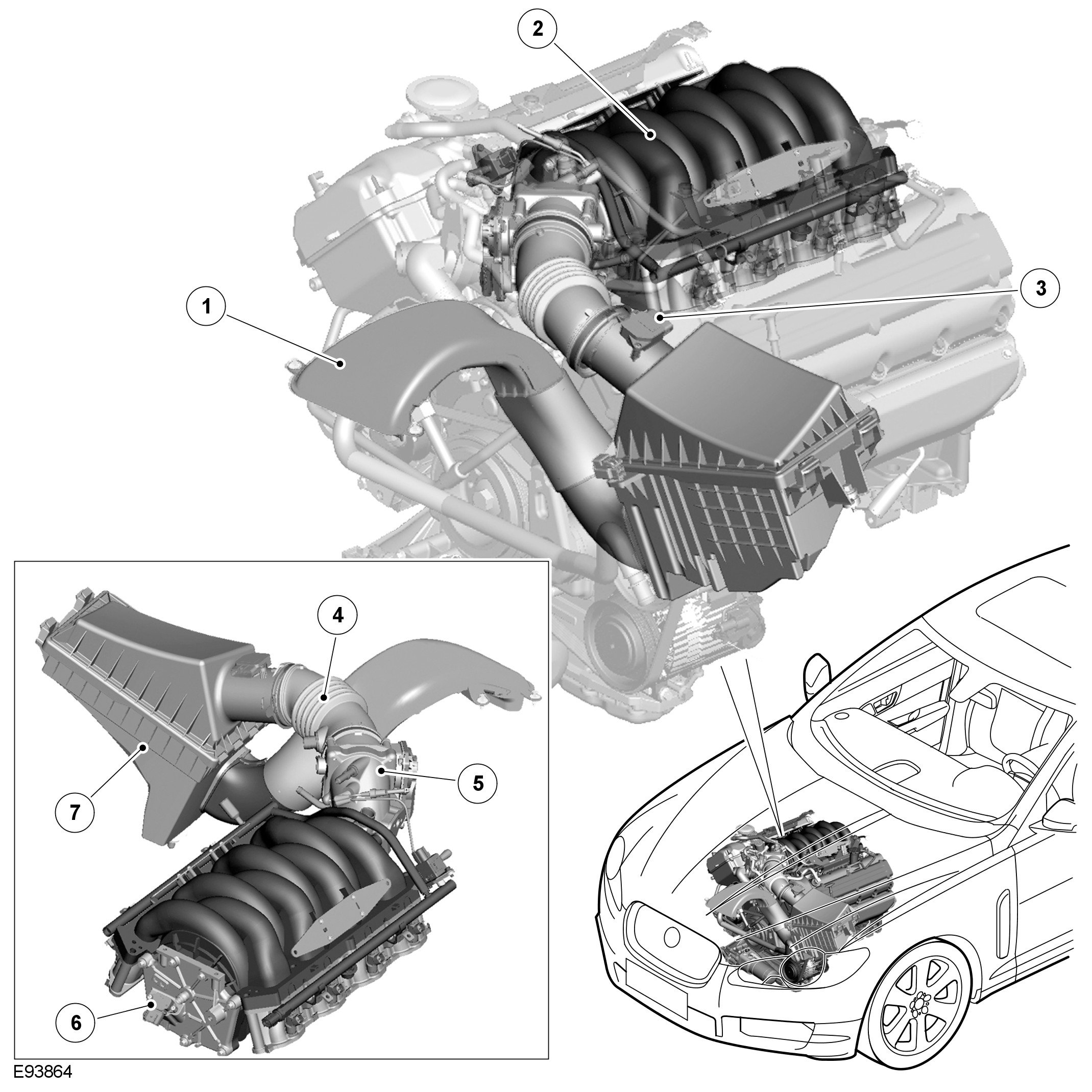

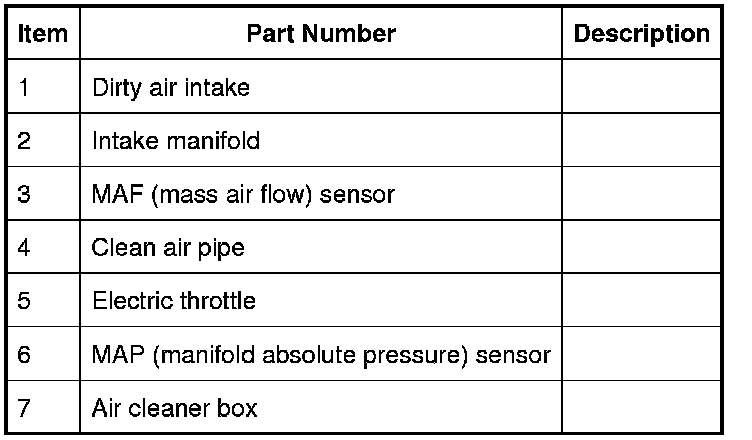

Intake Air Distribution and Filtering
Intake Air Distribution and Filtering
Intake Air Distribution and Filtering
