Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XF (X250) V8-4.2L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Pedestrian Protection System
>>
Locations
>>

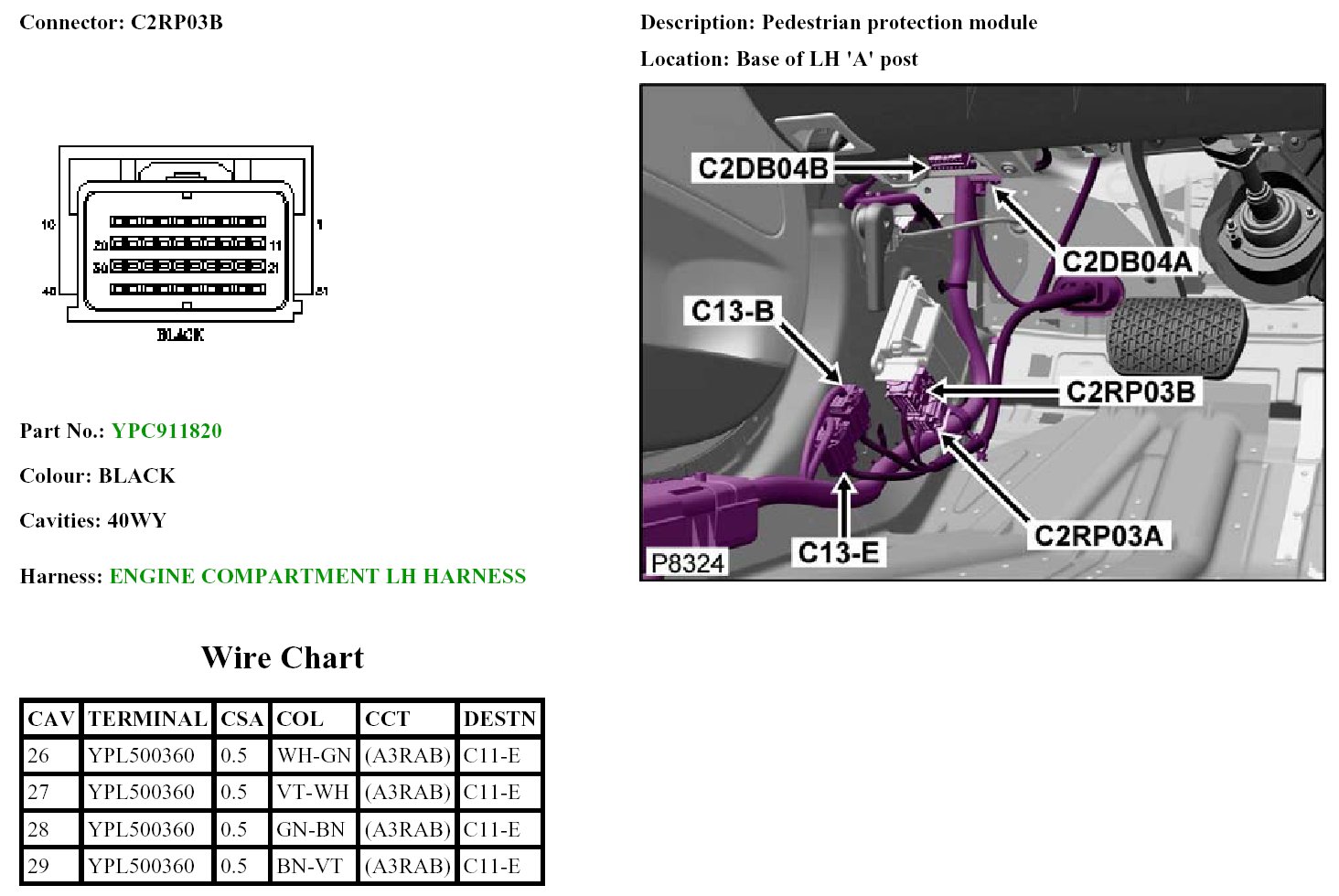

Pedestrian Protection Module
Pedestrian Protection Module
Pedestrian Protection Module
C2RP03A:
C2RP03B:
