Figure 05.1 (Dynamic Stability Control)
Figure 05.1 (Dynamic Stability Control)
Dynamic Stability Control
Diagram Figure 05.1:

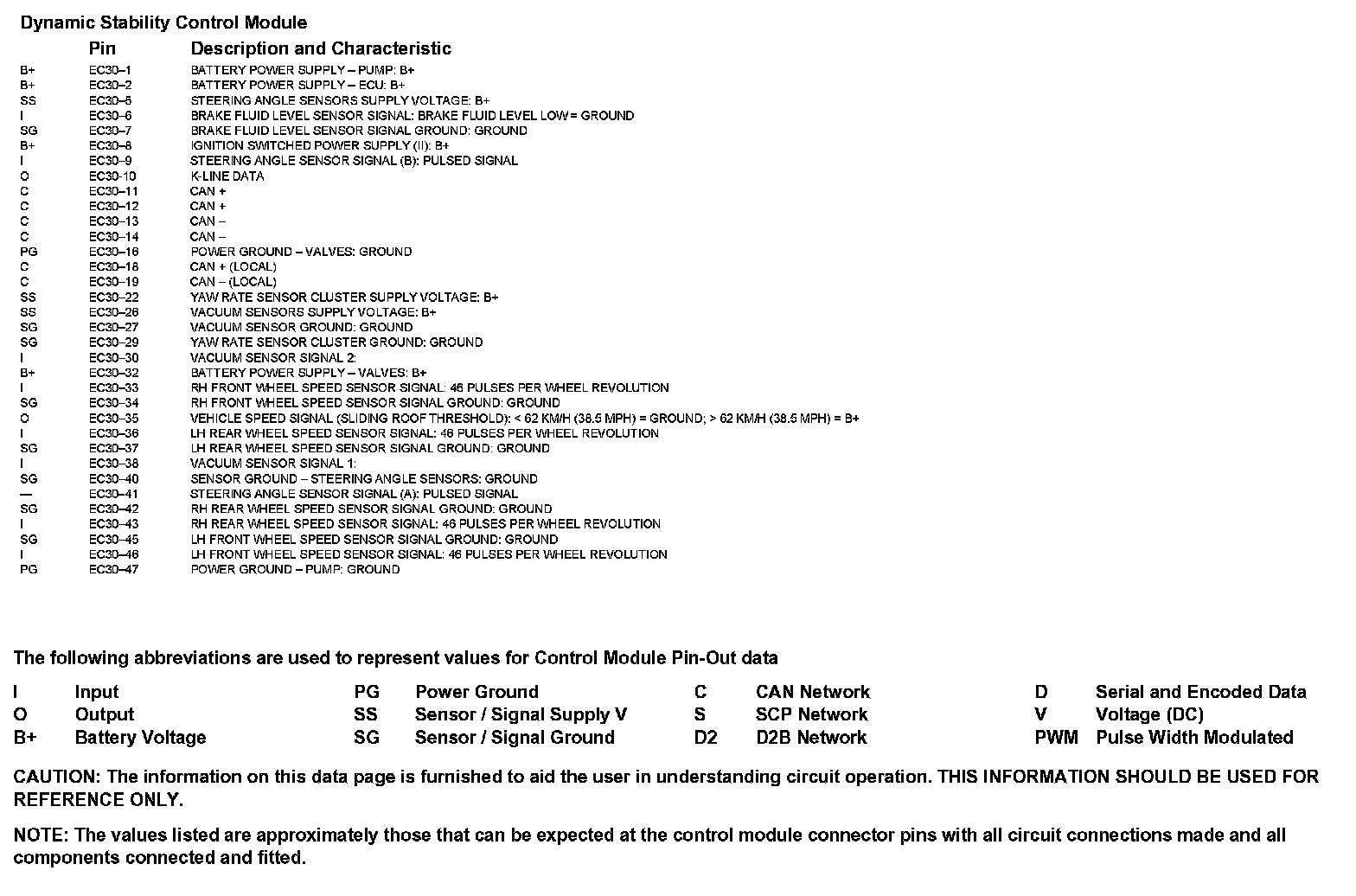

Diagram Data Sheet 05.1 (Part 1):

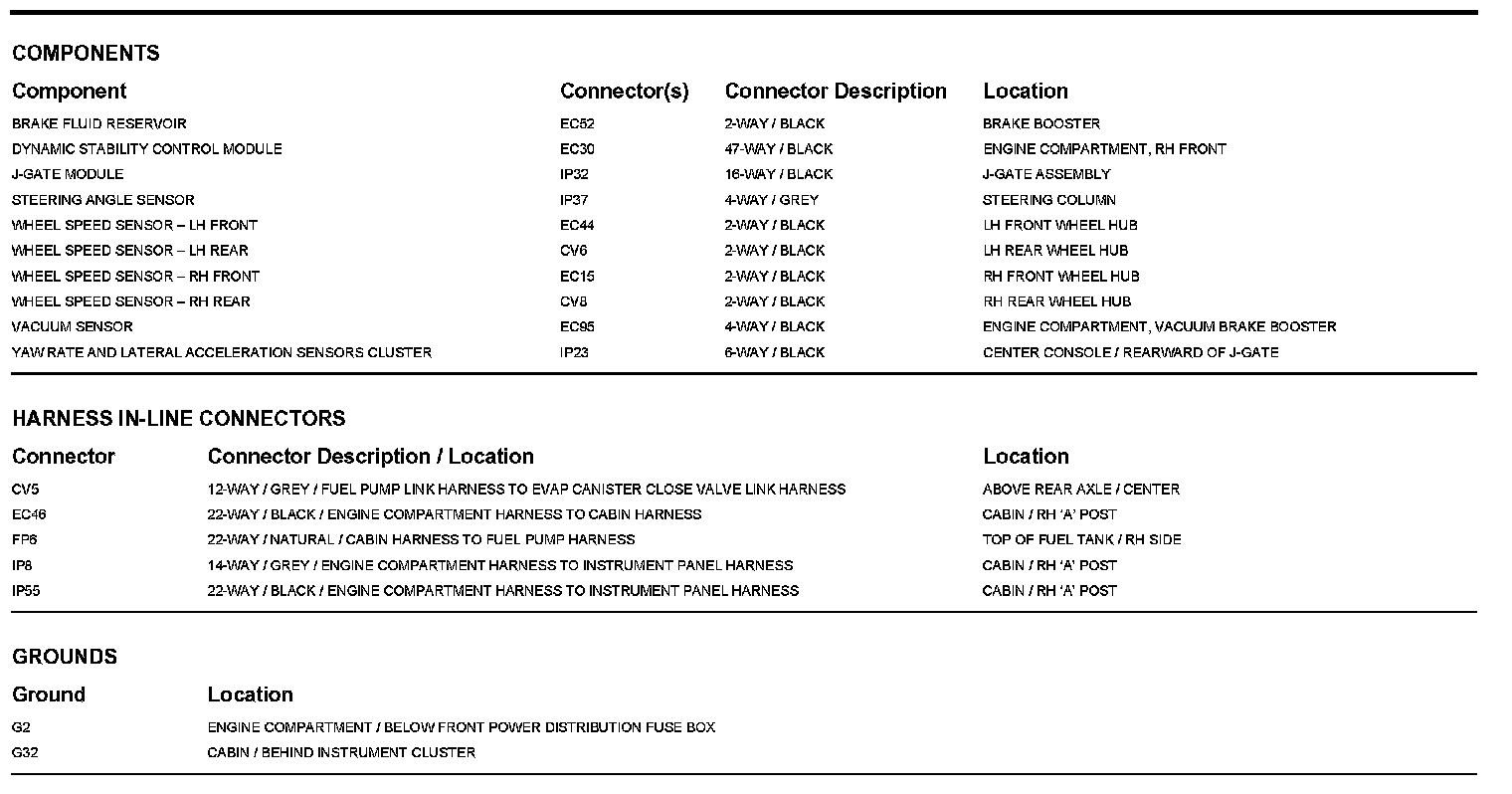

Diagram Data Sheet 05.1 (Part 2):
