Figure 05.2 (Electronic Parking Brake; Variable Assist Power Steering)



Electronic Parking Brake; Variable Assist Power Steering

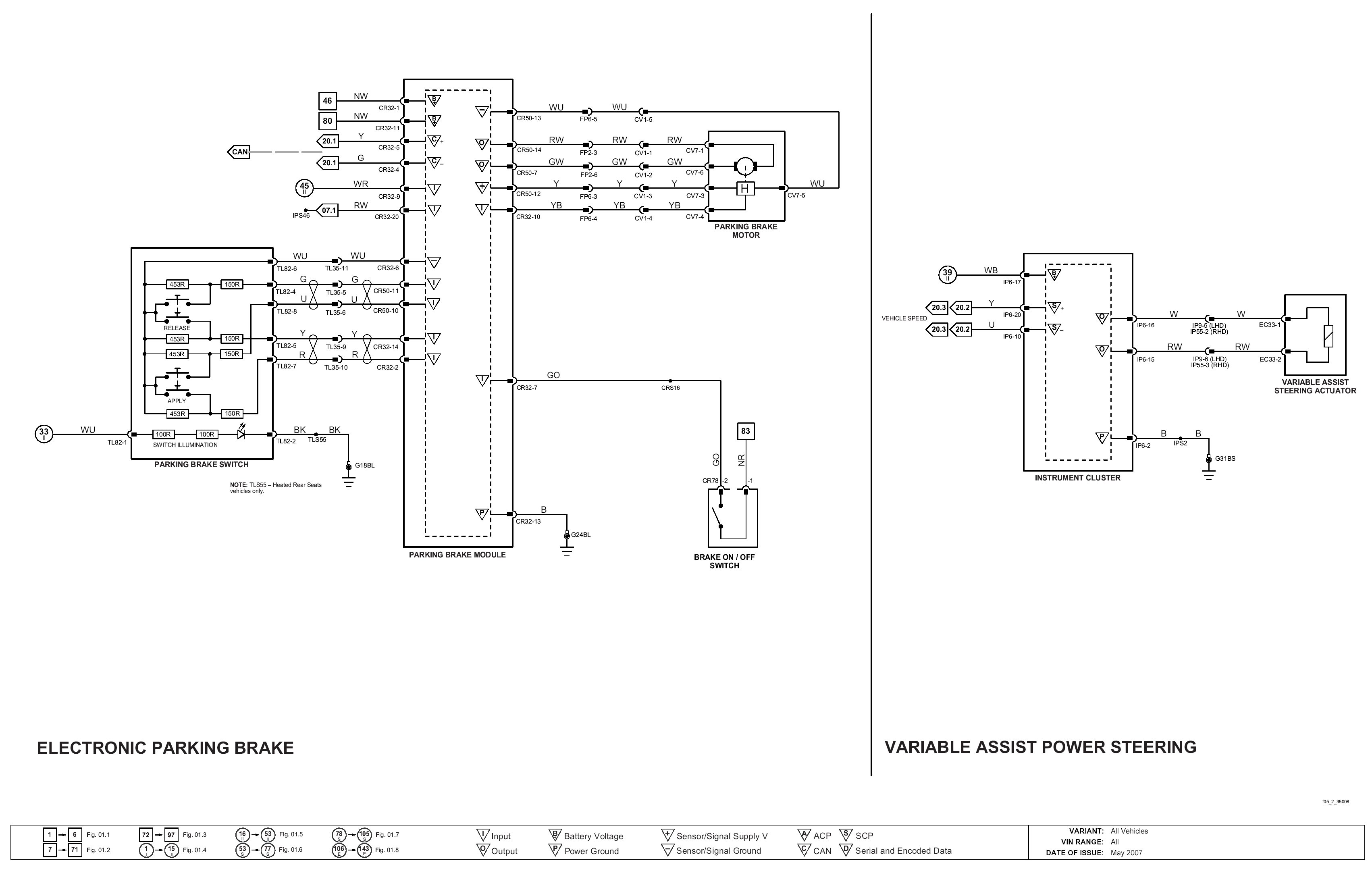

Diagram Figure 05.2:

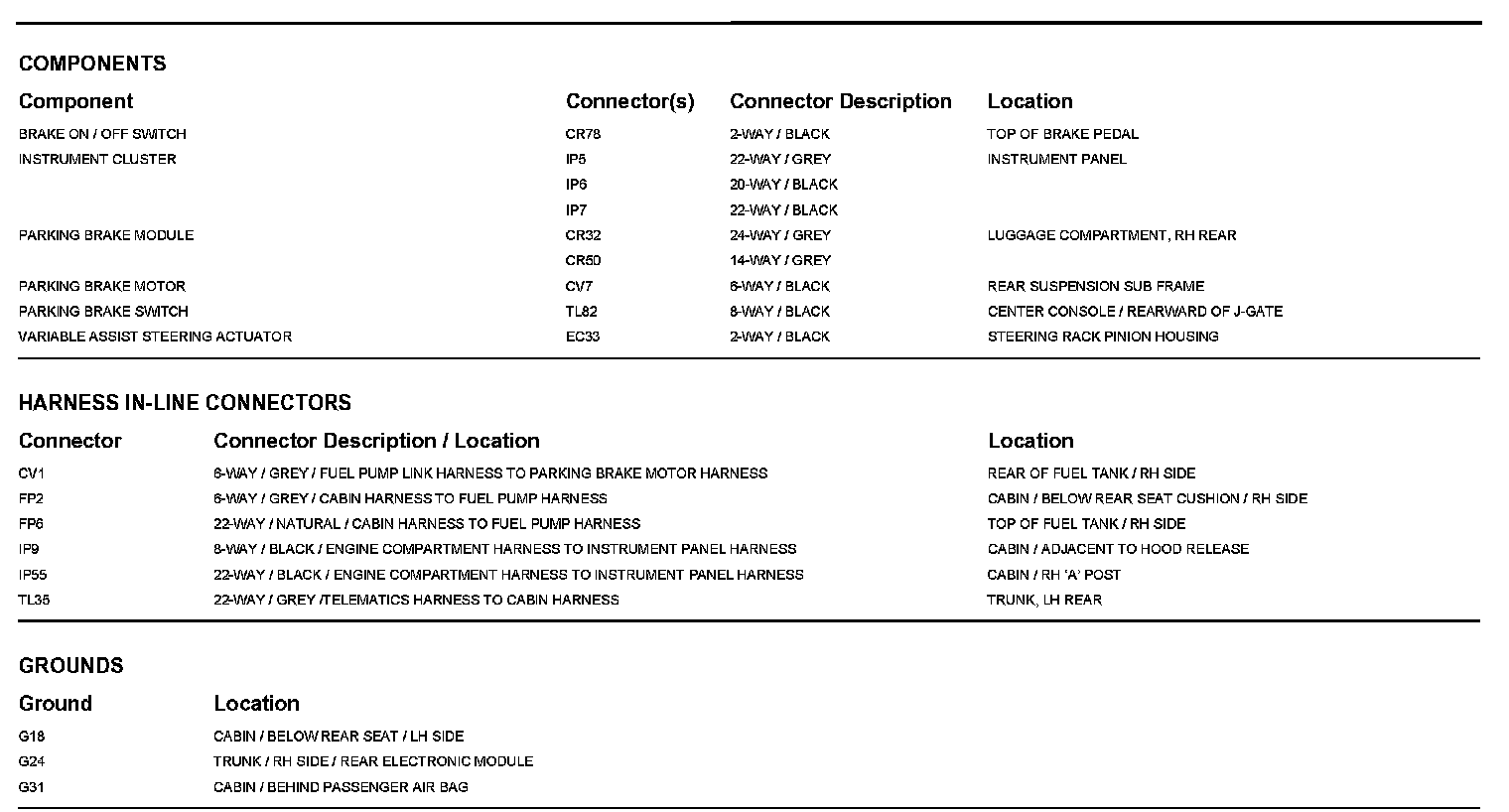

Diagram Data Sheet 05.2 (Part 1):

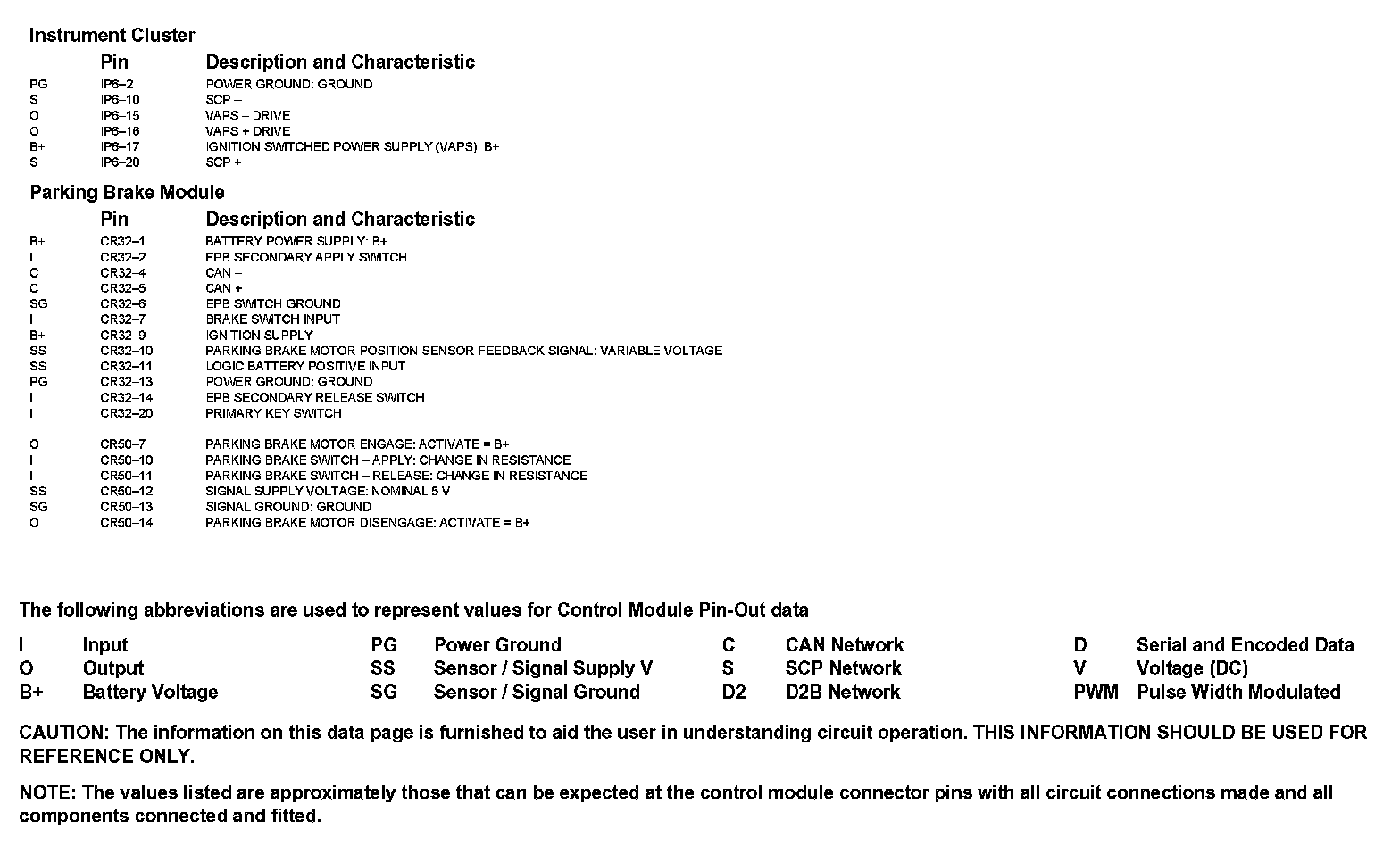

Diagram Data Sheet 05.2 (Part 2):
