XJ (X350) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Number
>>
Figure 11.10 (Climate Seats - LHD)
Figure 11.10 (Climate Seats - LHD)
Climate Seats - LHD

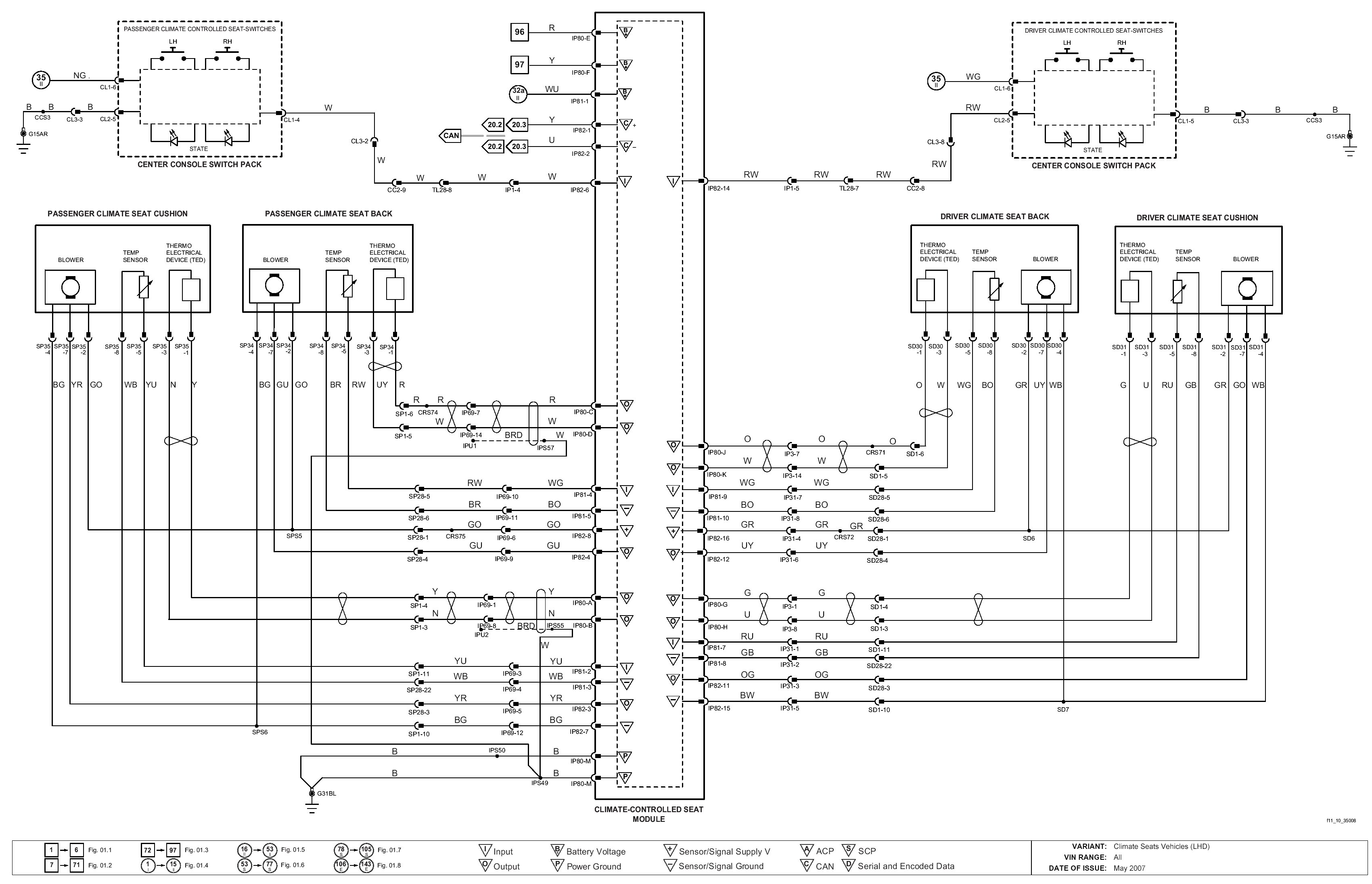

Diagram Figure 11.10:

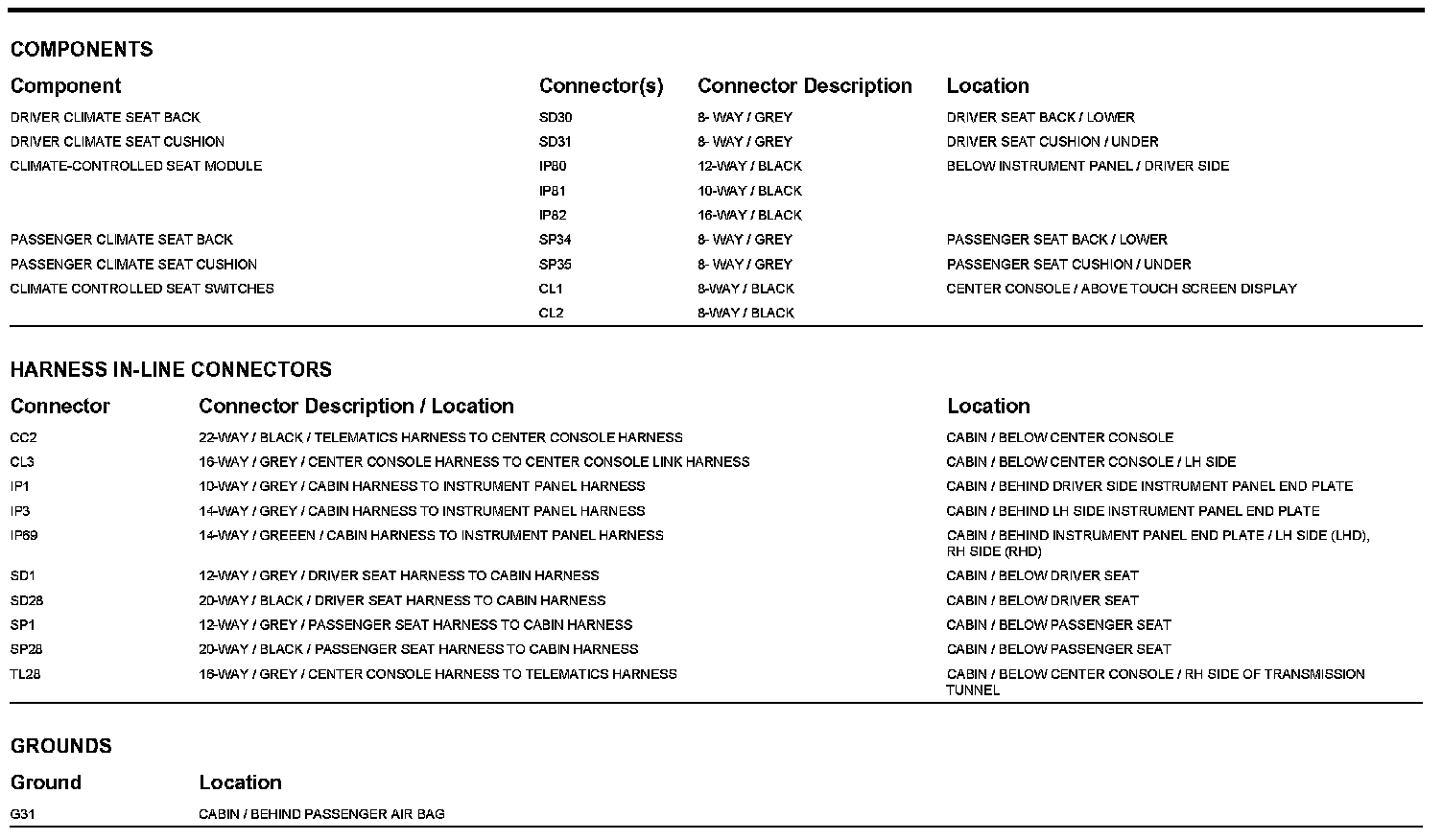

Diagram Data Sheet 11.10 (Part 1):
Diagram Data Sheet 11.10 (Part 2):
