Blower Motor: Service and Repair



Blower Motor

Removal
1. Disconnect the battery ground cable.
2. Remove the floor console.

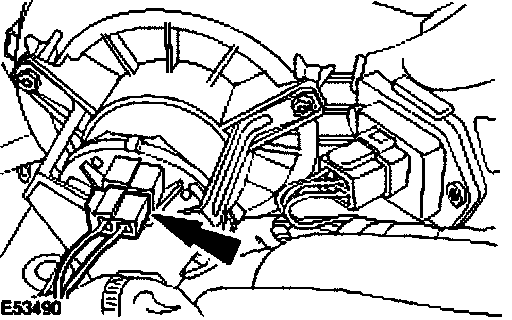

3. Disconnect the blower motor electrical connector.

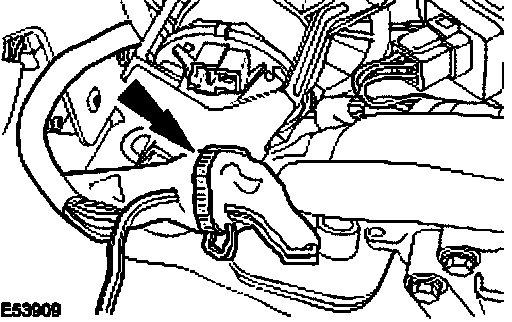

4. Detach the heater core and evaporator core housing wiring harness.







5. Detach the heater core and evaporator core housing electrical connector.

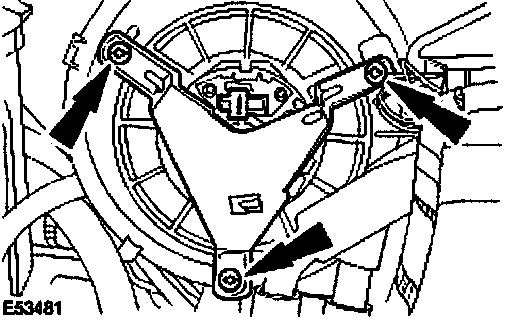

6. Remove the blower motor retaining bracket.
- Remove the blower motor retaining bracket securing screws.

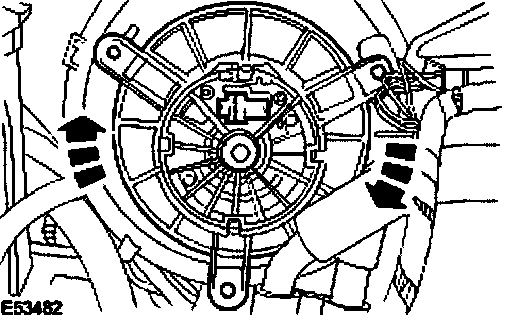

7. Remove the blower motor.
- To aid removal, turn the blower motor in a clockwise direction.







Installation
1. Install the blower motor.
- To aid installation turn the blower motor in a counter-clockwise direction.







2. Install the blower motor retaining bracket.
- Install the blower motor retaining bracket securing screws.







3. Attach the heater core and evaporator core housing electrical connector.







4. Attach the heater core and evaporator core housing wiring harness.







5. Connect the blower motor electrical connector.







6. Install the floor console.
7. Connect the battery ground cable.
