Multiple Junction Connector: Locations
Harness In-Line Connectors

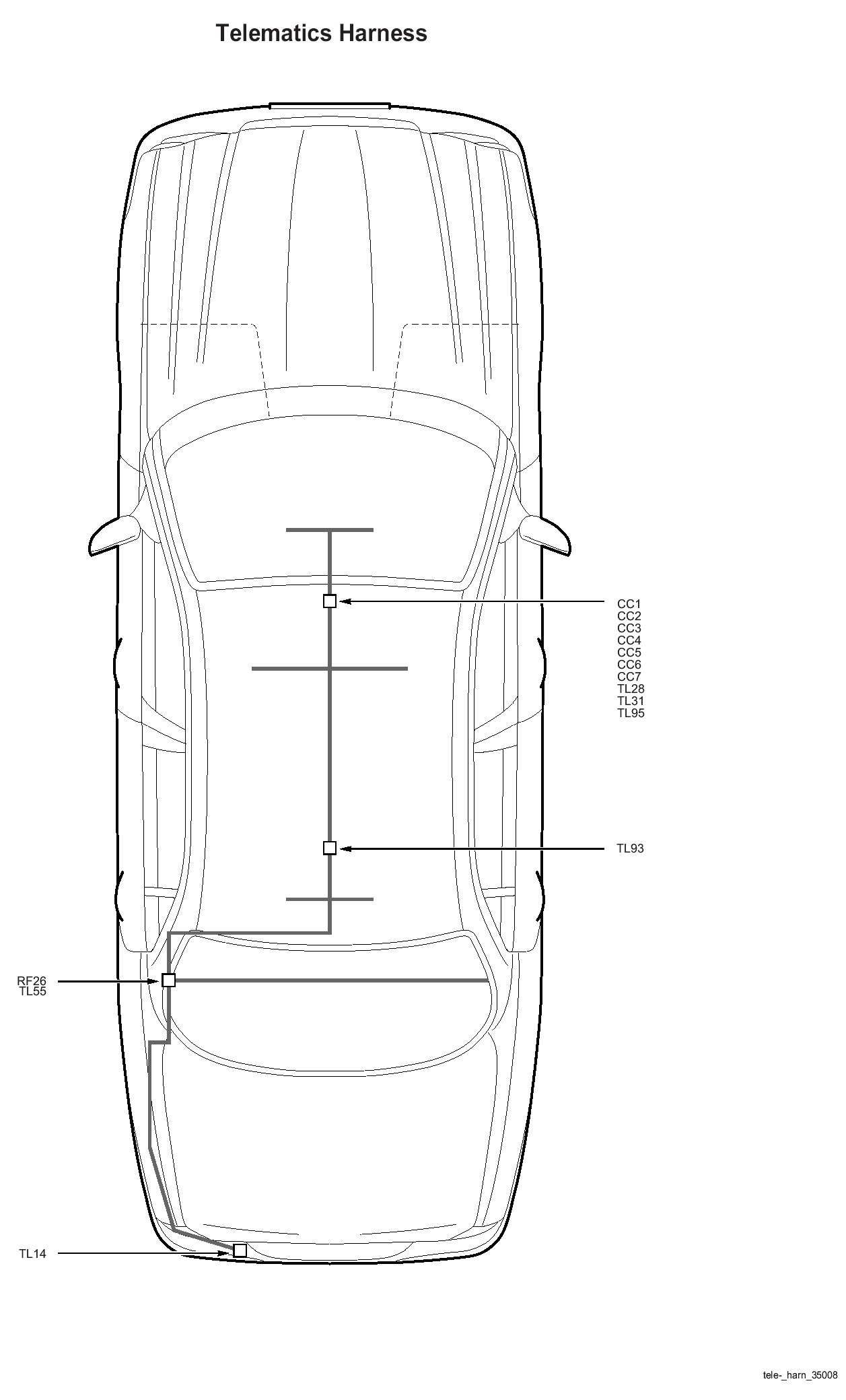

Harness In-Line Connectors:

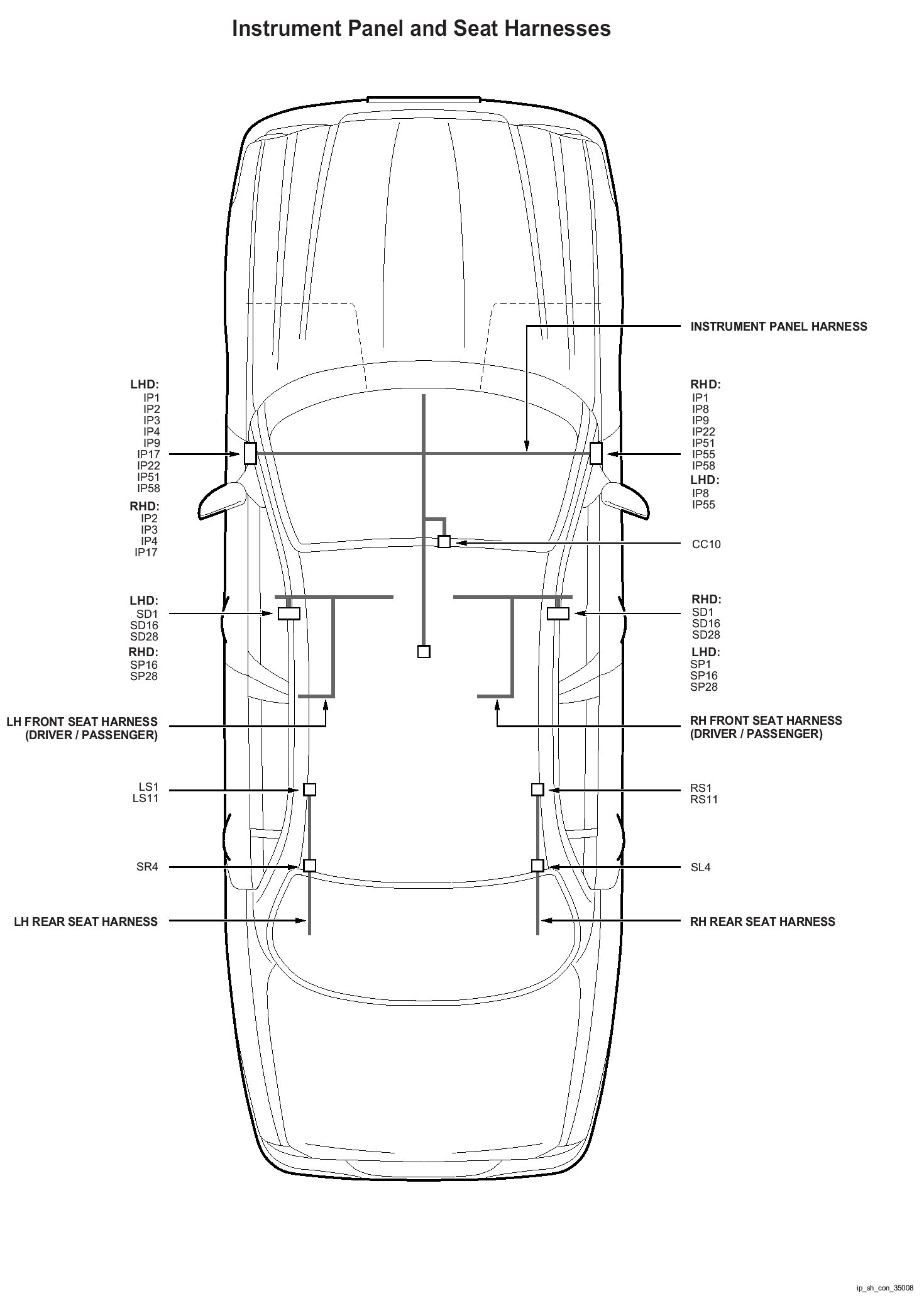

Harness In-Line Connectors:

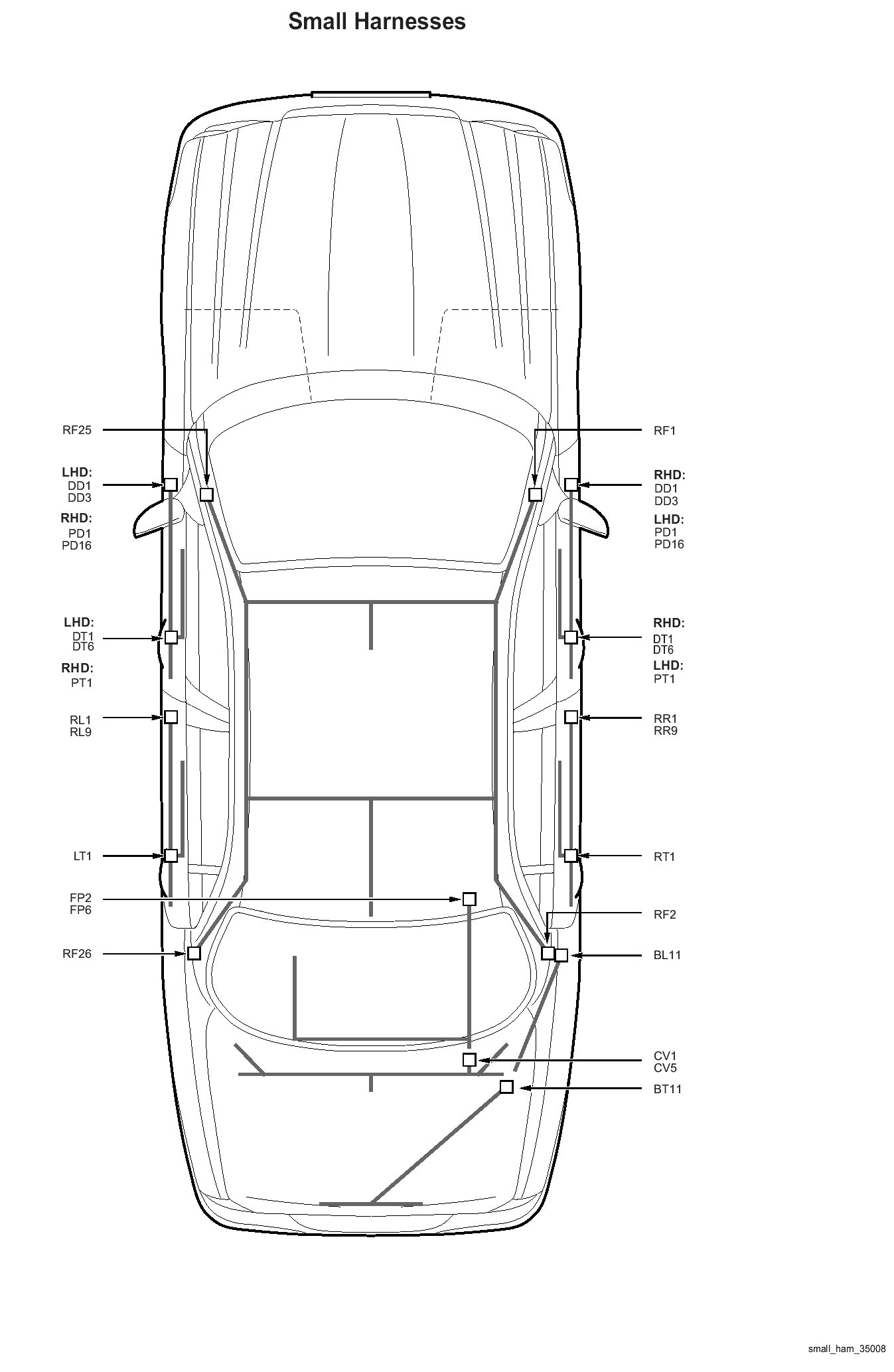

Harness In-Line Connectors:
