Luggage Compartment Lid Moulding

Luggage Compartment Lid Moulding

Removal

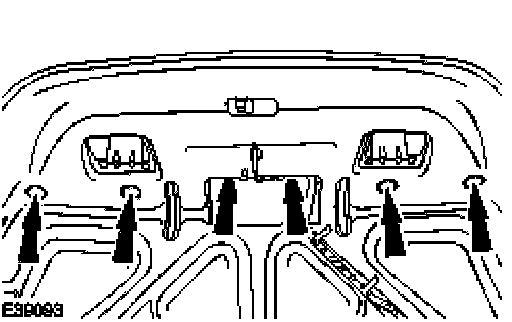

1. Remove the warning triangle.

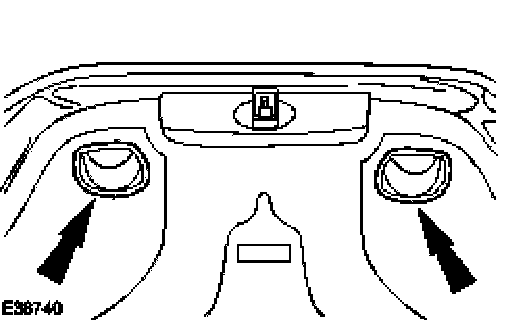

2. Remove the luggage compartment lid grab handles.

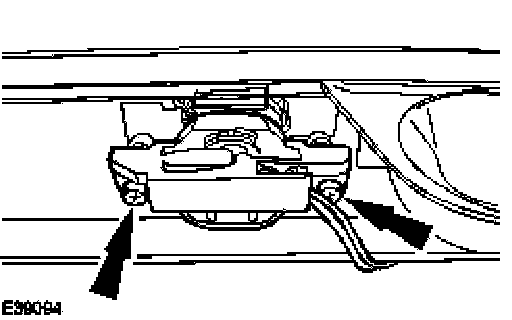

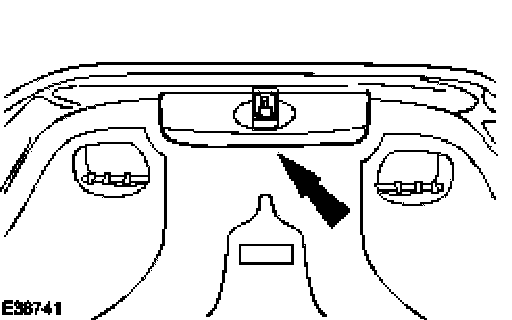

3. Remove the luggage compartment lid latch trim cover.

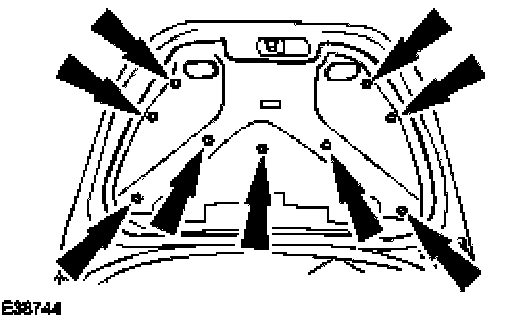

4. Remove the luggage compartment lid liner.
- Remove the courtesy lamp.







5. Detach the luggage compartment lid moulding.







6. Remove the luggage compartment lid moulding.

Installation







1. To install, reverse the removal procedure.
- Tighten to 2 Nm.
