Central Control Module
Central Control Module
Control Module
Pin Identification

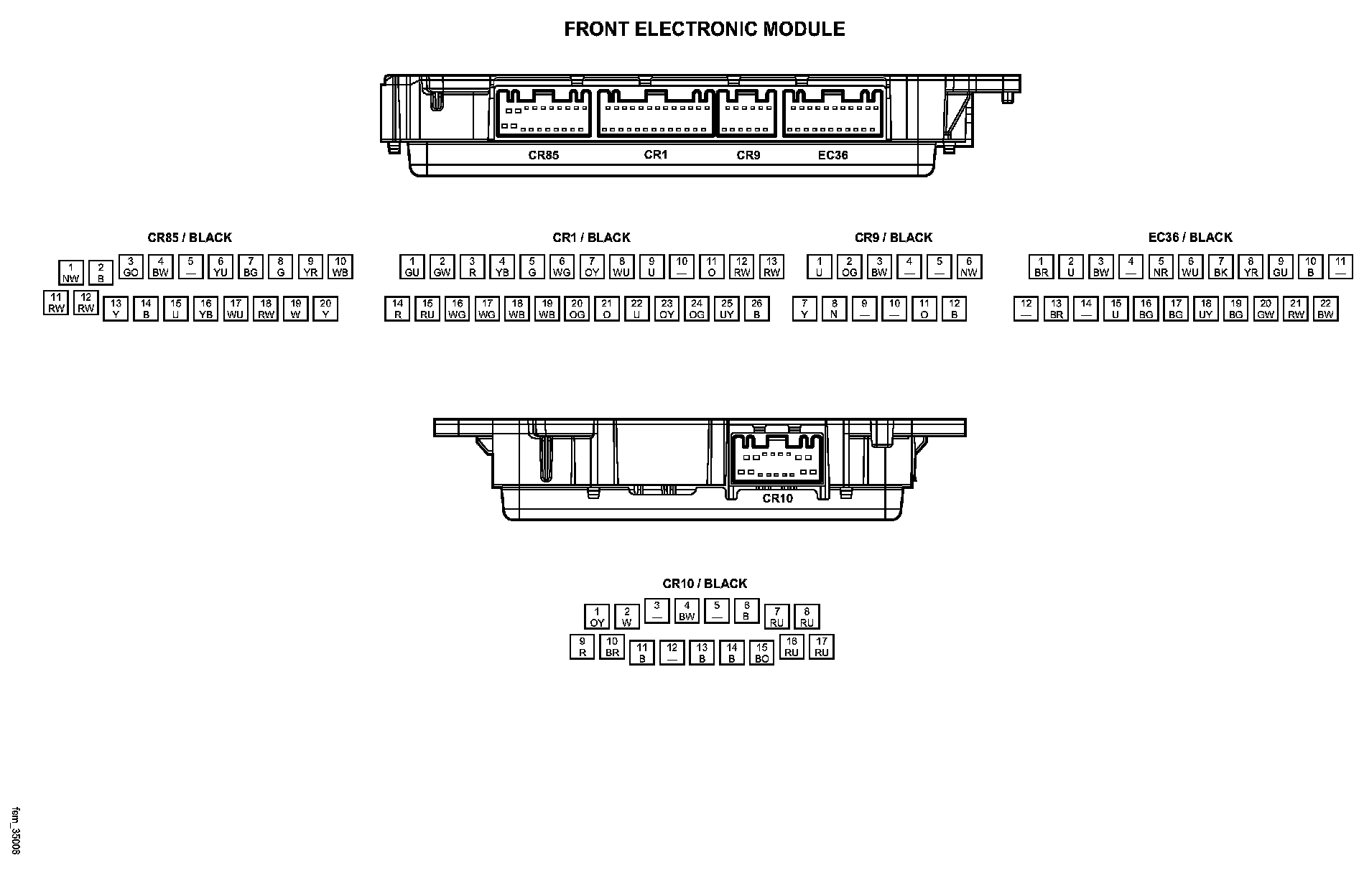

Front Electronic Module:

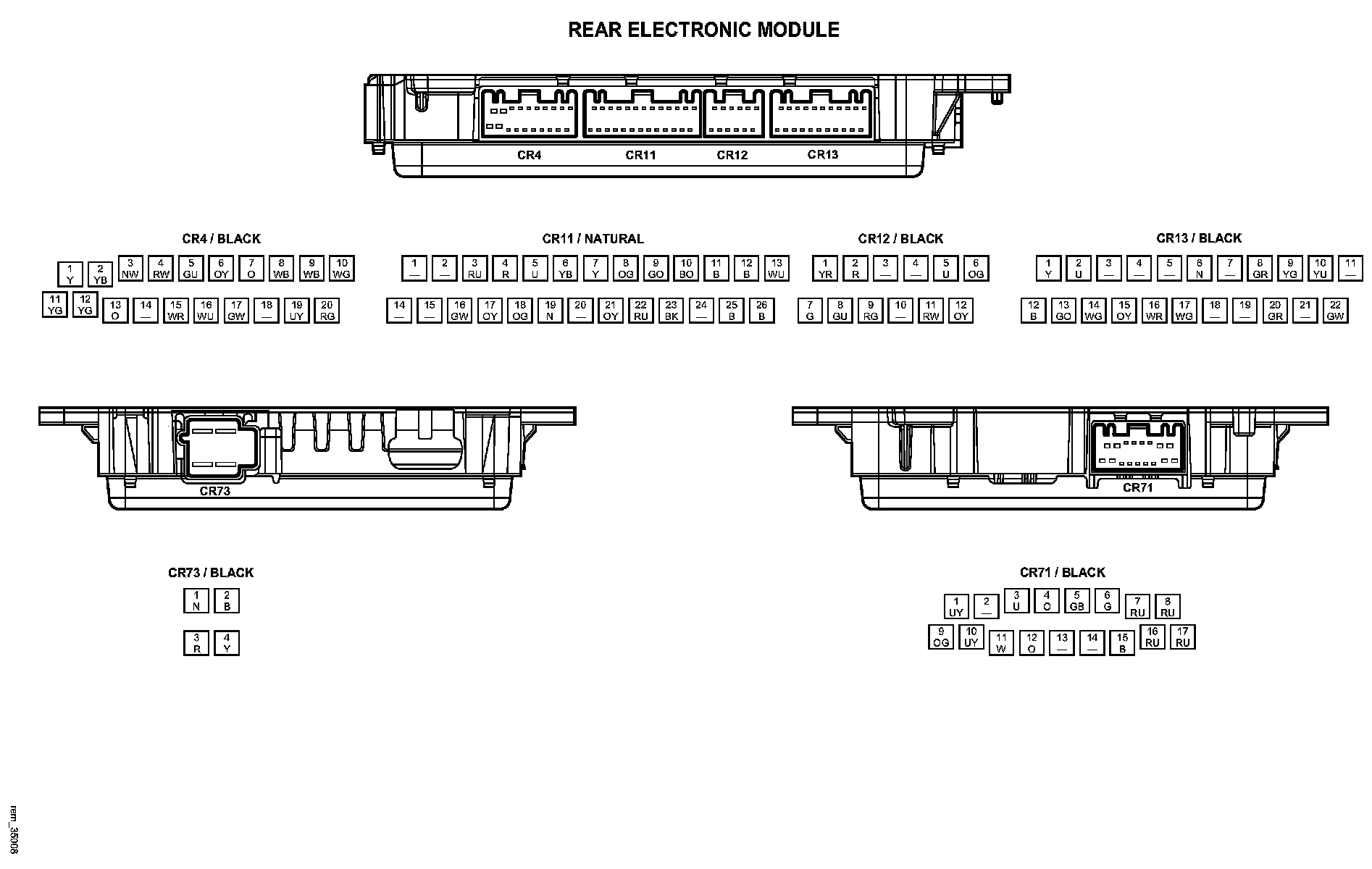

Rear Electronic Module:
