Figure 01.6 (Switched System Power Distribution: Part 1)
Figure 01.6 (Switched System Power Distribution: Part 1)
Switched System Power Distribution: Part 1

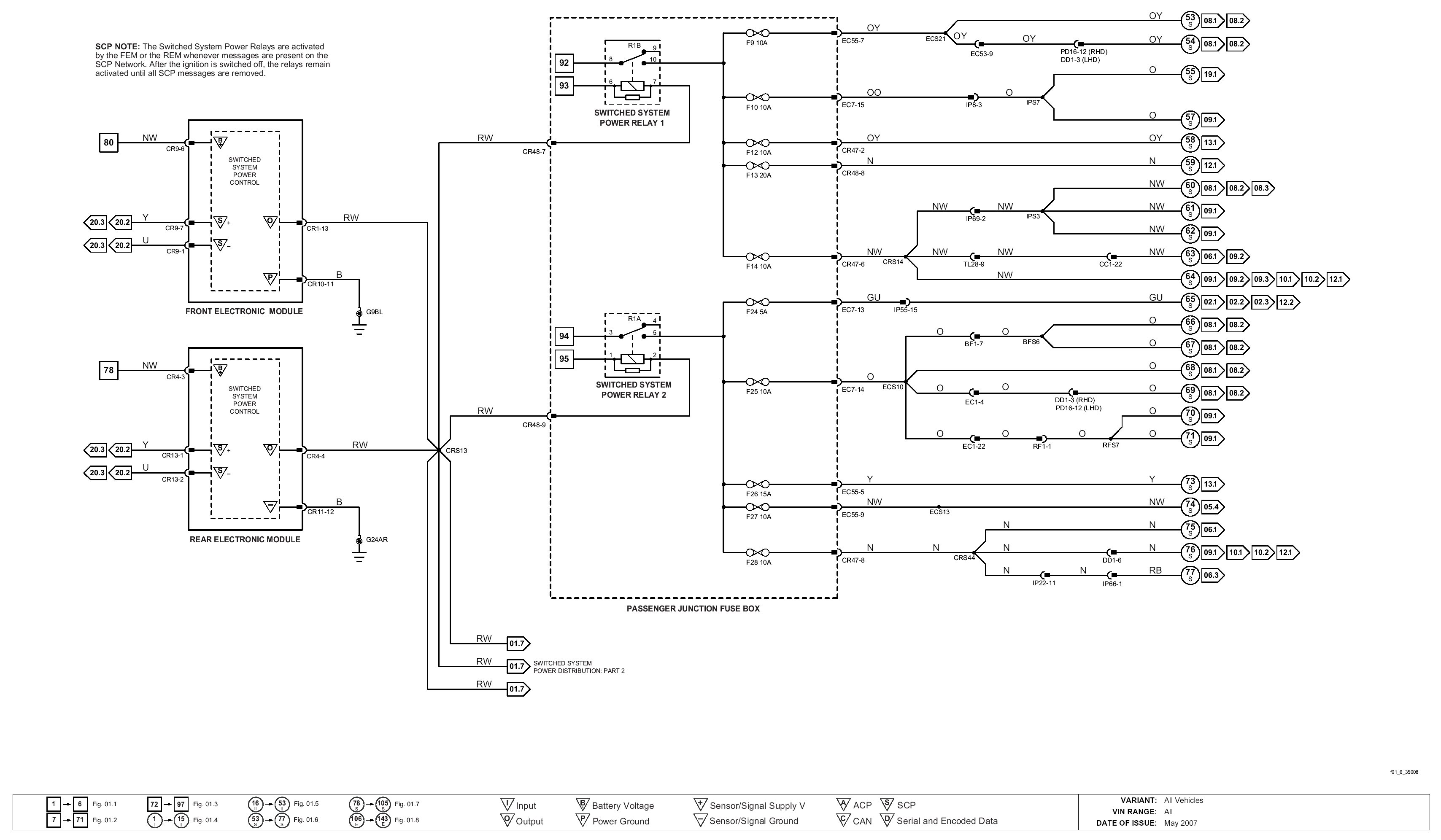

Diagram Figure 01.6:

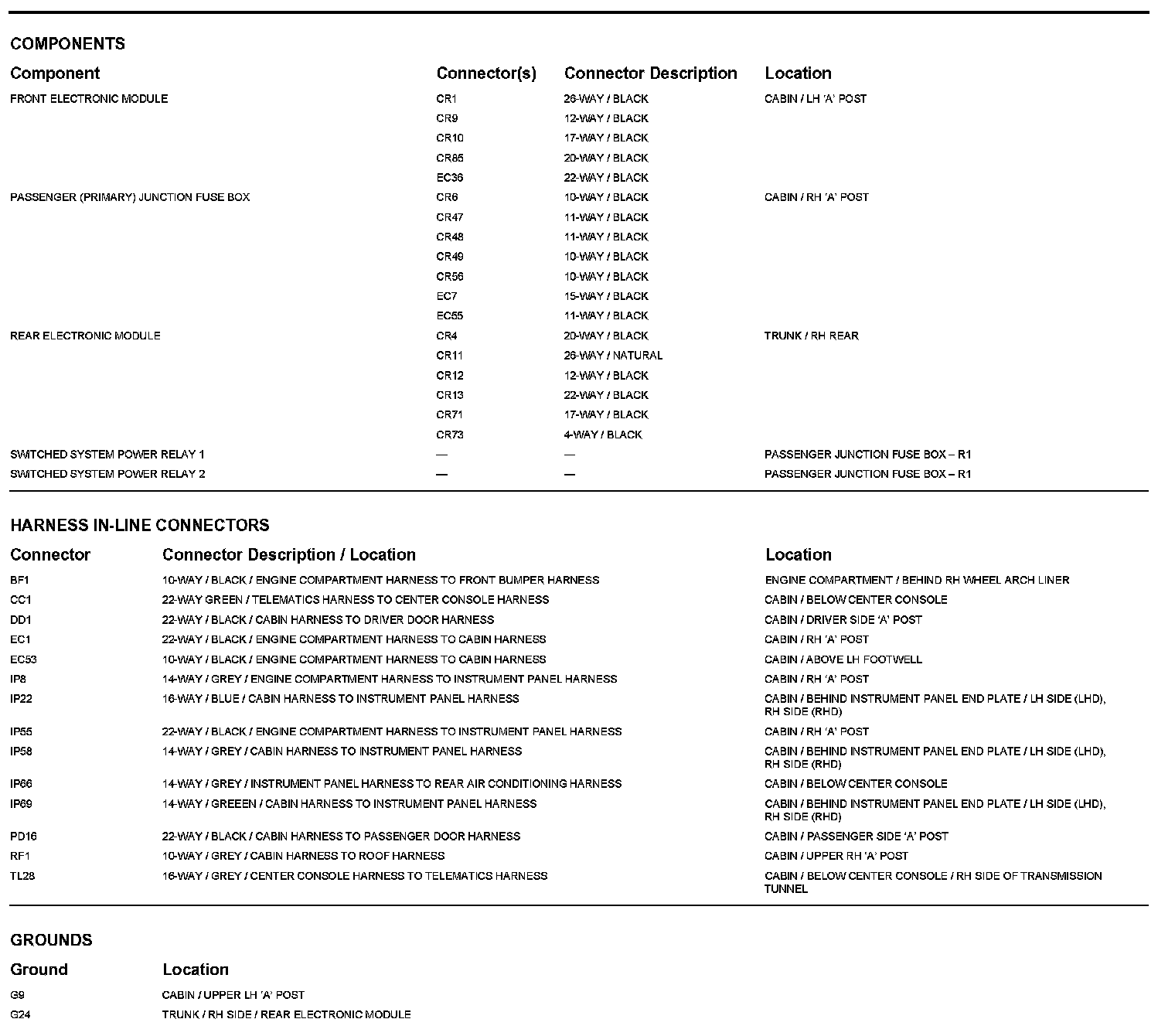

Diagram Data Sheet 01.6:
