Figure 03.3 (Engine Management: V8 N/A - Part 1)

Engine Management: V8 N/A - Part 1

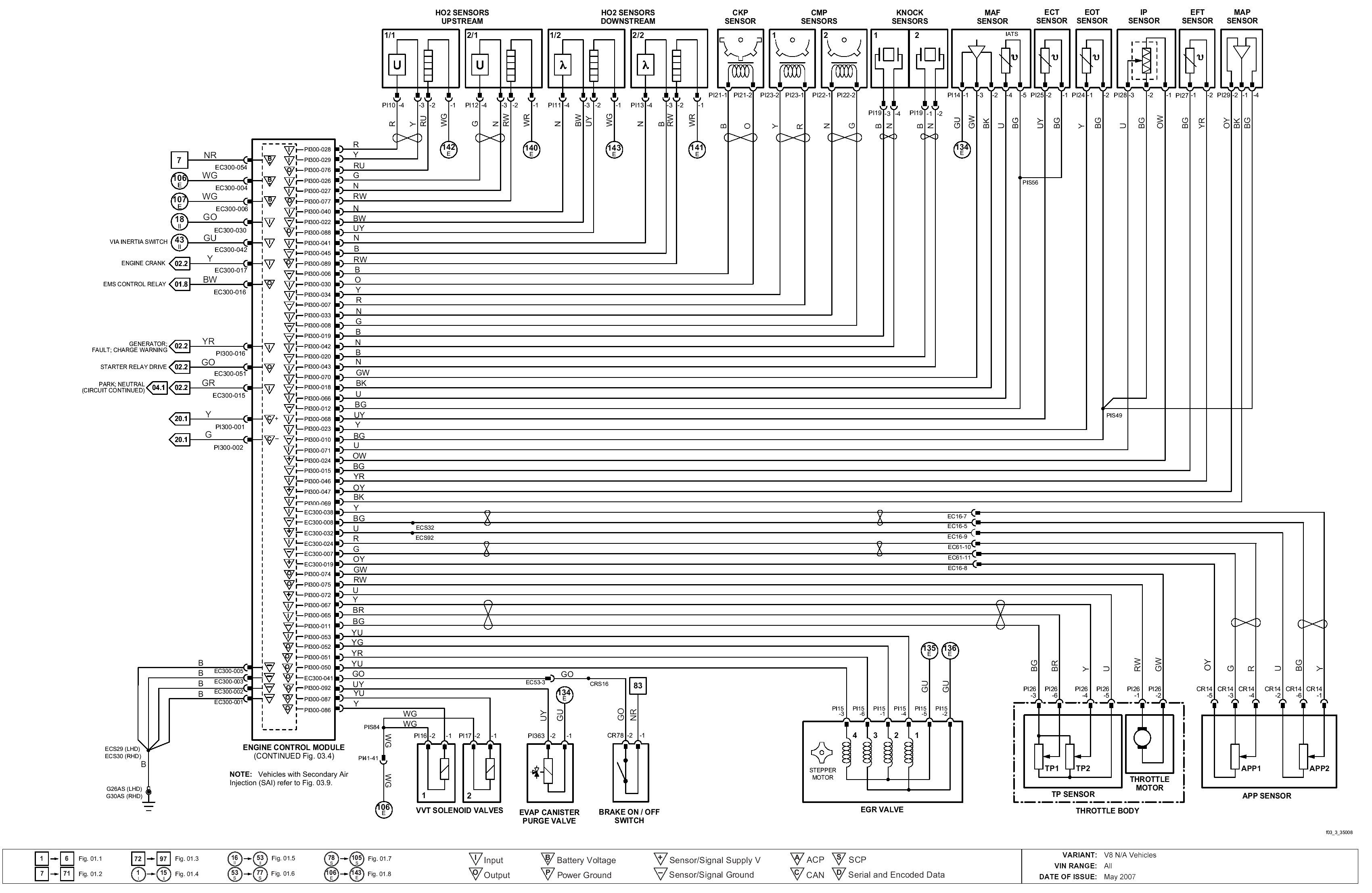

Diagram Figure 03.3:

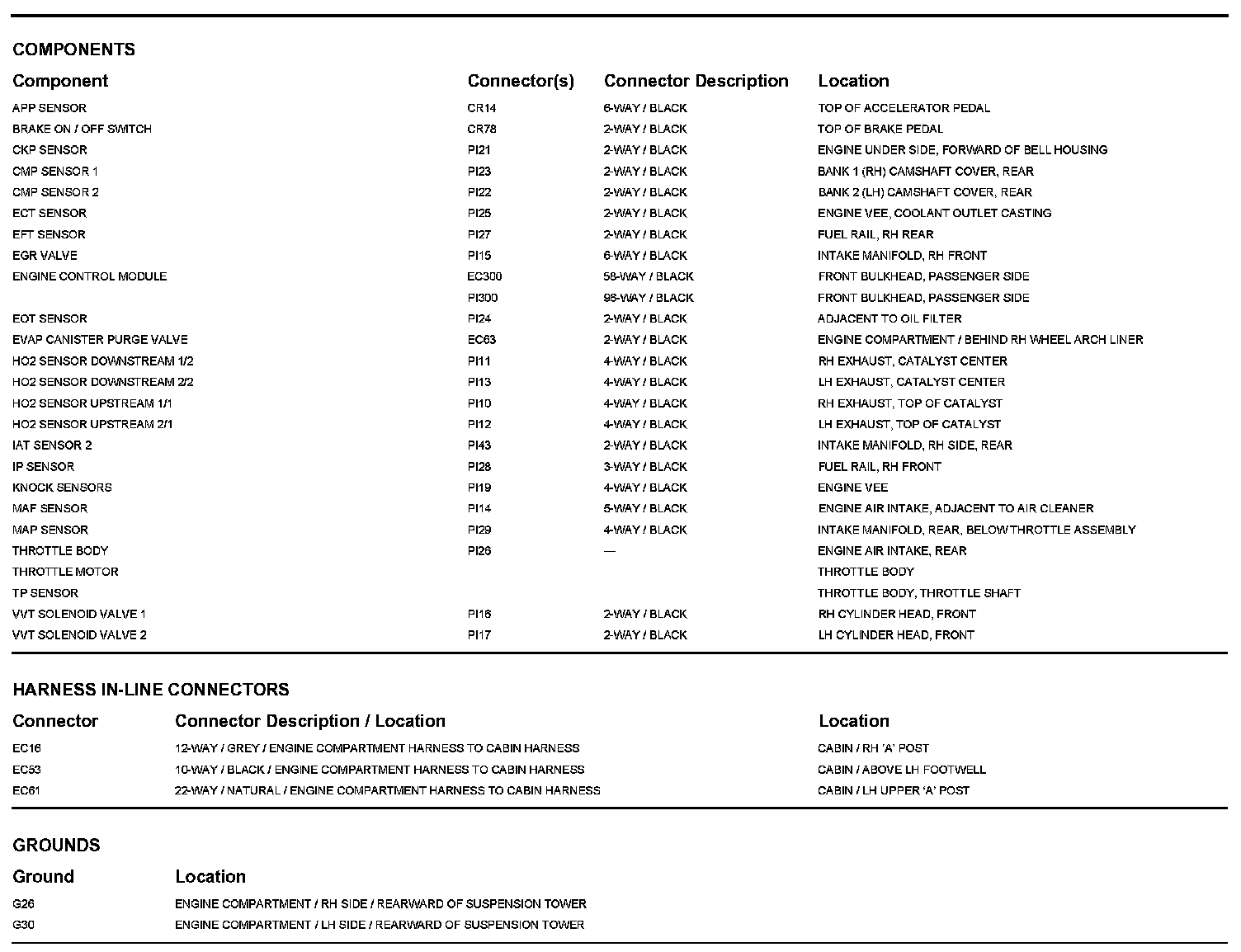

Diagram Data Sheet 03.3 (Part 1):

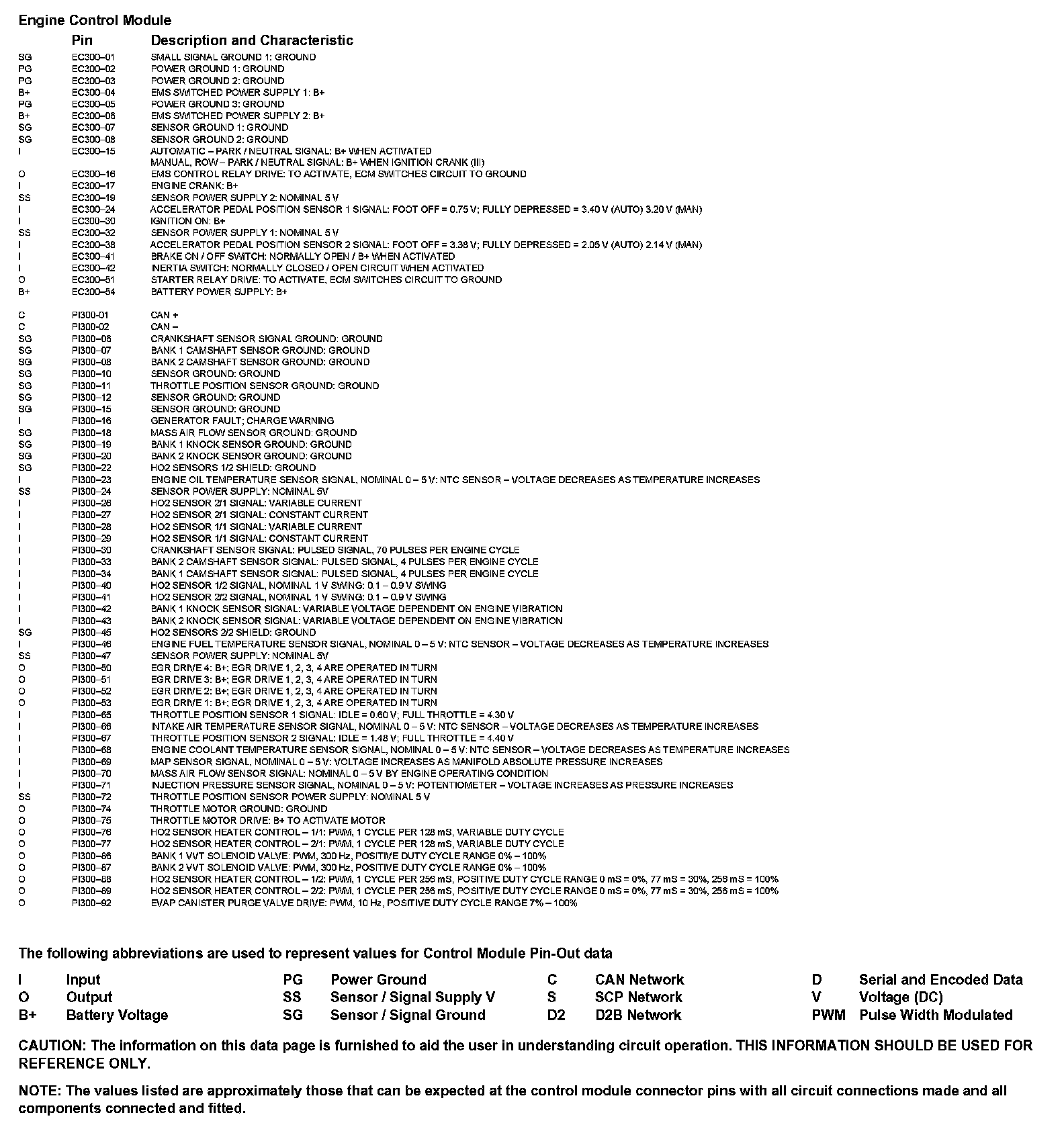

Diagram Data Sheet 03.3 (Part 2):
