Figure 04.1 (Transmission (Automatic))
Figure 04.1 (Transmission (Automatic))
Transmission (Automatic)

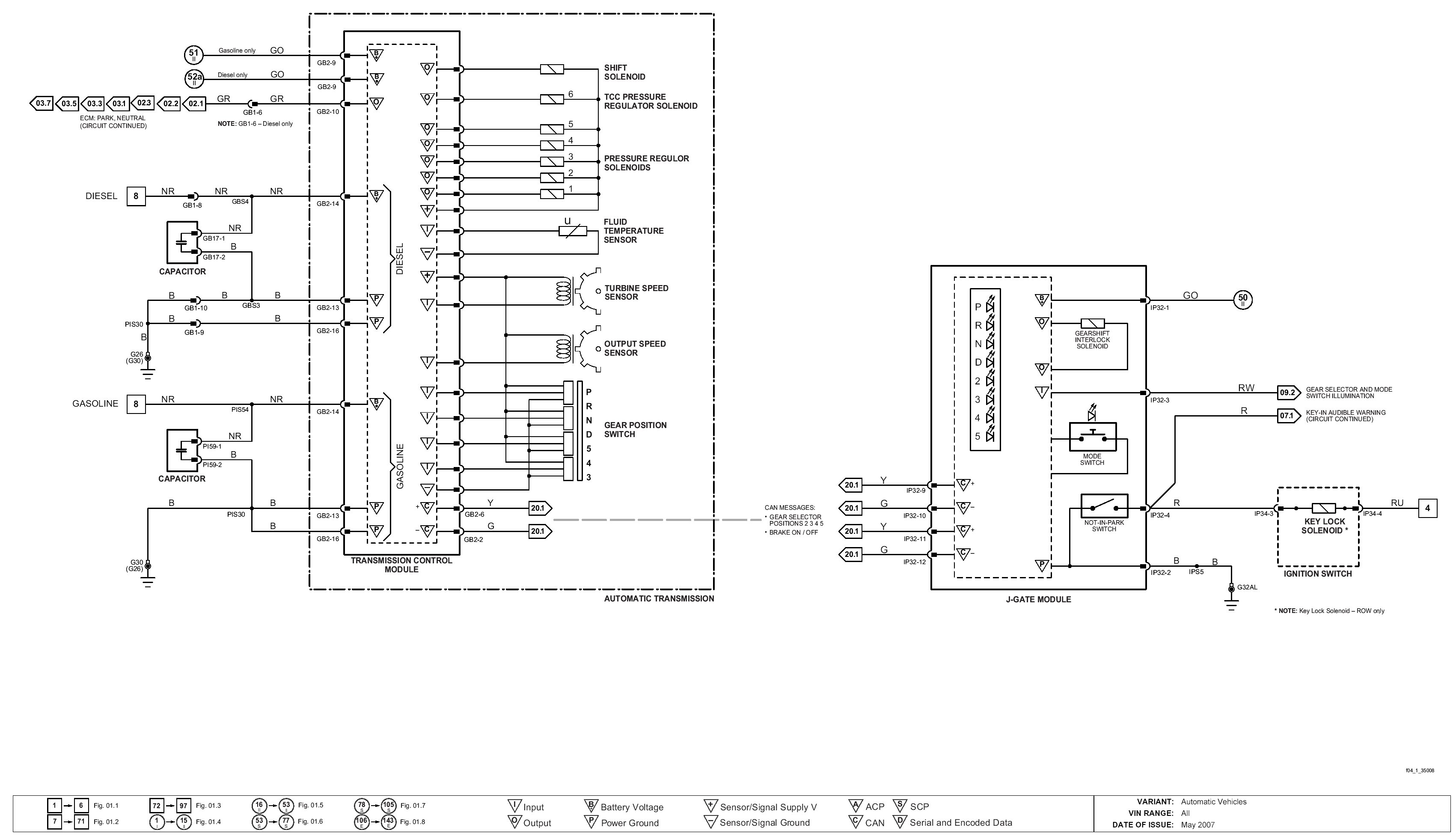

Diagram Figure 04.1:

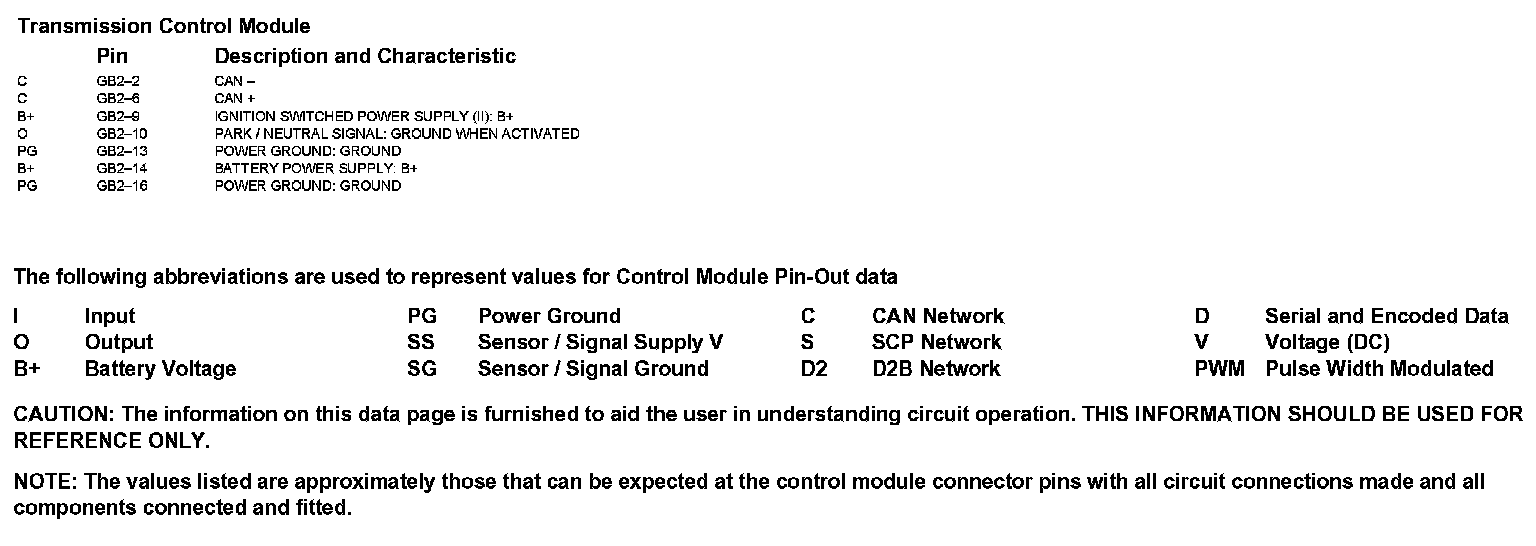

Diagram Data Sheet 04.1 (Part 1):

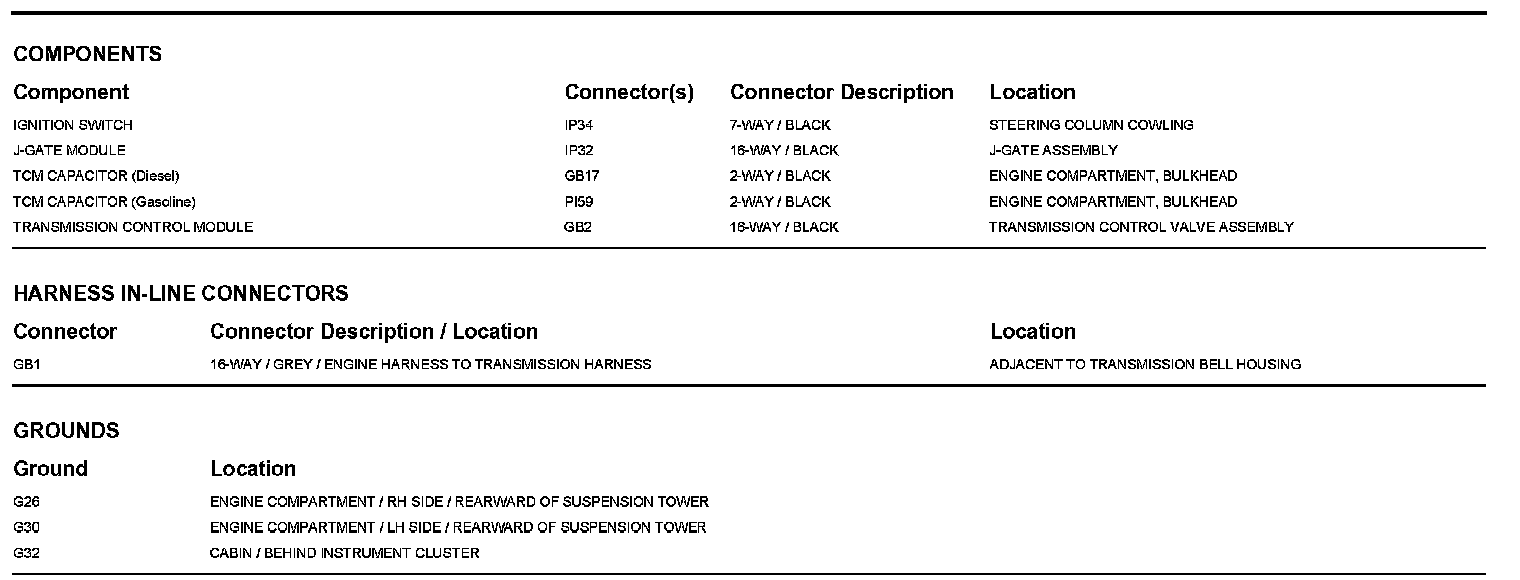

Diagram Data Sheet 04.1 (Part 2):
