Figure 06.1 (Climate Control: Part 1)
Figure 06.1 (Climate Control: Part 1)
Climate Control: Part 1

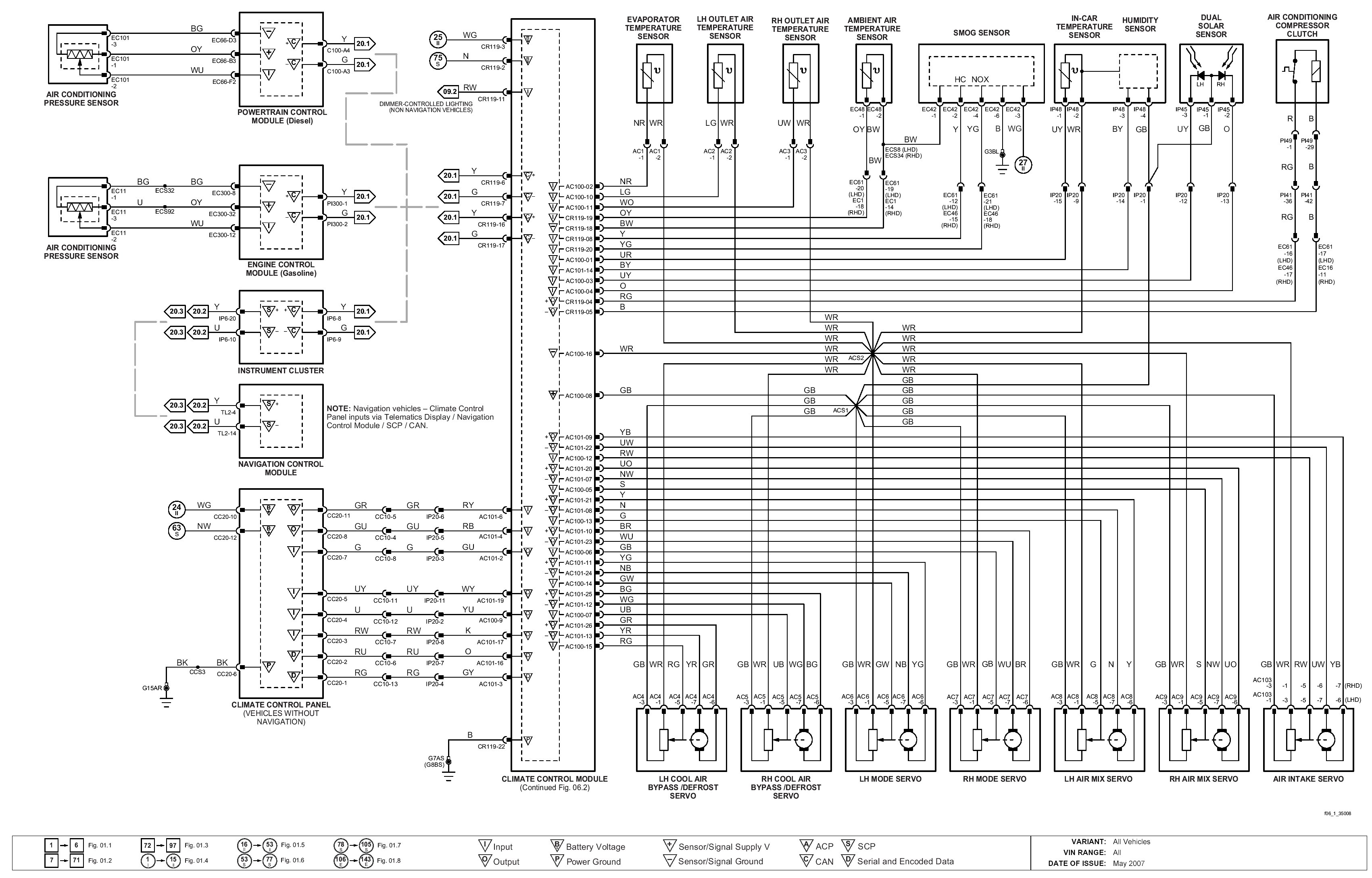

Diagram Figure 06.1:

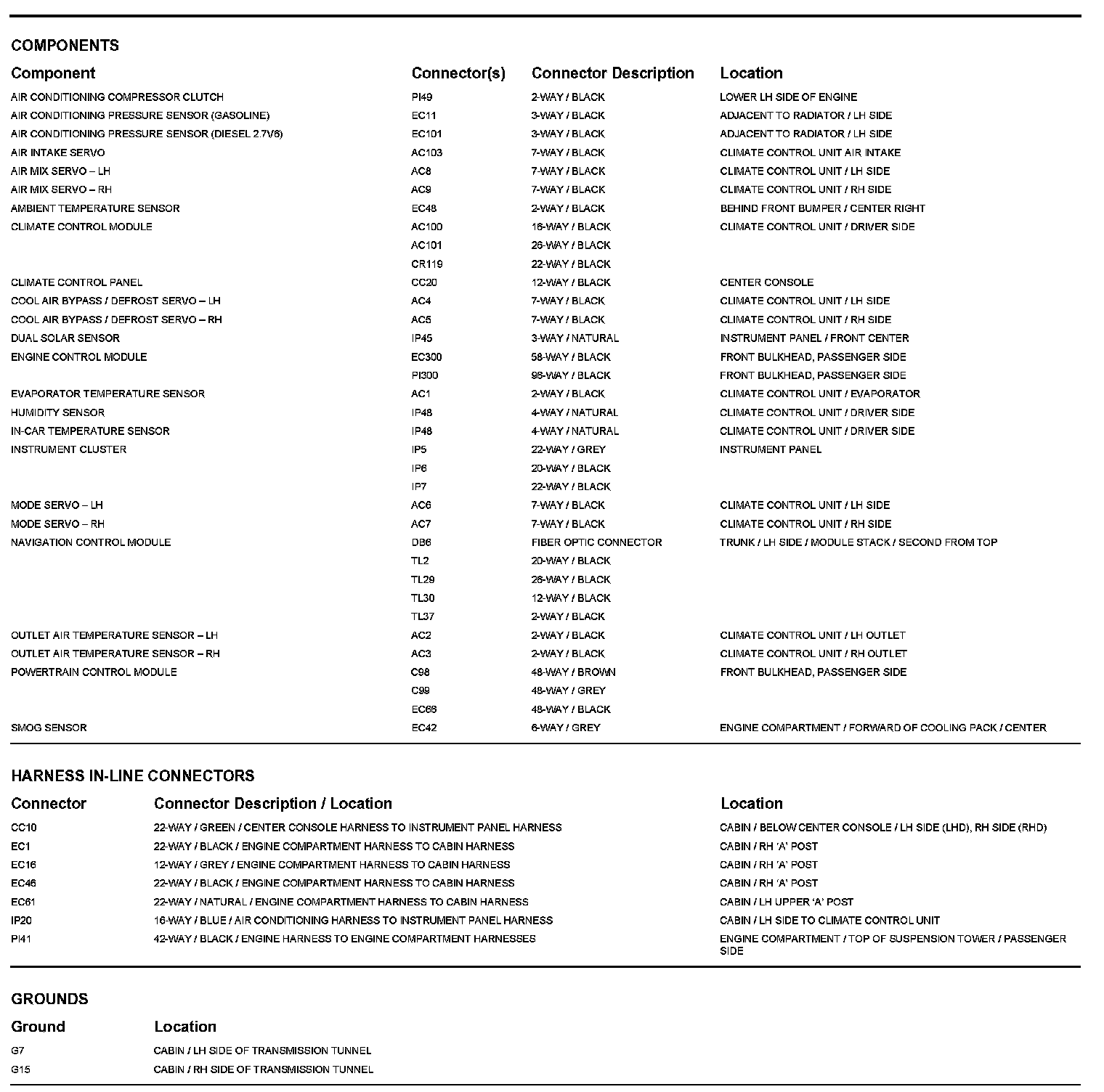

Diagram Data Sheet 06.1 (Part 1):
Diagram Data Sheet 06.1 (Part 2):
