Figure 07.1 (Instrument Cluster)
Figure 07.1 (Instrument Cluster)
Instrument Cluster
Diagram Figure 07.1:

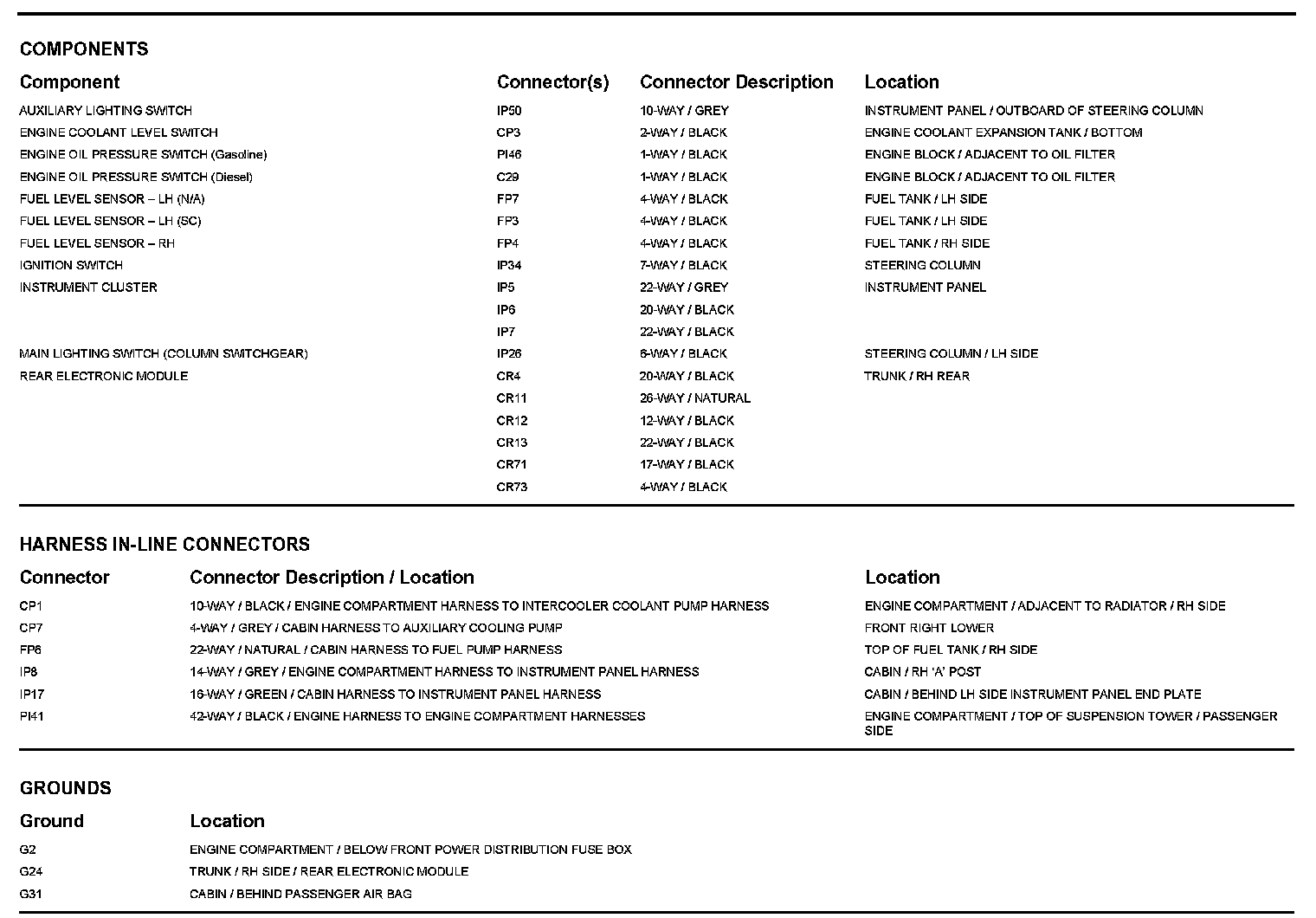

Diagram Data Sheet 07.1 (Part 1):

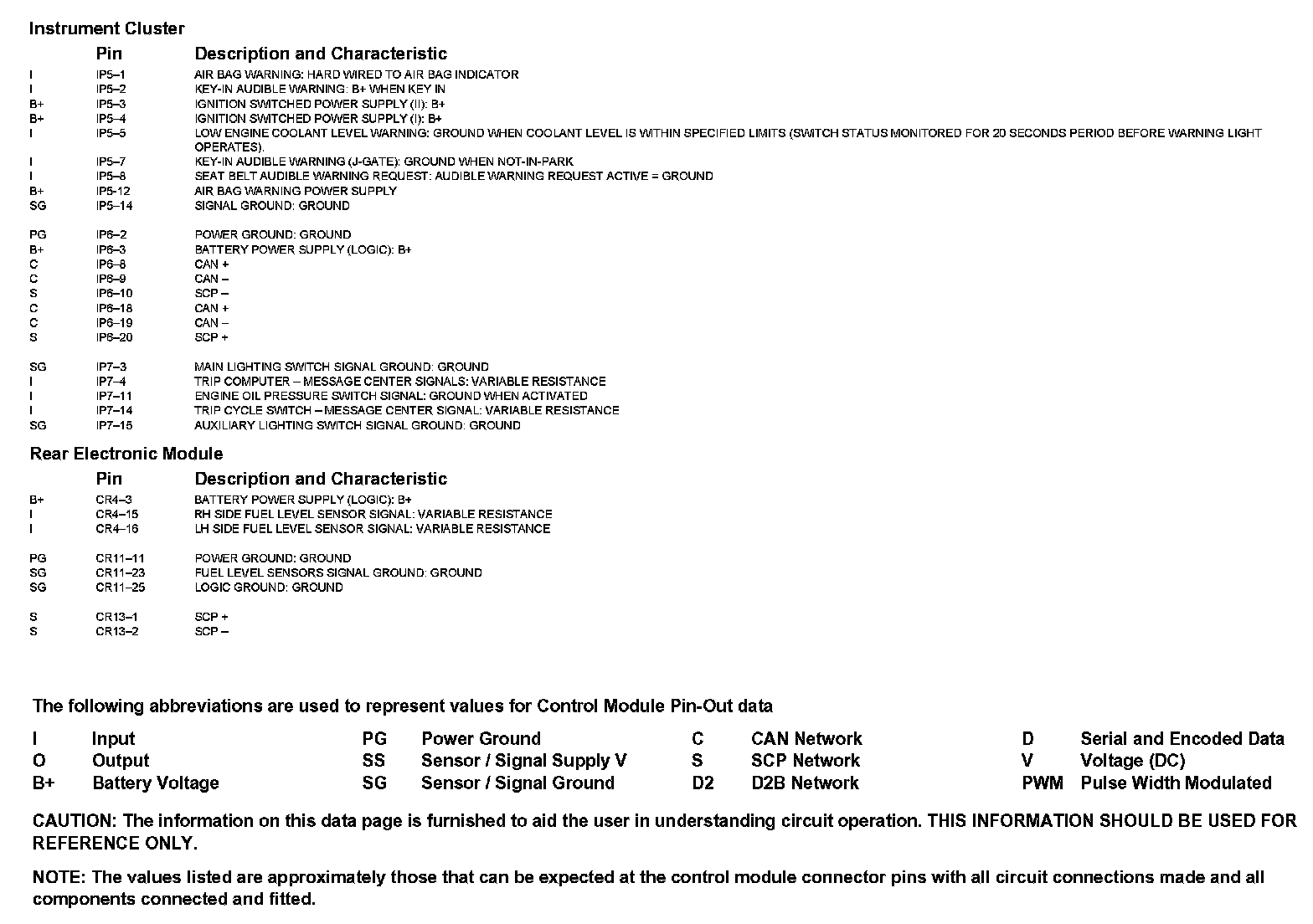

Diagram Data Sheet 07.1 (Part 2):
