Jaguar
>>
2009
>>
XJ (X350) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Number
>>
Figure 09.2 (Dimmer-Controlled Lighting: Part 1)
Figure 09.2 (Dimmer-Controlled Lighting: Part 1)
Dimmer-Controlled Lighting: Part 1

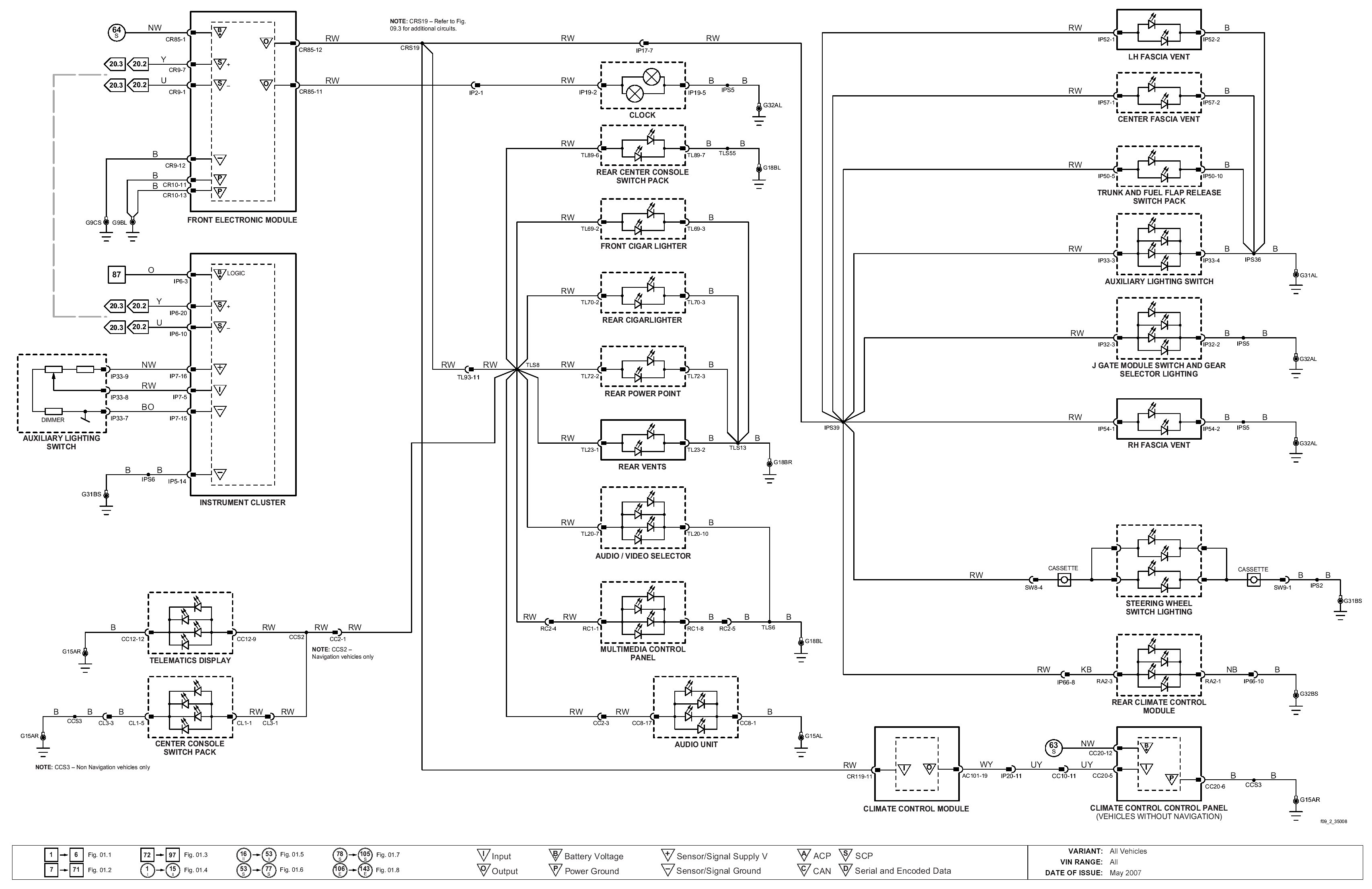

Diagram Figure 09.2:

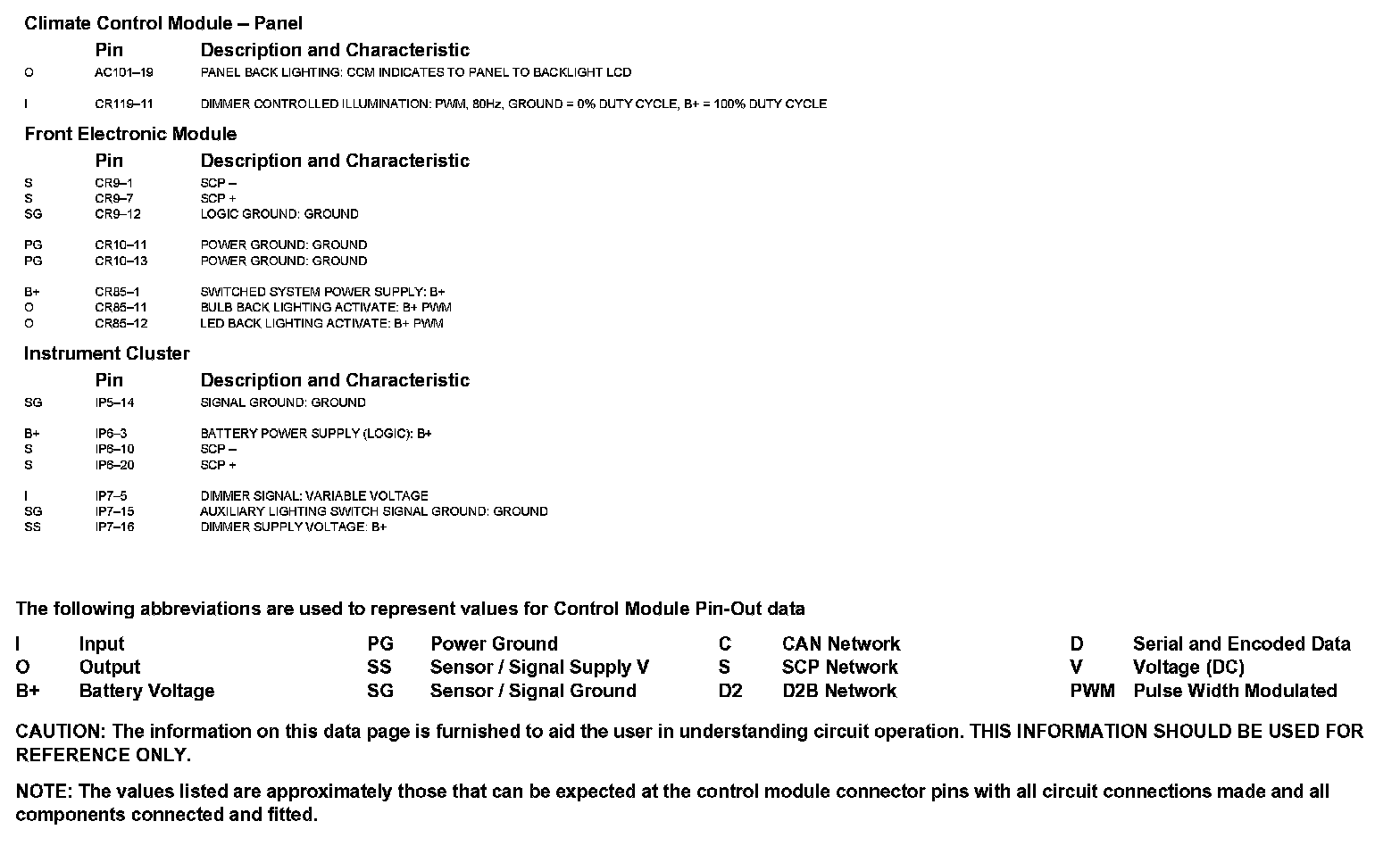

Diagram Data Sheet 09.2 (Part 1):
Diagram Data Sheet 09.2 (Part 2):
