Figure 11.3 (Passenger Seat: 12-Way Movement)
Figure 11.3 (Passenger Seat: 12-Way Movement)
Passenger Seat: 12-way Movement

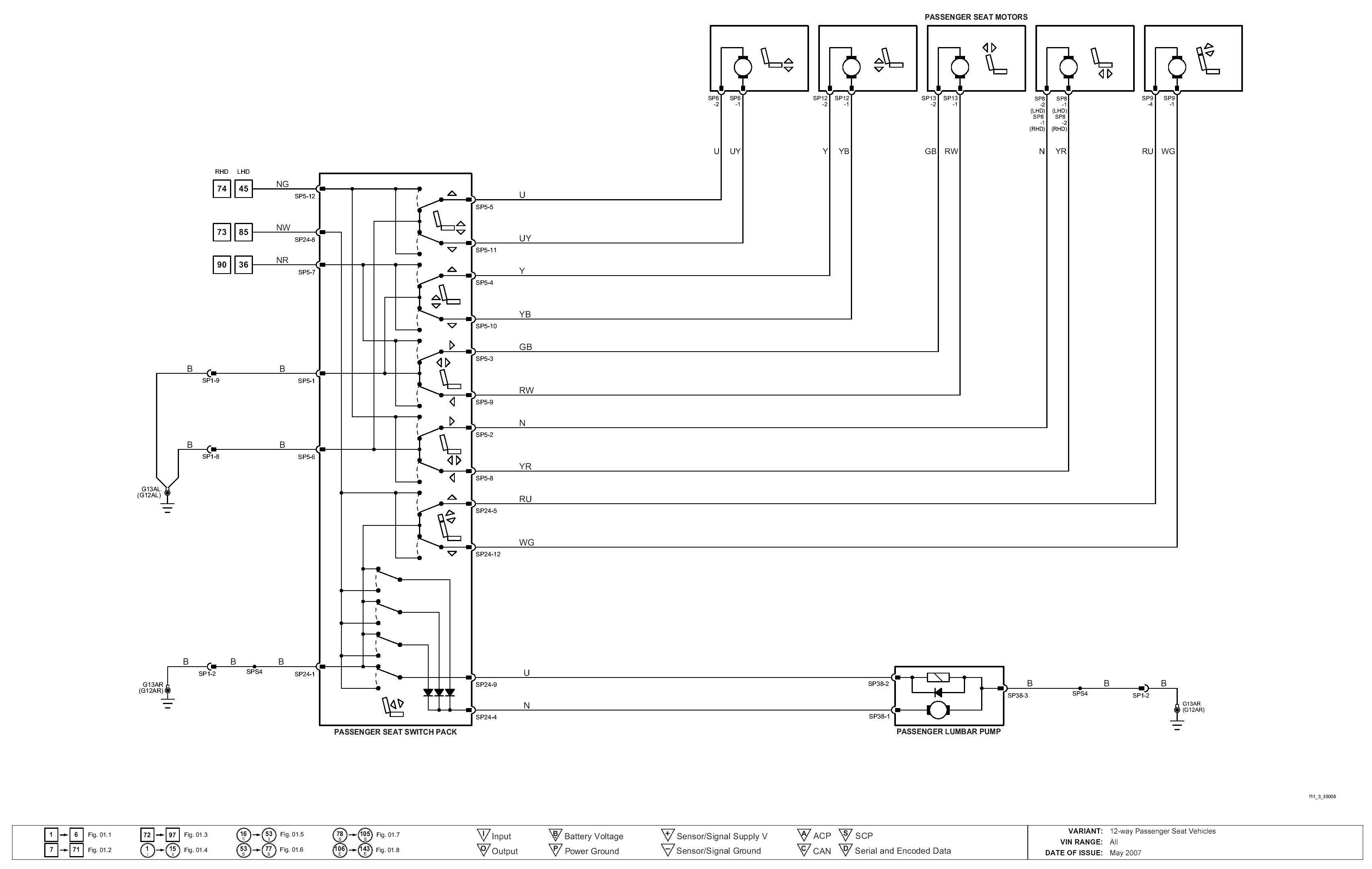

Diagram Figure 11.3:
Diagram Data Sheet 11.3:
