Figure 11.9 (Rear Seat Heaters)
Figure 11.9 (Rear Seat Heaters)
Rear Seat Heaters

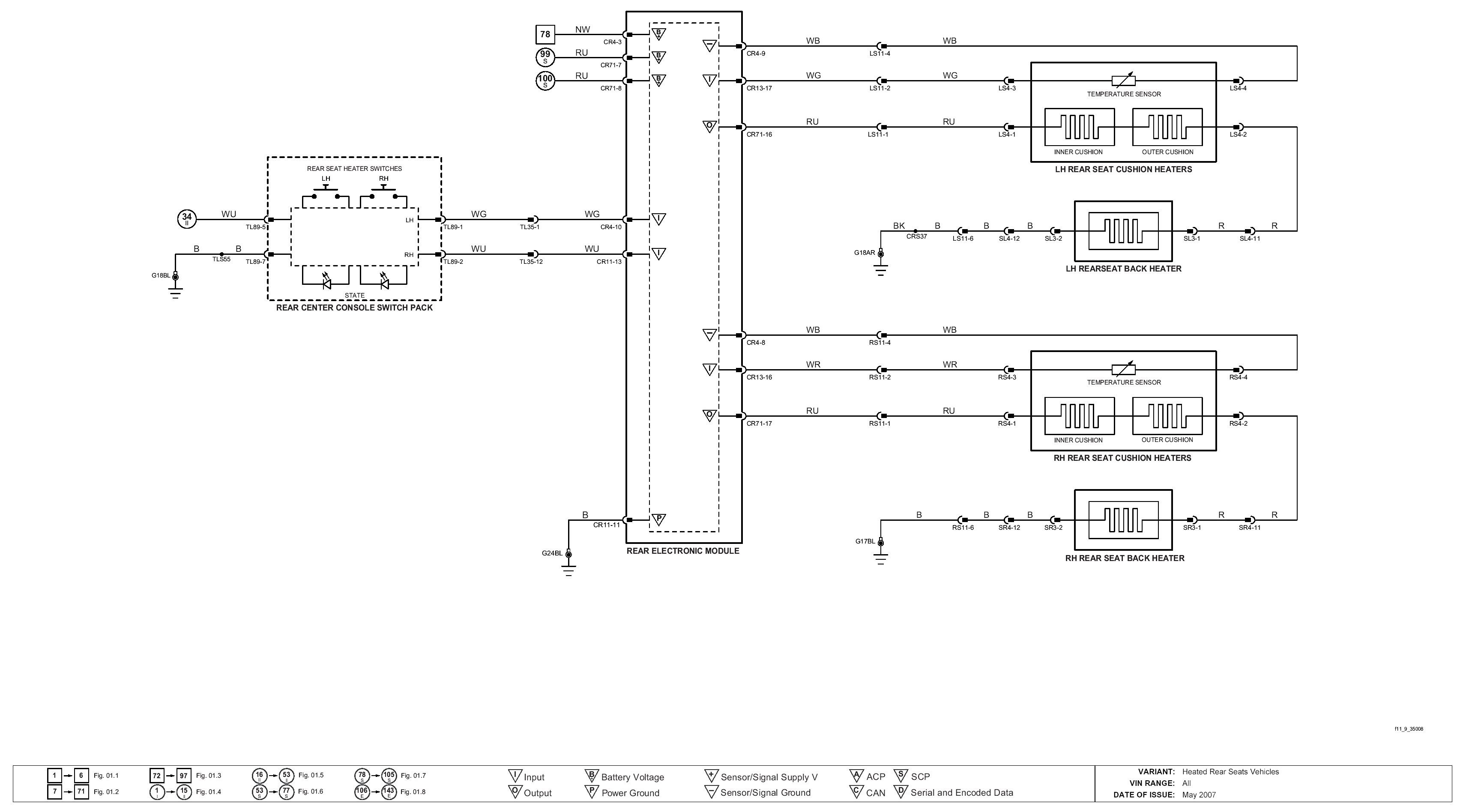

Diagram Figure 11.9:
Diagram Data Sheet 11.9 (Part 1):
Diagram Data Sheet 11.9 (Part 2):
