Figure 14.1 (Powered Windows; Sliding Roof)
Figure 14.1 (Powered Windows; Sliding Roof)
Powered
Windows
; Sliding Roof

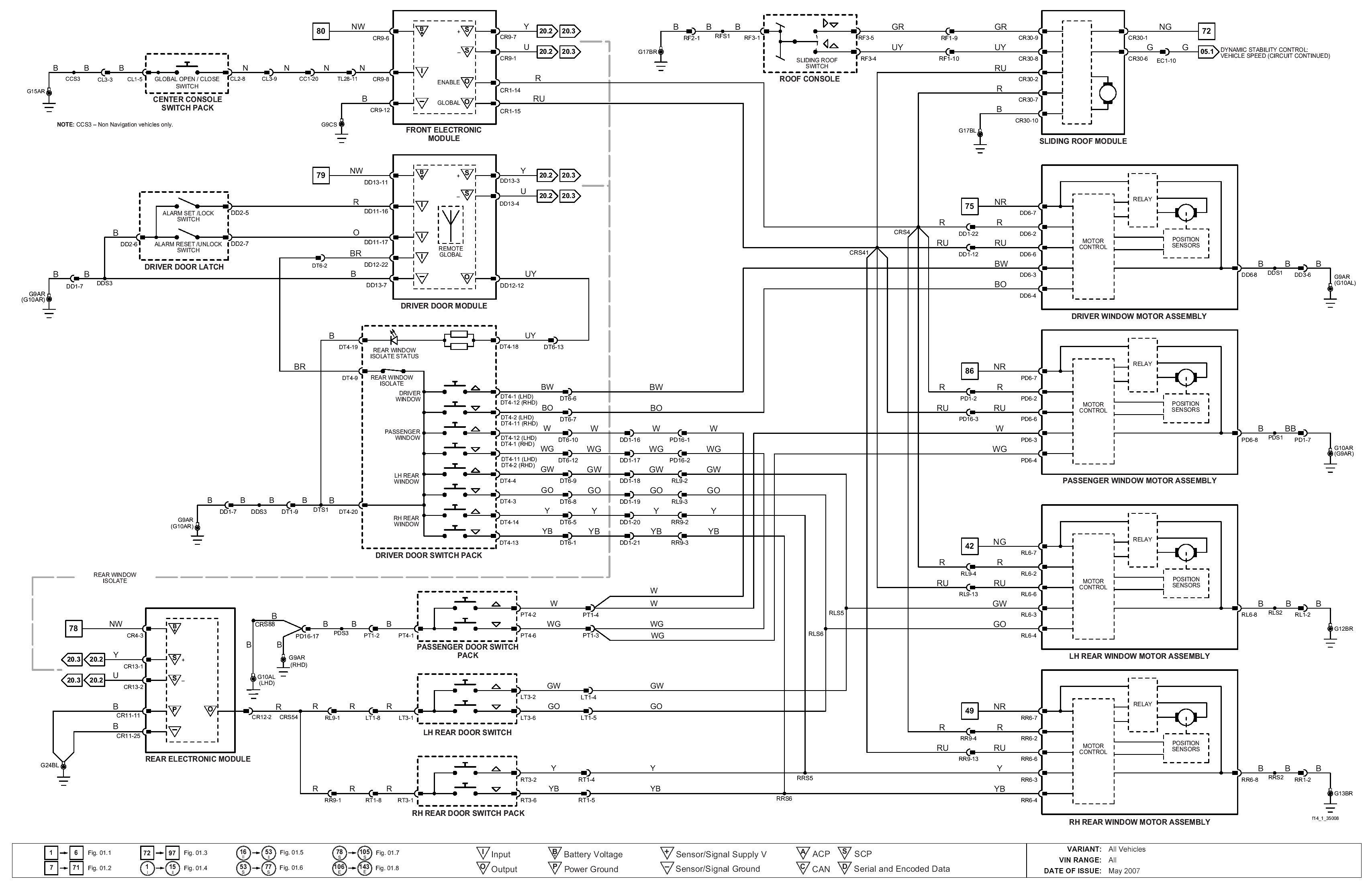

Diagram Figure 14.1:

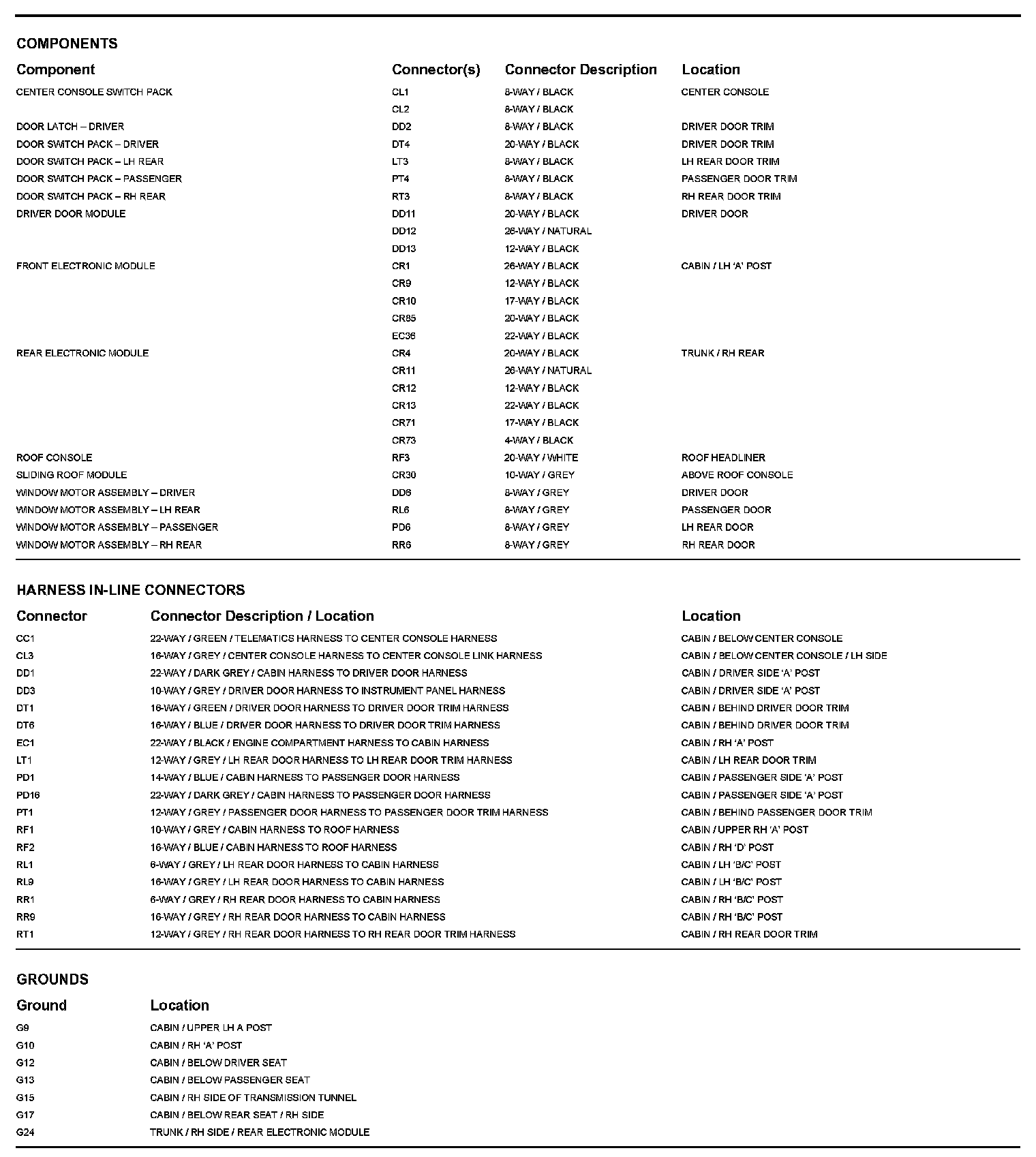

Diagram Data Sheet 14.1 (Part 1):
Diagram Data Sheet 14.1 (Part 2):
