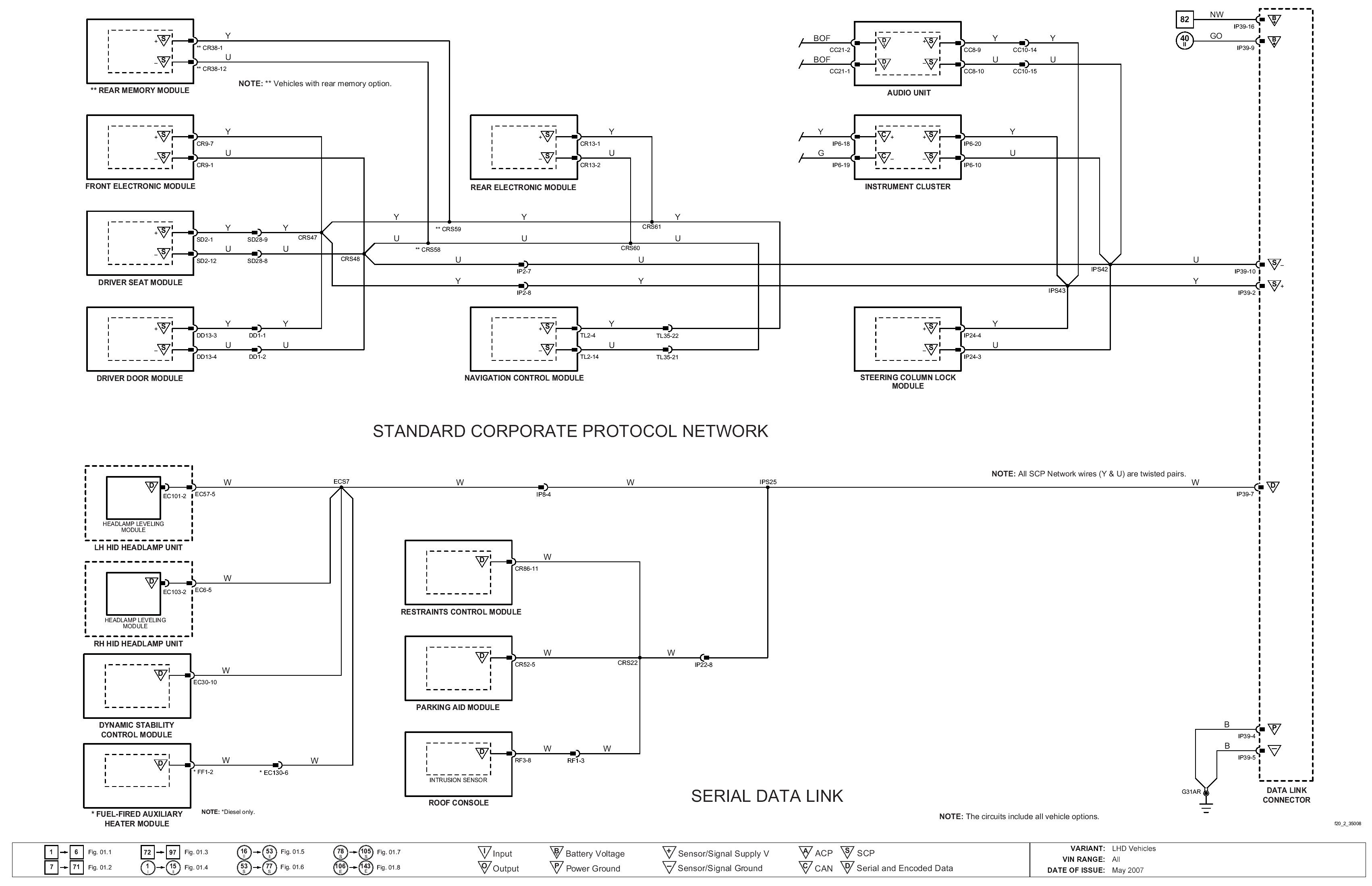

Figure 20.2 (Standard Corporate Protocol Network; Serial Data Link: LHD)



Standard Corporate Protocol Network; Serial Data Link: LHD


Diagram Figure 20.2:

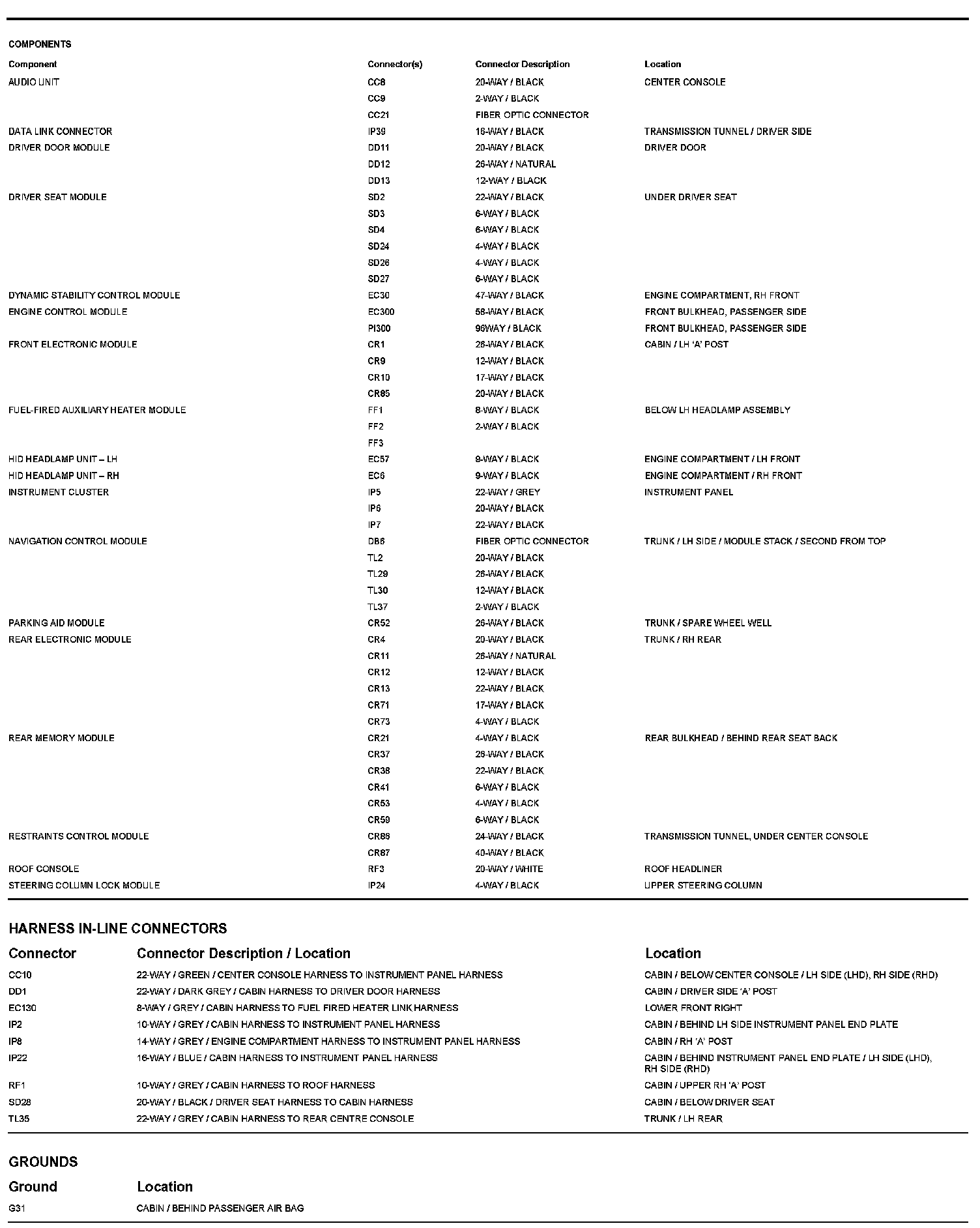

Diagram Data Sheet 20.2:
