Jaguar
>>
2009
>>
XJ (X350) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Number
>>
Figure 20.4 (D2B Network)
Figure 20.4 (D2B Network)

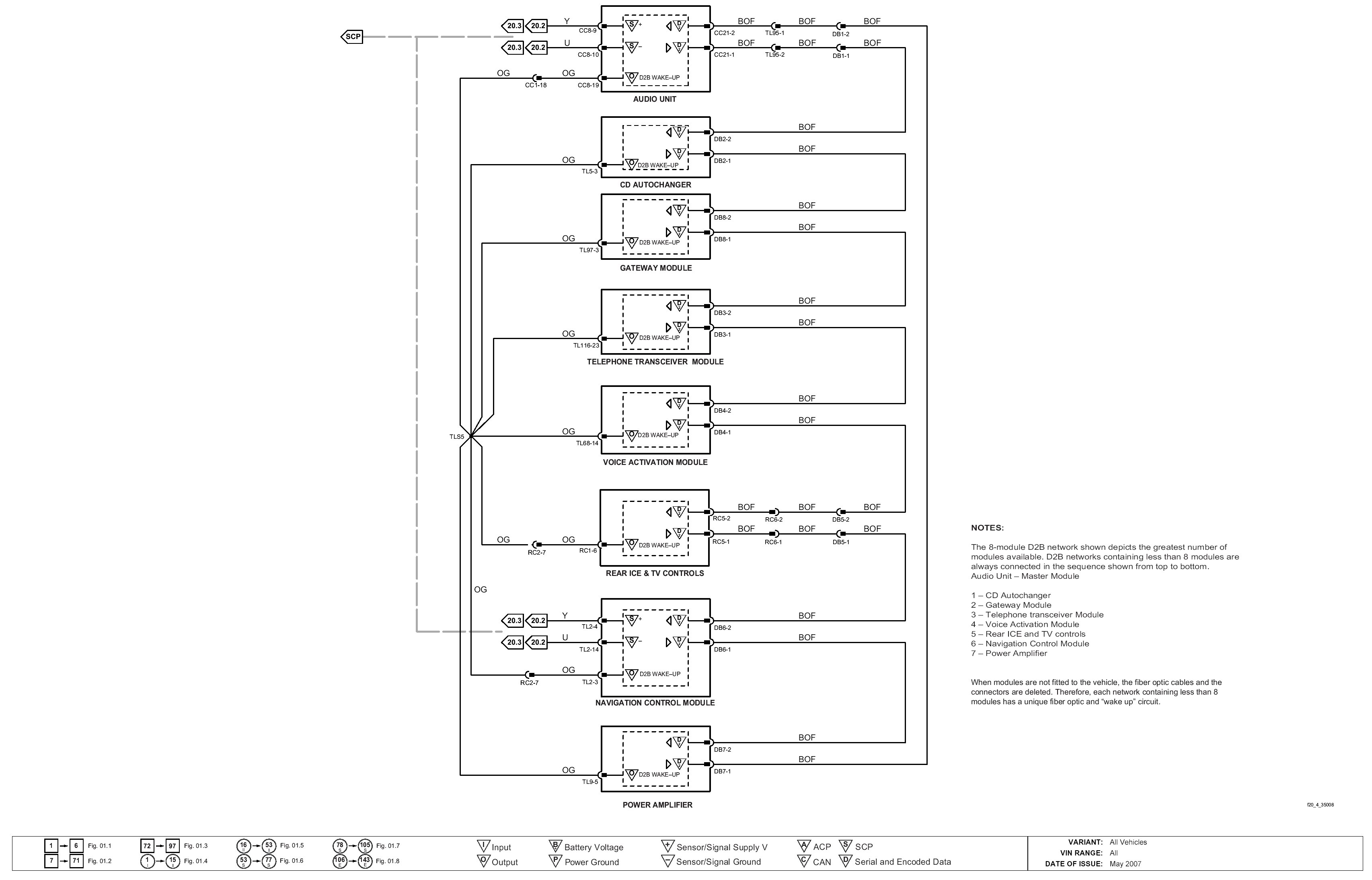

D2B Network
Diagram Figure 20.4:

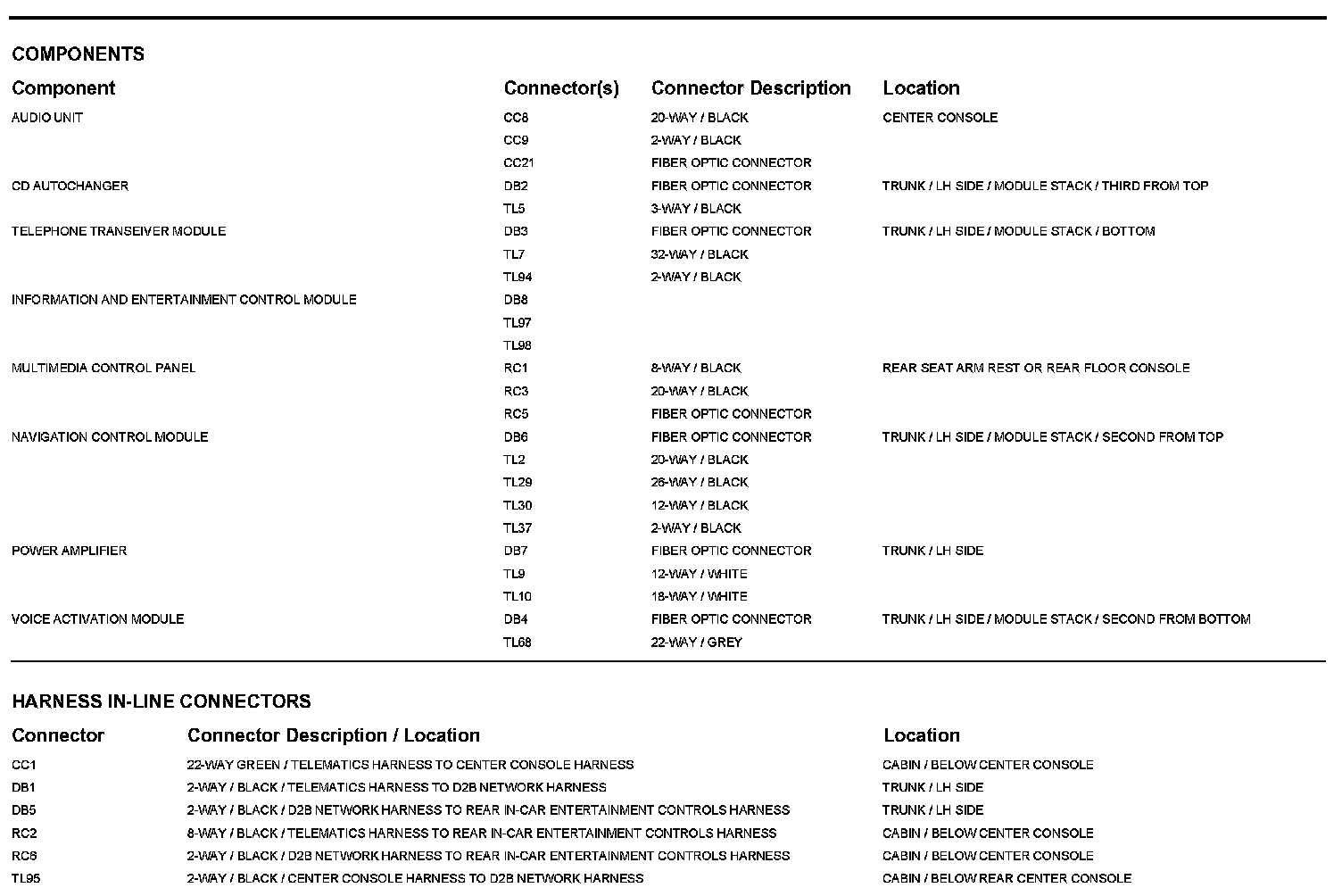

Diagram Data Sheet 20.4:
