Headlamp Replacement

Headlamp Assembly

Removal
1. Remove the front bumper cover.







2. Detach the headlamp assembly.

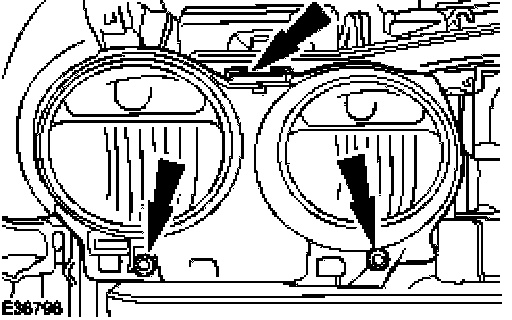

- Remove the headlamp retaining bolts.







3. Remove the headlamp assembly.

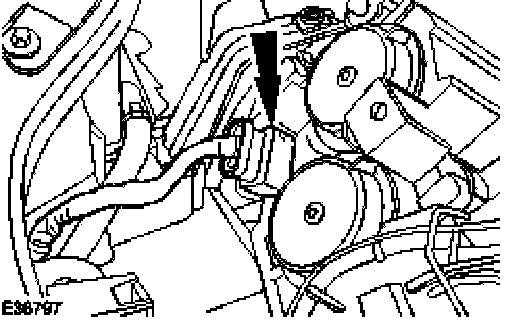

- Disconnect the headlamp electrical connector.

Installation
1. To install, reverse the removal procedure.
2. Check the headlamp adjustment.
