Jaguar
>>
2009
>>
XK (X150) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
FR001 - FR107
>>

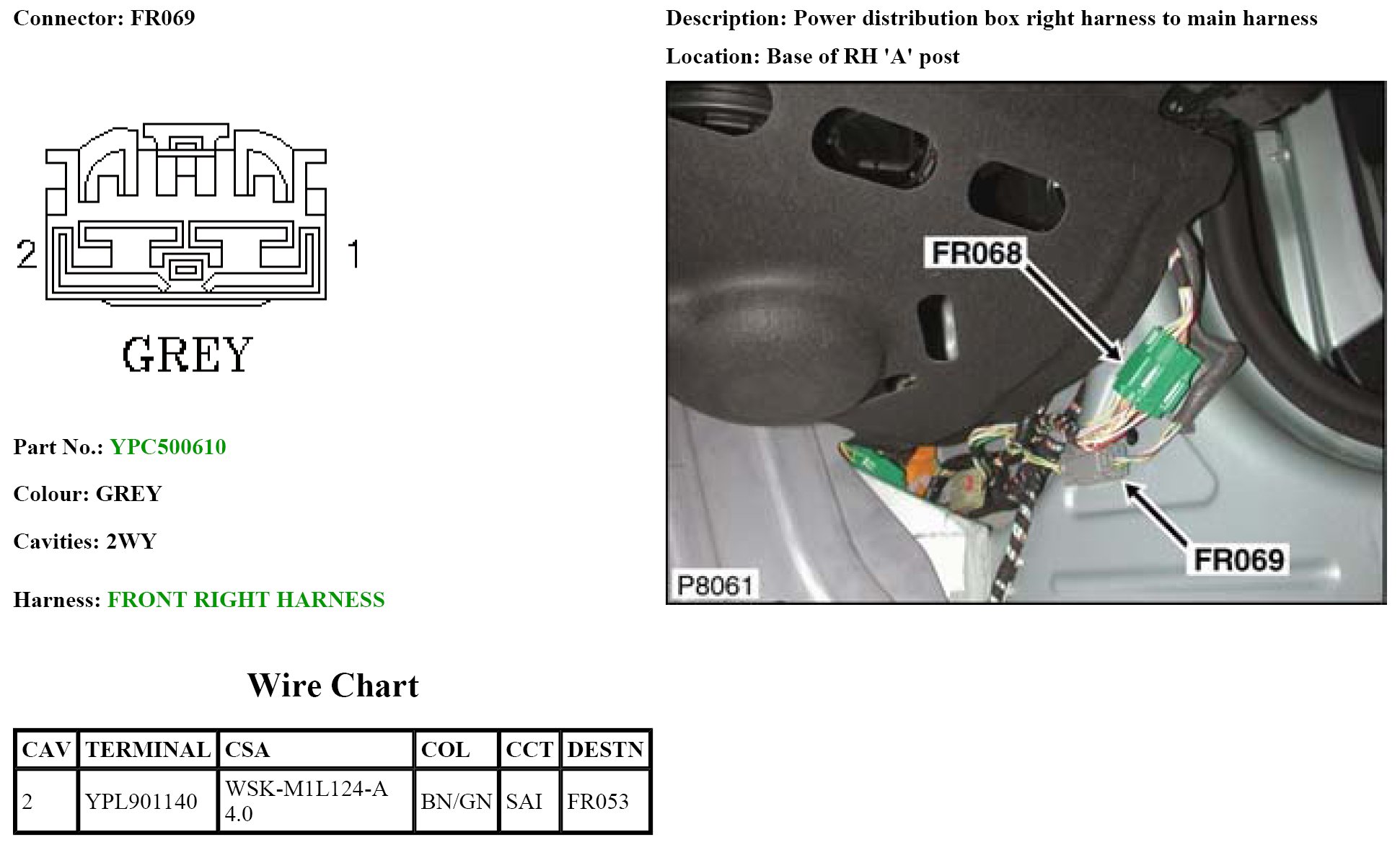

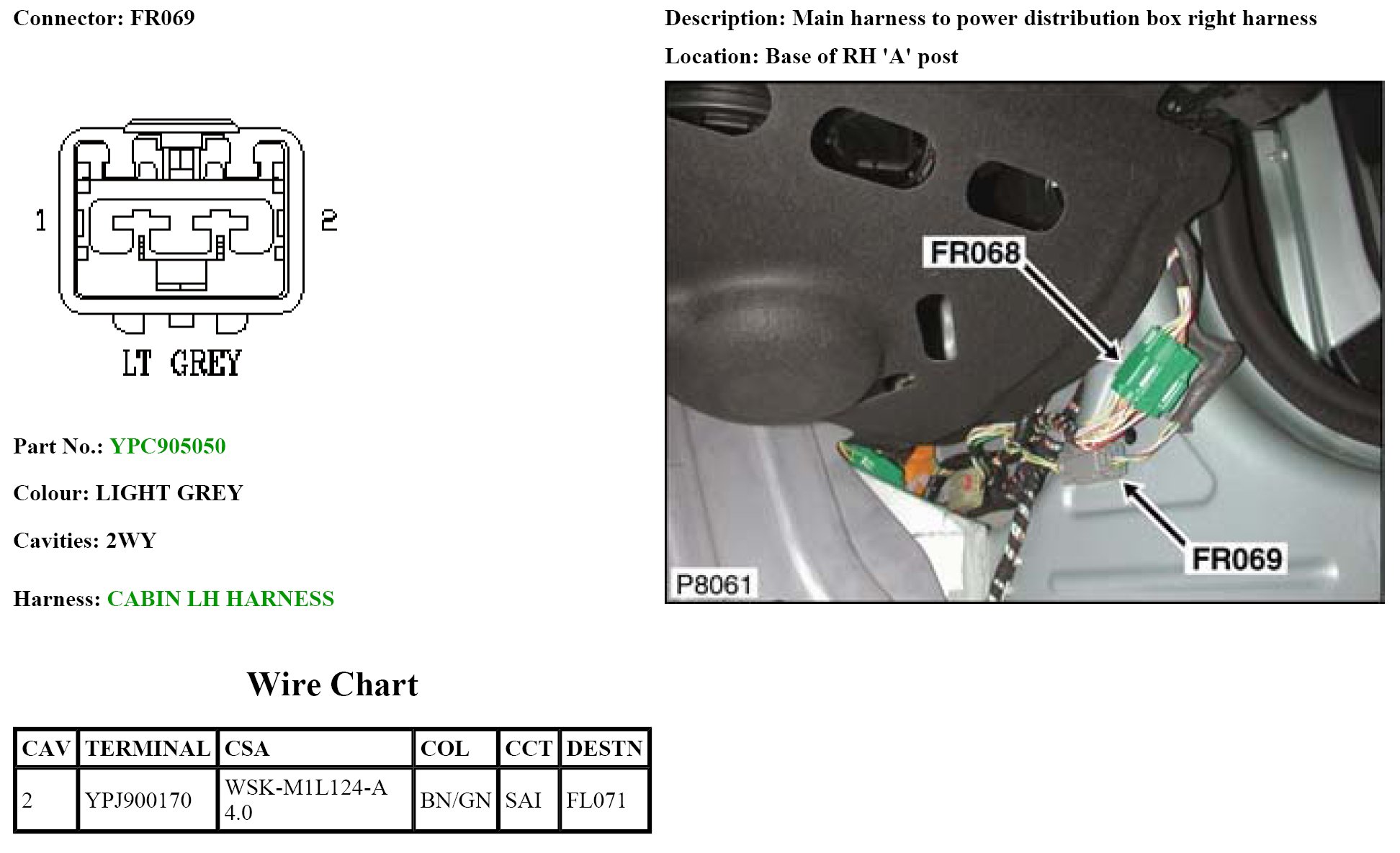

FR069
FR069
FR069
FR069:
FR069:
