Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XK (X150) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
IP001 - IP090
>>

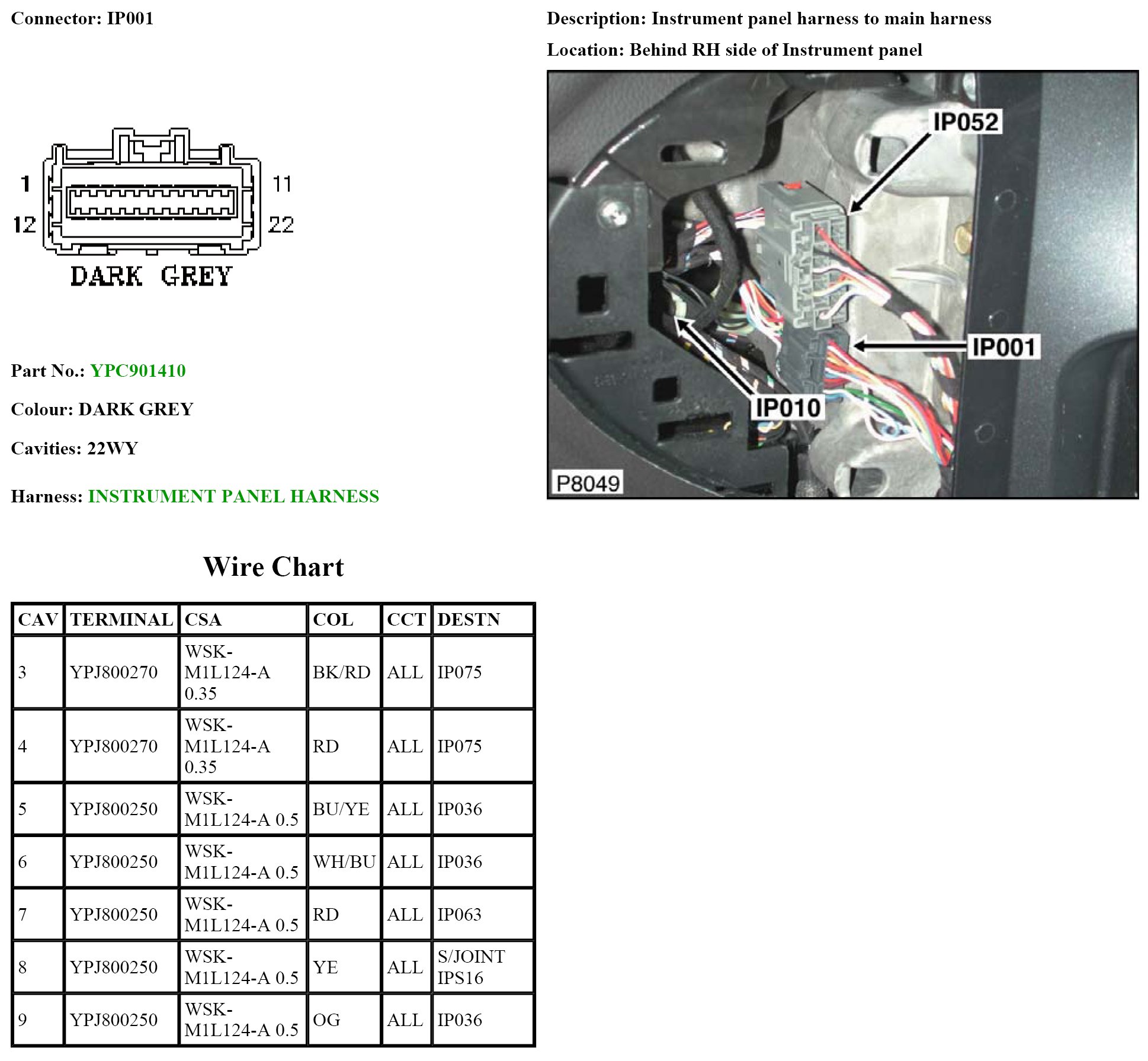

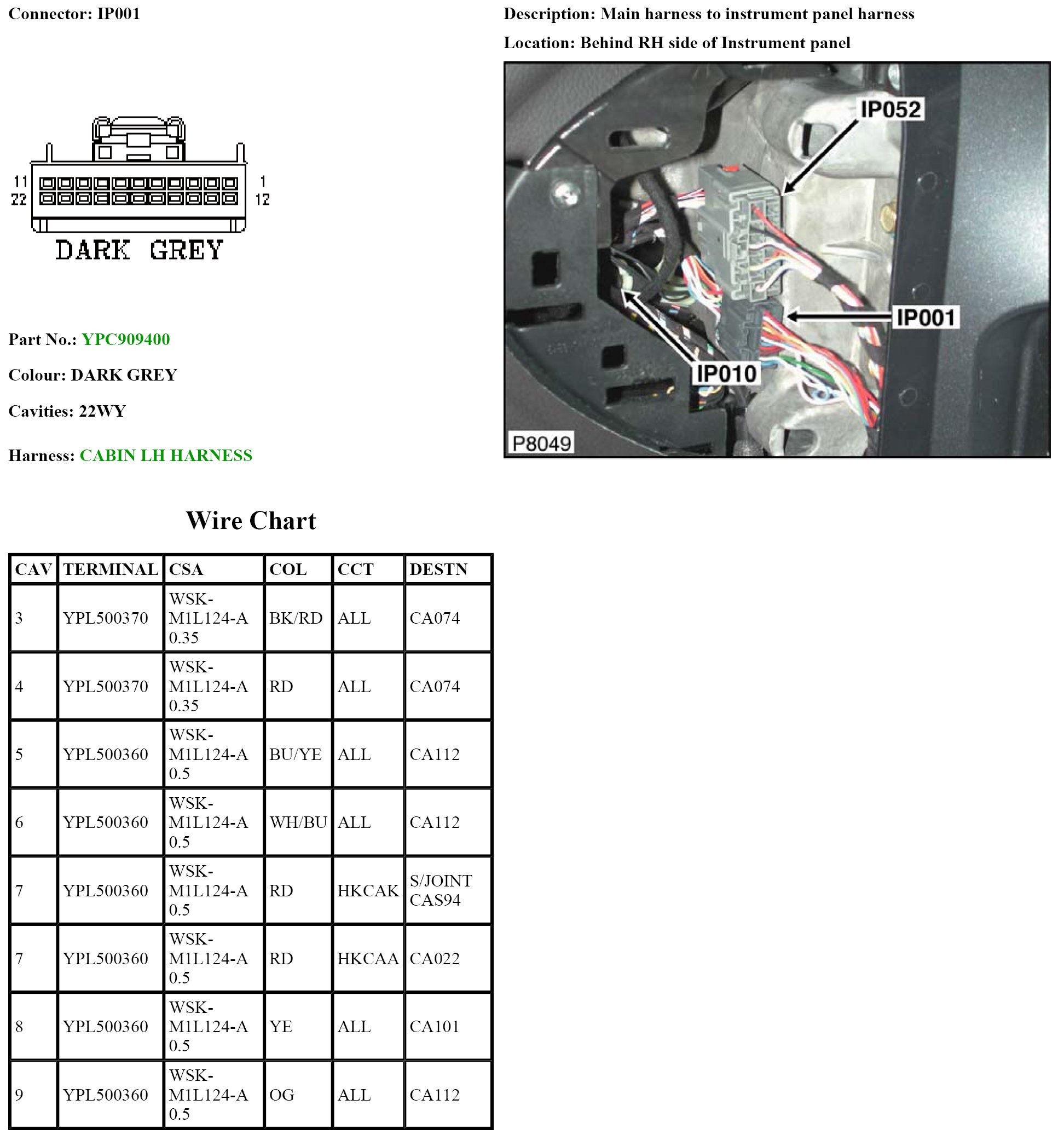

IP001
IP001
IP001
IP001:
IP001:
