Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig. 12.1 (Driver Seat)

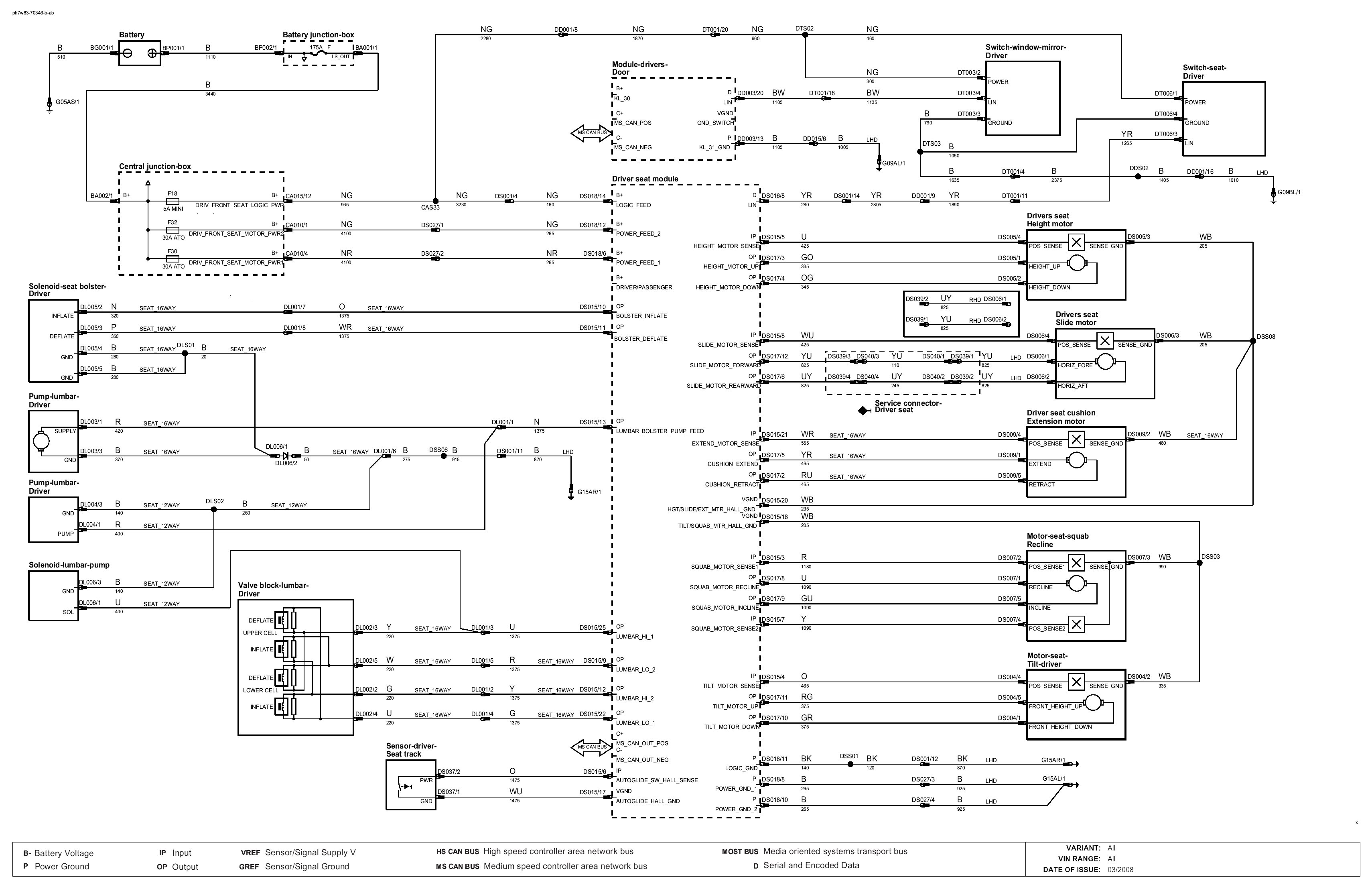

Fig. 12.1 (Driver Seat)

Fig. 12.1 (Driver Seat)

Diagram Figure 12.1:
