Wheel Hub: Service and Repair

Front Wheel Bearing and Wheel Hub

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the front brake disc. For additional information, refer to Brake Disc - Vehicles With: Standard Brakes Front Disc Brake Disc with Standard Brakes
For additional information, refer to Brake Disc - Vehicles With: High Performance Brakes Front Disc Brake Disc with High Performance Brakes
For additional information, refer to Brake Disc - Vehicles With: High Performance Brakes
For additional information, refer to Brake Disc - Vehicles With: Standard Brakes




3
NOTE:
Use an additional wrench to prevent the ball joint rotating.

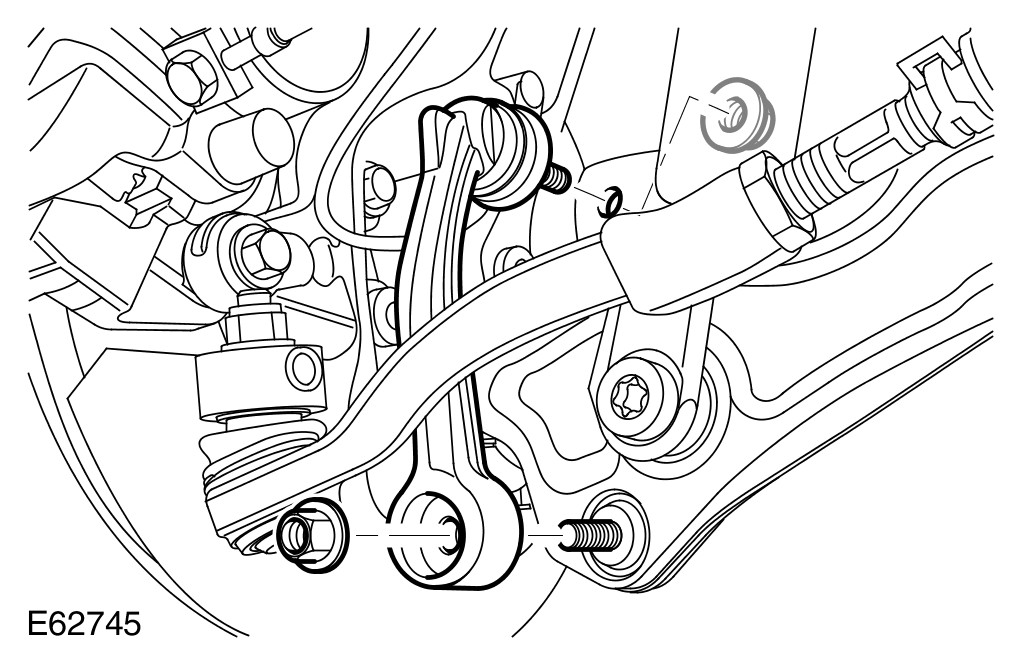

Remove the LH stabilizer bar link.
- Remove and discard the 2 nuts.

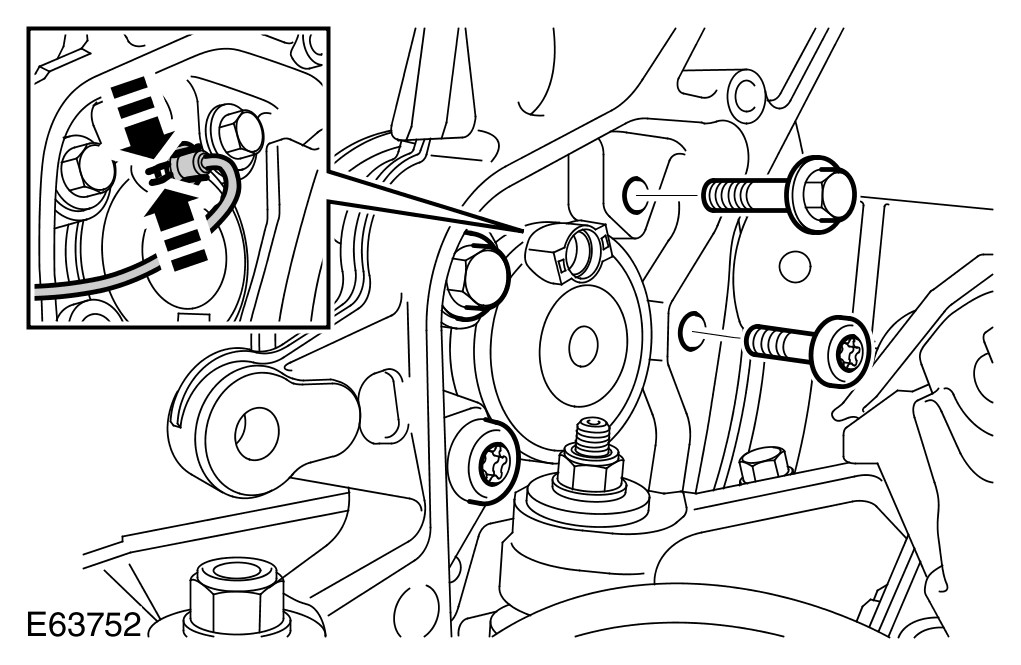

4 Remove the wheel speed sensor.
- Release the clip.
- Tie aside.




5
NOTE:
Note the fitted position.
LH front: Carefully remove the hub assembly.
- Remove and discard the 2 Torx bolts.
- Remove and discard the 2 bolts.

Installation
1
NOTE:
Align to the position noted on removal.
NOTE:
Make sure all component mating faces are clean.
LH front: Carefully install the hub assembly.
- Clean the component mating faces.
- Tighten the bolts to 90 Nm (66 lb.ft).
2 Install the wheel speed sensor.
- Secure the clip.
3
NOTE:
Use an additional wrench to prevent the ball joint rotating.
Install the stabilizer bar link.
- Tighten the nuts to 48 Nm (35 lb.ft).
4 Install the front brake disc. For additional information, refer to Brake Disc - Vehicles With: Standard Brakes Front Disc Brake Disc with Standard Brakes
For additional information, refer to Brake Disc - Vehicles With: High Performance Brakes Front Disc Brake Disc with High Performance Brakes
For additional information, refer to Brake Disc - Vehicles With: High Performance Brakes
For additional information, refer to Brake Disc - Vehicles With: Standard Brakes
