System Specifications

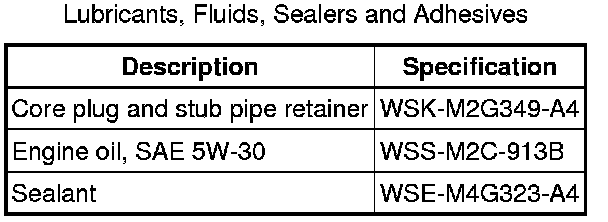

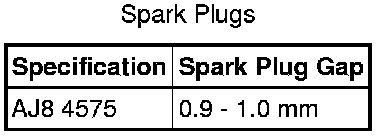

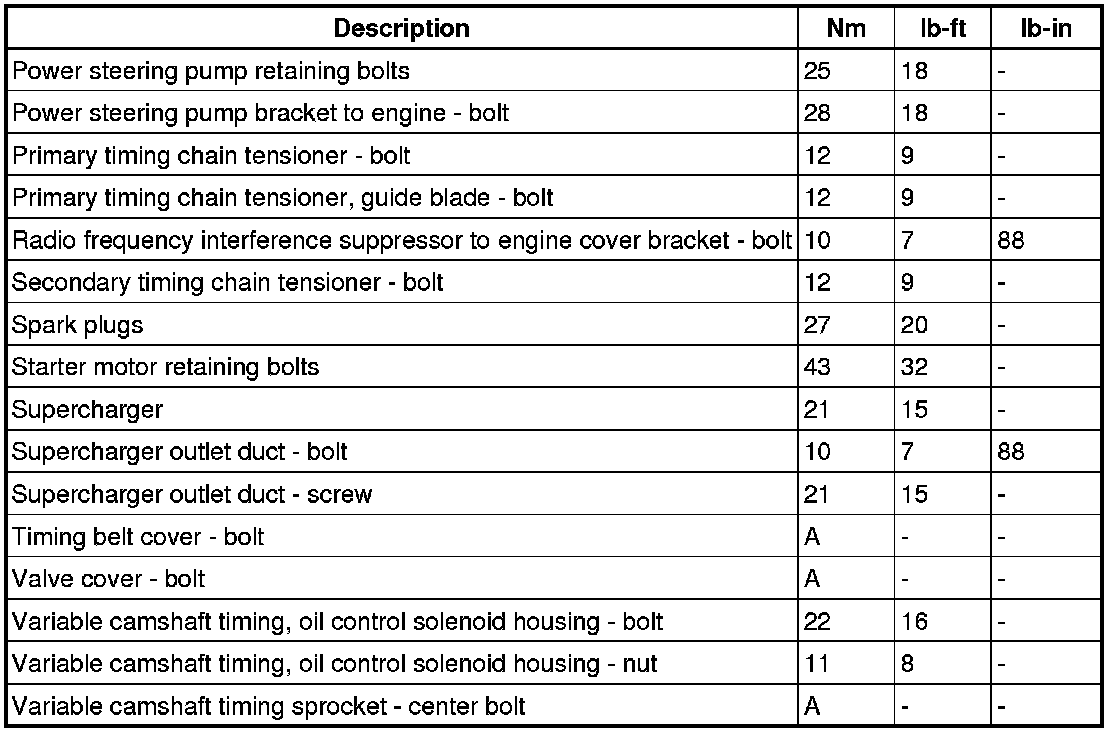

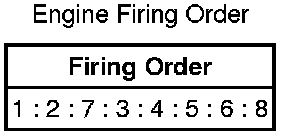

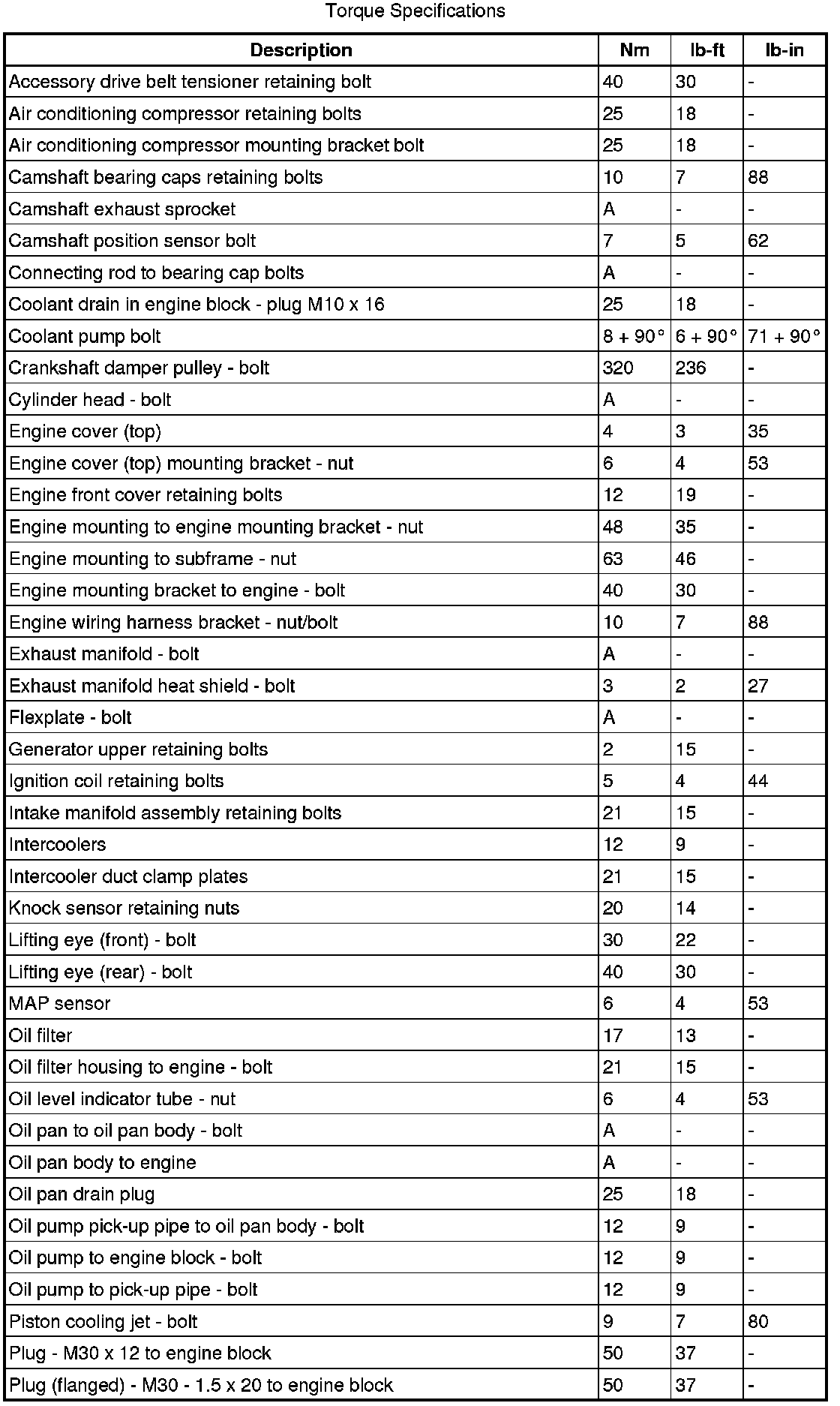

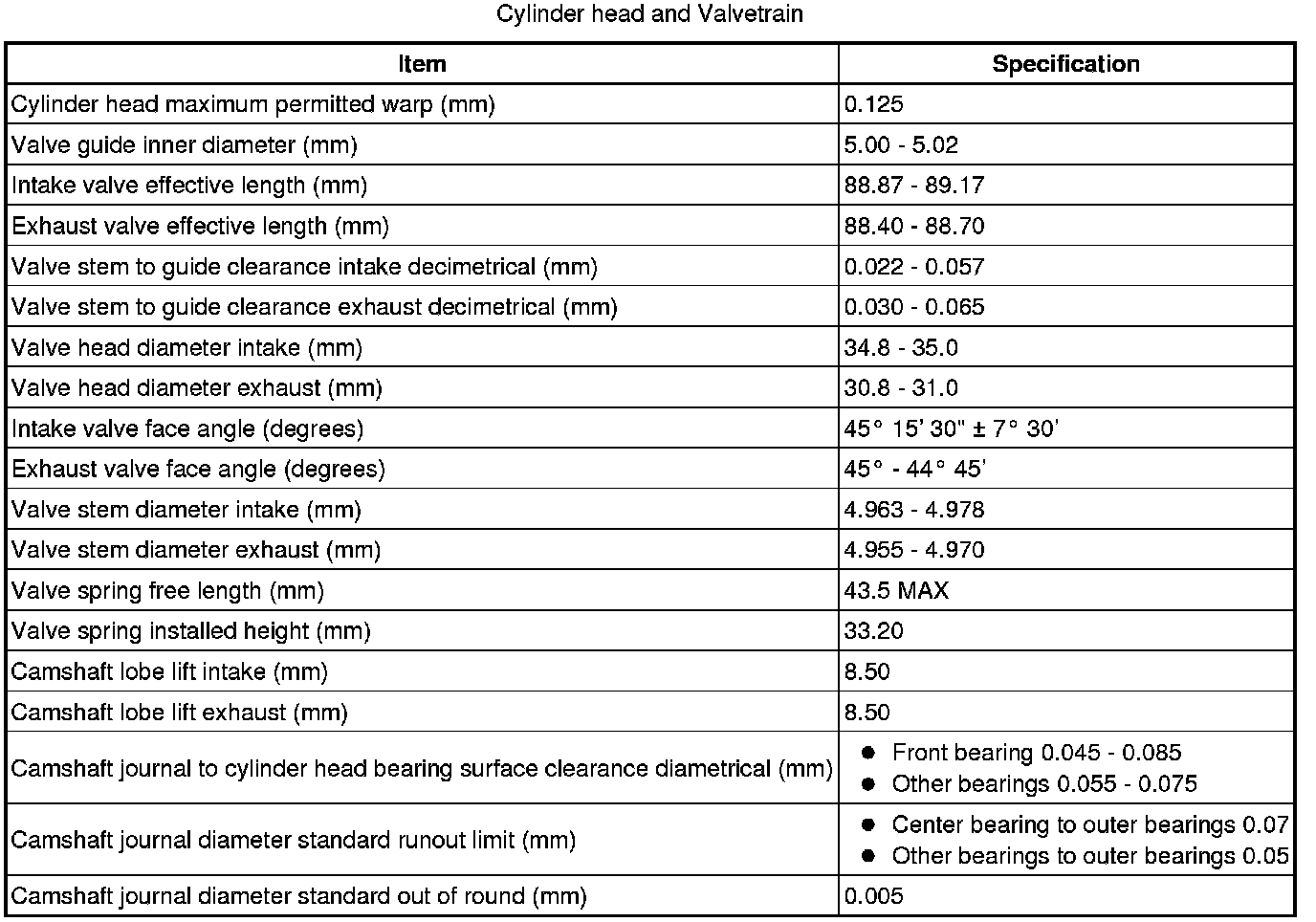

Specifications






































A = refer to procedure for correct torque sequence
