Battery: Description and Operation
Battery and Cables

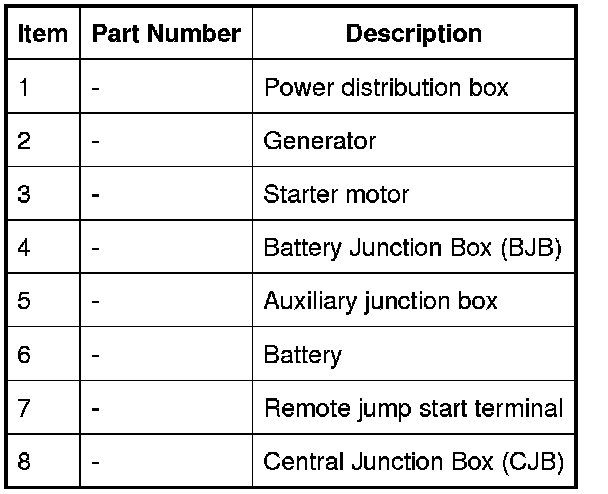

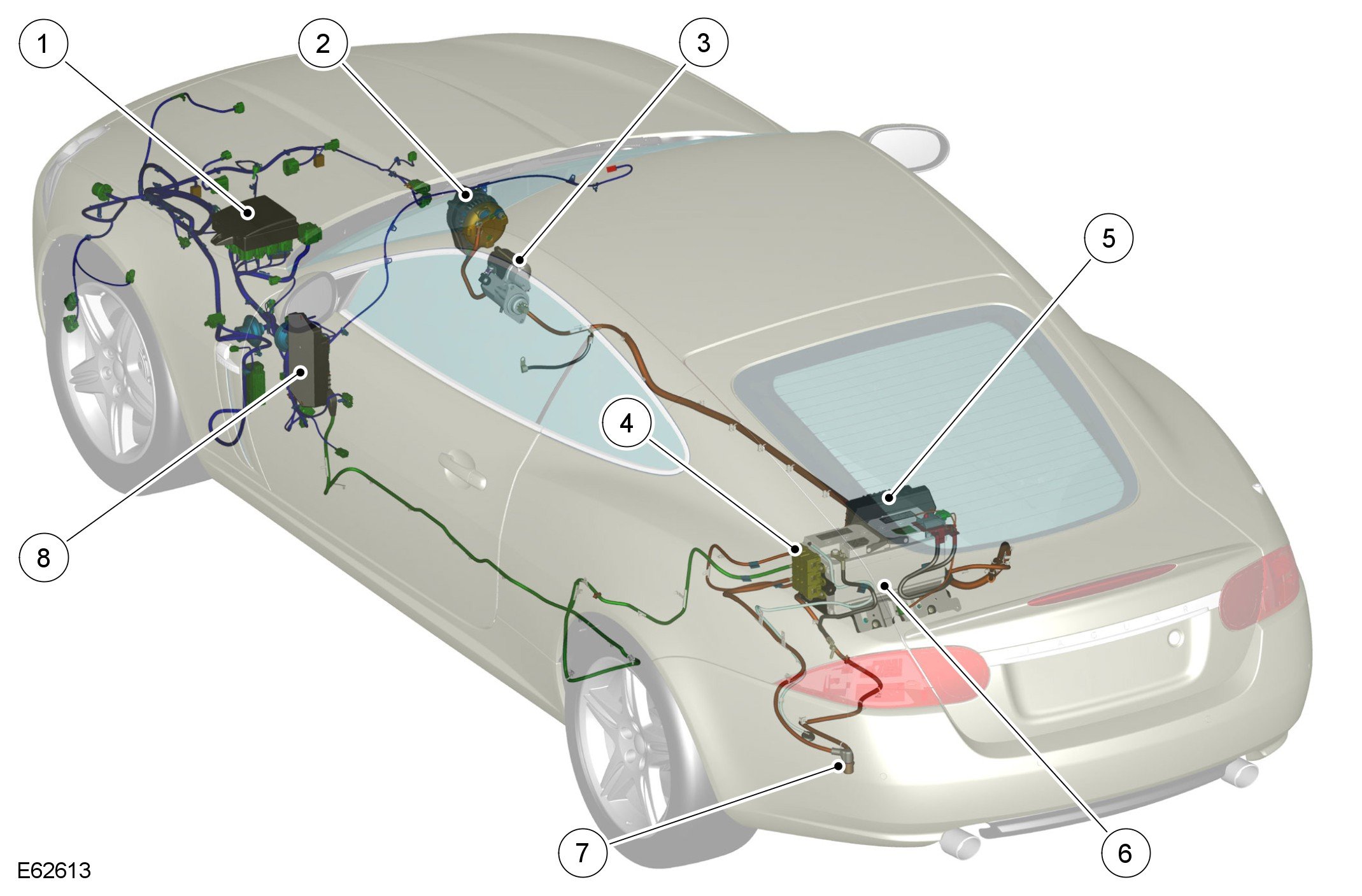

COMPONENT LOCATION
INTRODUCTION
Electrical power from the battery and generator is distributed throughout the vehicle through a series of junction boxes.
IGNITION MODES

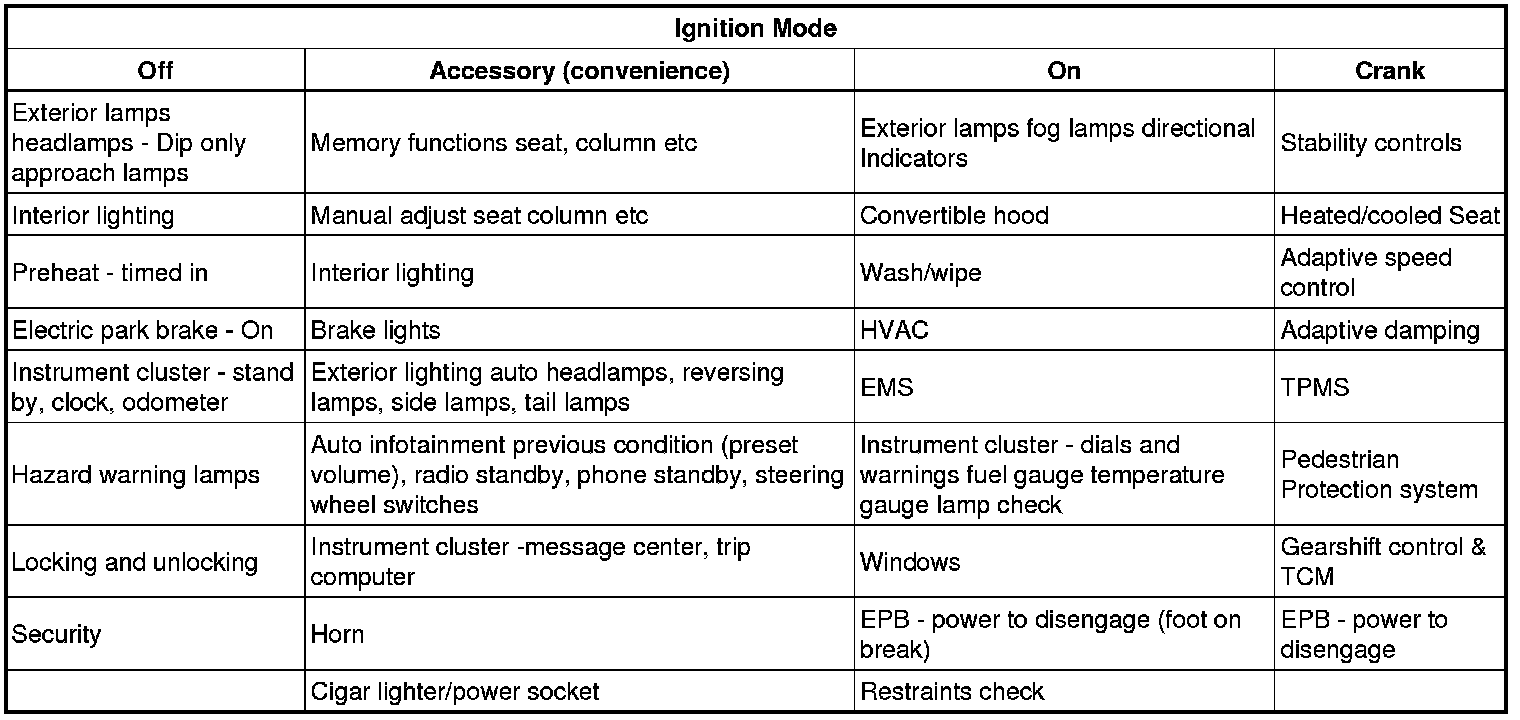

The vehicle has a possible 4 ignition modes. The modes and systems that are active in each mode are detailed in the following table.
BATTERY

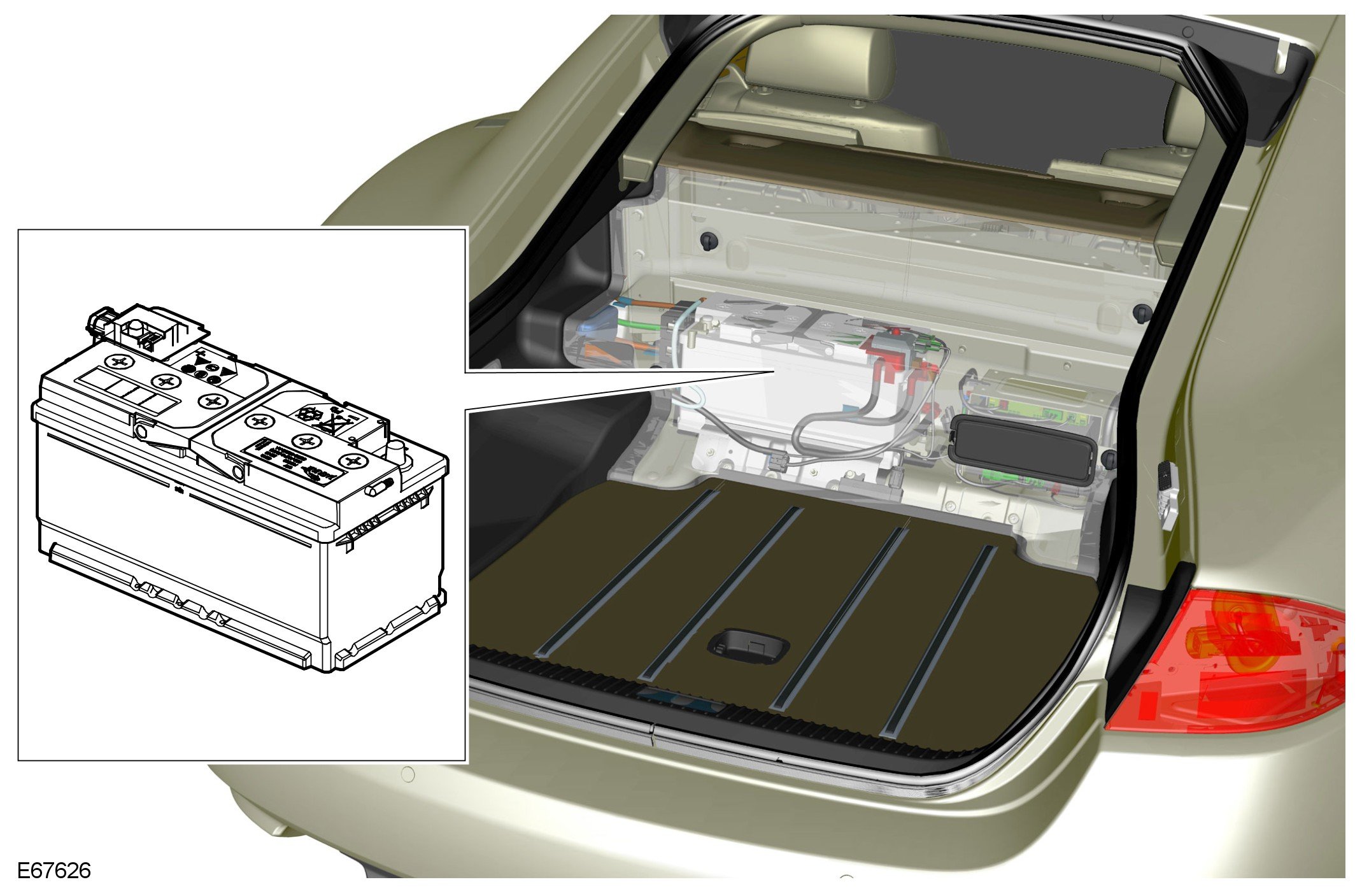

The battery is located behind a cover at the front of the luggage compartment. The cover is held in place by 4 retainers. The battery sits in a tray and is secured with a clamp plate and 2 nuts.
The positive and negative battery cables are fitted with Service loops. The Service loops add extra length to the cables and allow the battery to be slid rearward in the luggage compartment without disconnection.
Remote Jump Start Terminal
The positive battery cable is also connected to a remote jump start terminal. The remote jump start terminal is located in the Left-Hand (LH) rear corner of the luggage compartment and can be accessed by removing the air vent trim. Although also fitted to coupe vehicles, the terminal has been specifically designed to allow a convertible vehicle to be jump started if a drained battery is experienced when the top is in the stowed condition.
The starter motor power lead is also connected to the remote jump start terminal and is insulated from the battery jump start cable and the vehicle body by a nylon washer.
The negative jump start connection is a stud located in the spare wheel well. For more information on jump start procedure, refer to the Owners Handbook.
Transit Relay
The vehicle is also fitted with a transit relay. This is a disposable device and not for use by the customer. This relay is fitted in series with the battery and ground. It disconnects the battery from the vehicles ground and thus eliminates quiescent current drain during delivery. The relay must be removed before delivery to the customer. For more information, refer to the Pre-Delivery Inspection (PDI) manual.
BATTERY JUNCTION BOX (BJB)
Mounted on the LH side of the battery is the BJB. The BJB contains 3 megafuses delivering battery power to; the starter motor (400A); the auxiliary junction box (175A) and the CJB (175A). For more information, refer to the Electrical Guide.
AUXILIARY JUNCTION BOX

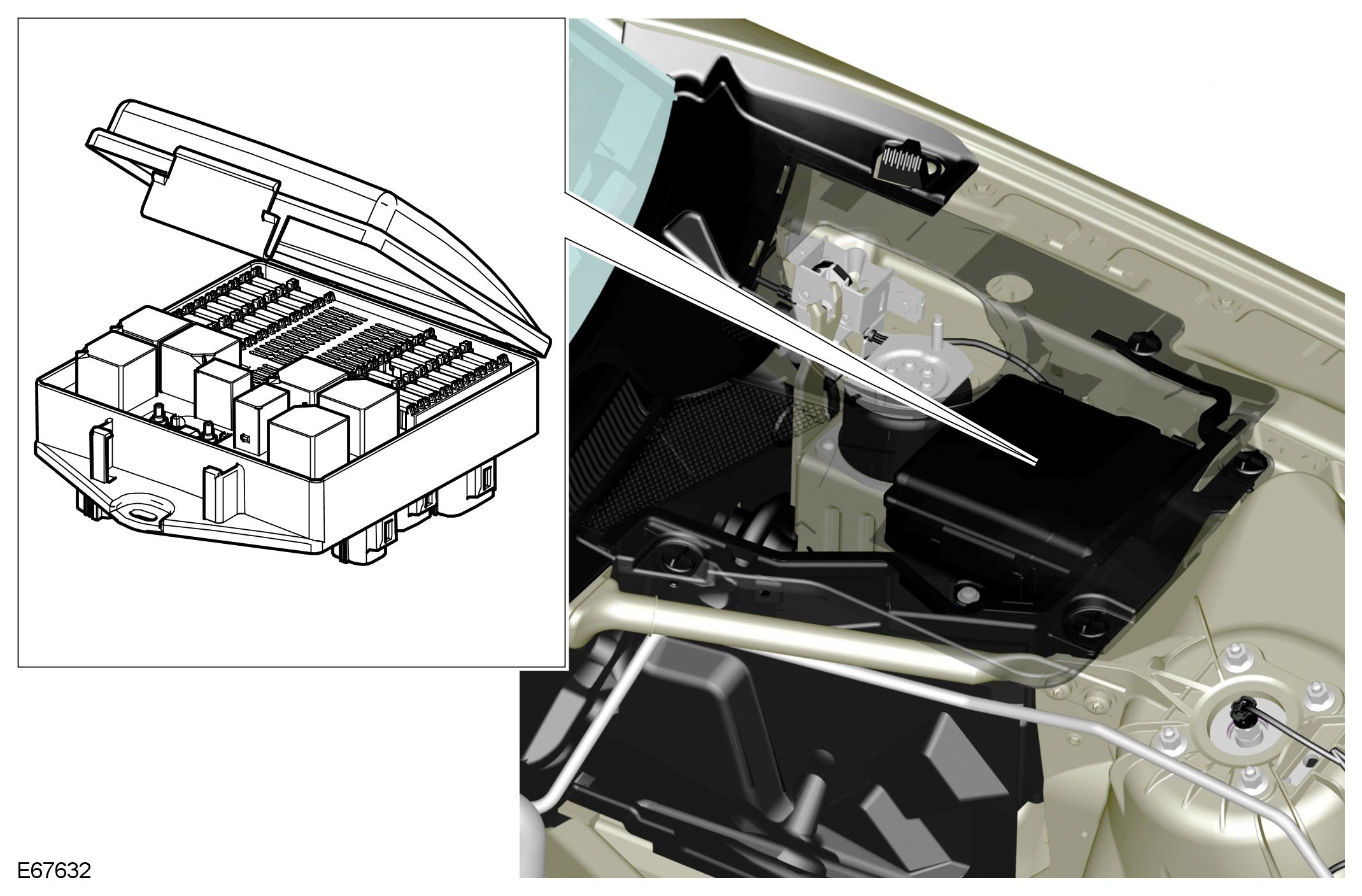

The auxiliary junction box is mounted on the passenger compartment rear bulkhead and secured by 2 nuts/studs. The junction box can be accessed by opening the center panel of the rear seat back. The center panel is secured in position by a single stud at the top, and hinged at the bottom.
The auxiliary junction box receives electrical power from the BJB via a 175A megafuse. For more information on the circuits and systems served by the auxiliary junction box, refer to the Electrical Guide.
CENTRAL JUNCTION BOX (CJB)

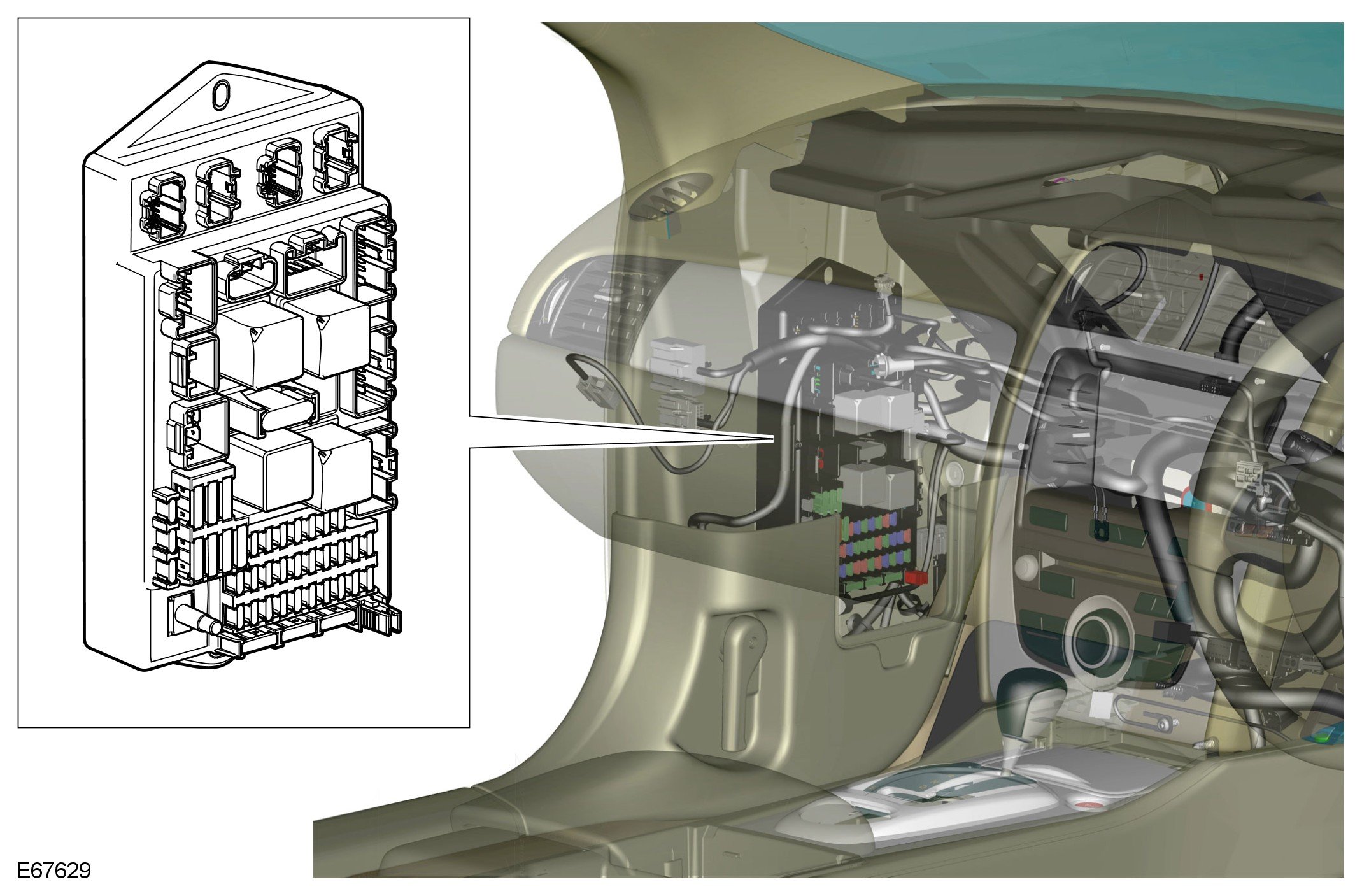

The CJB is mounted at the base of the LH A pillar and secured by 2 nuts/studs. Access to the CJB can be gained through a removable panel located below the LH side of the instrument panel.
The CJB receives electrical power from the BJB via a 175A megafuse. A second power supply lead 'daisy chains' off the CJB, providing electrical power to the power distribution box. For more information on the circuits and systems served by the CJB, refer to the Electrical Guide.
The CJB also controls the functionality of a number of vehicle systems. These include:
- Electric steering column lock. For additional information, refer to Steering Column
- Instrument cluster and panel illumination. For additional information, refer to Instrument Cluster and Panel Illumination Description and Operation
- Exterior lighting systems. For additional information, refer to Exterior Lighting
For additional information, refer to Daytime Running Lamps (DRL) Description and Operation
- Interior lighting systems. For additional information, refer to Interior Lighting Interior Lighting
- Active anti-theft alarm system. For additional information, refer to Anti-Theft - Active Anti-Theft - Active
- Passive anti-theft alarm system. For additional information, refer to Anti-Theft - Passive Anti-Theft - Passive
- Passive start. For additional information, refer to Handles, Locks, Latches and Entry Systems Description and Operation
- Electric seats. For additional information, refer to Seats Description and Operation
- Electric windows. For additional information, refer to Glass, Frames and Mechanisms Description and Operation
- Wipers and washers. For additional information, refer to Wipers and Washers
POWER DISTRIBUTION BOX
The power distribution box is located in the LH rear of the engine compartment, beneath a closing panel. The power distribution box is supplied electrical power from the BJB, via the CJB. For more information on the circuits and systems served by the power distribution box, refer to the Electrical Guide.
