Exterior Mirror Glass

Exterior Mirror Glass

Removal

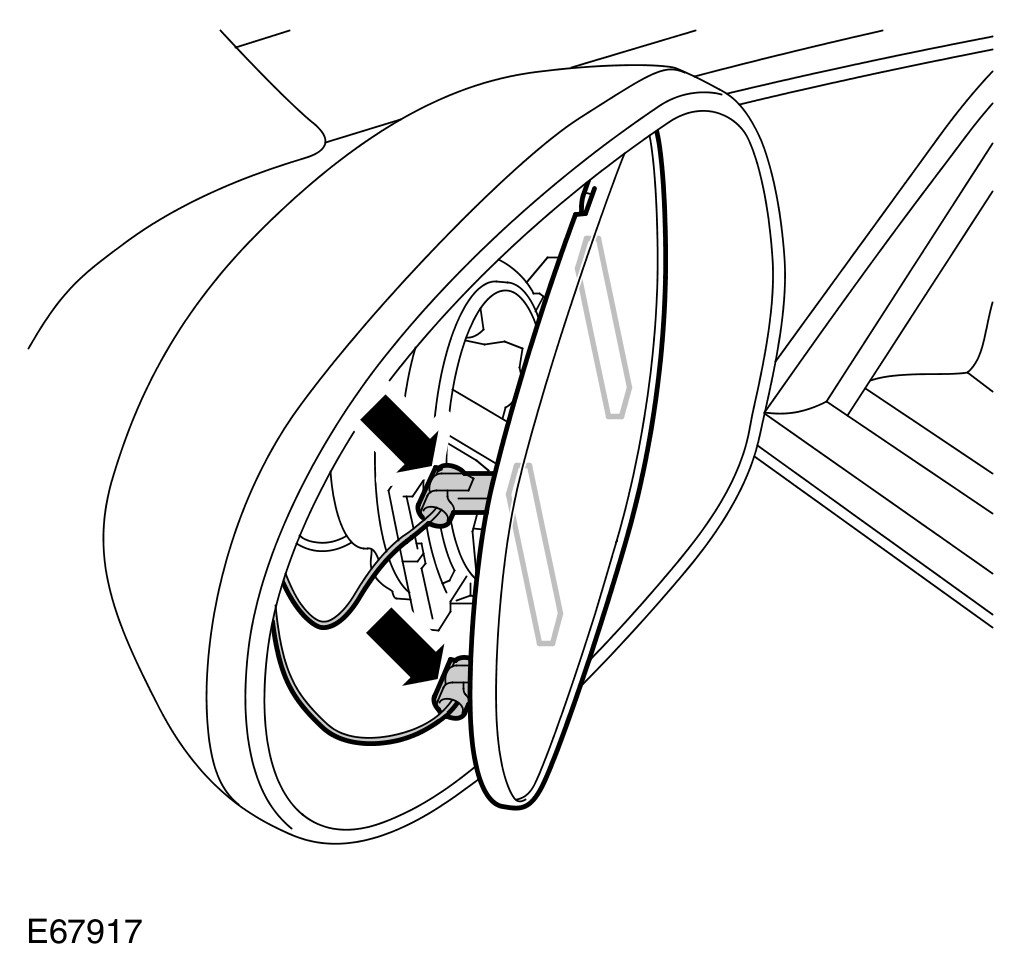

1 Remove the exterior mirror glass.
- Carefully apply pressure to the outer edge of the glass, to release the 2 clips.
- Disconnect the 2 electrical connectors.

Installation
1 Install the exterior mirror glass.
- Connect the electrical connectors.
- Align the glass to the motor.
- Apply an even pressure to secure glass to the clips.
2 Check the operation of the exterior mirror.
