Front Disc Brake Specifications

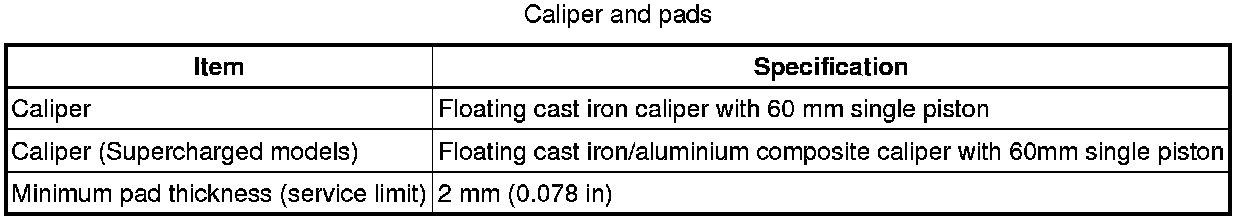

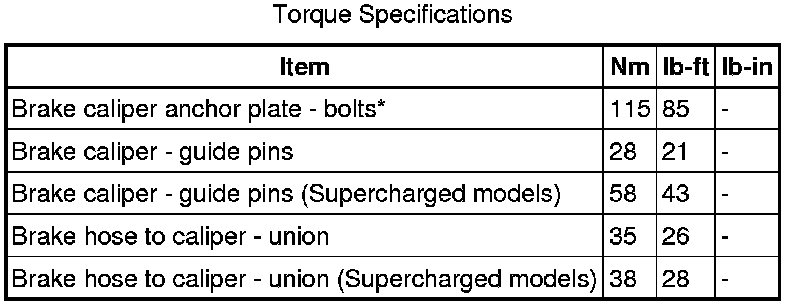

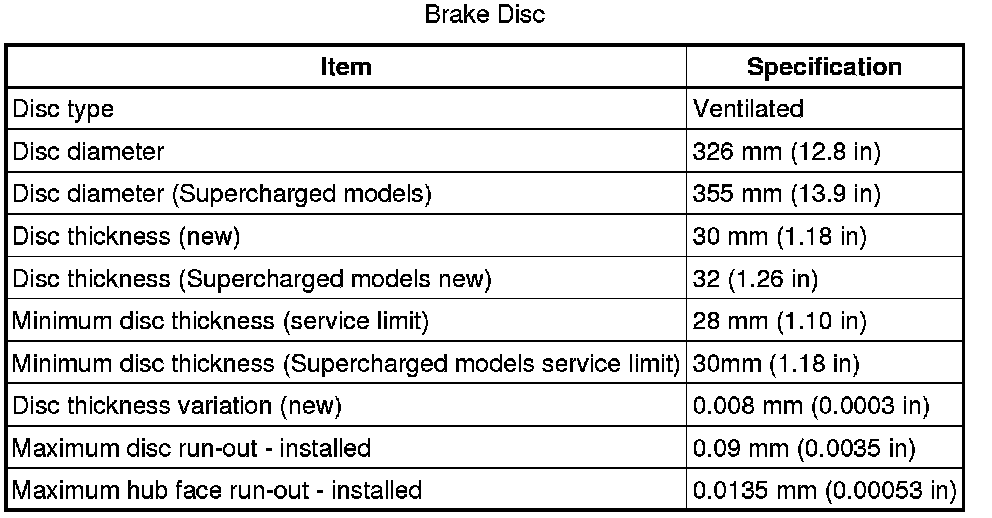

Front Disc Brake Specifications
Specifications
* New nuts/bolts must be installed
