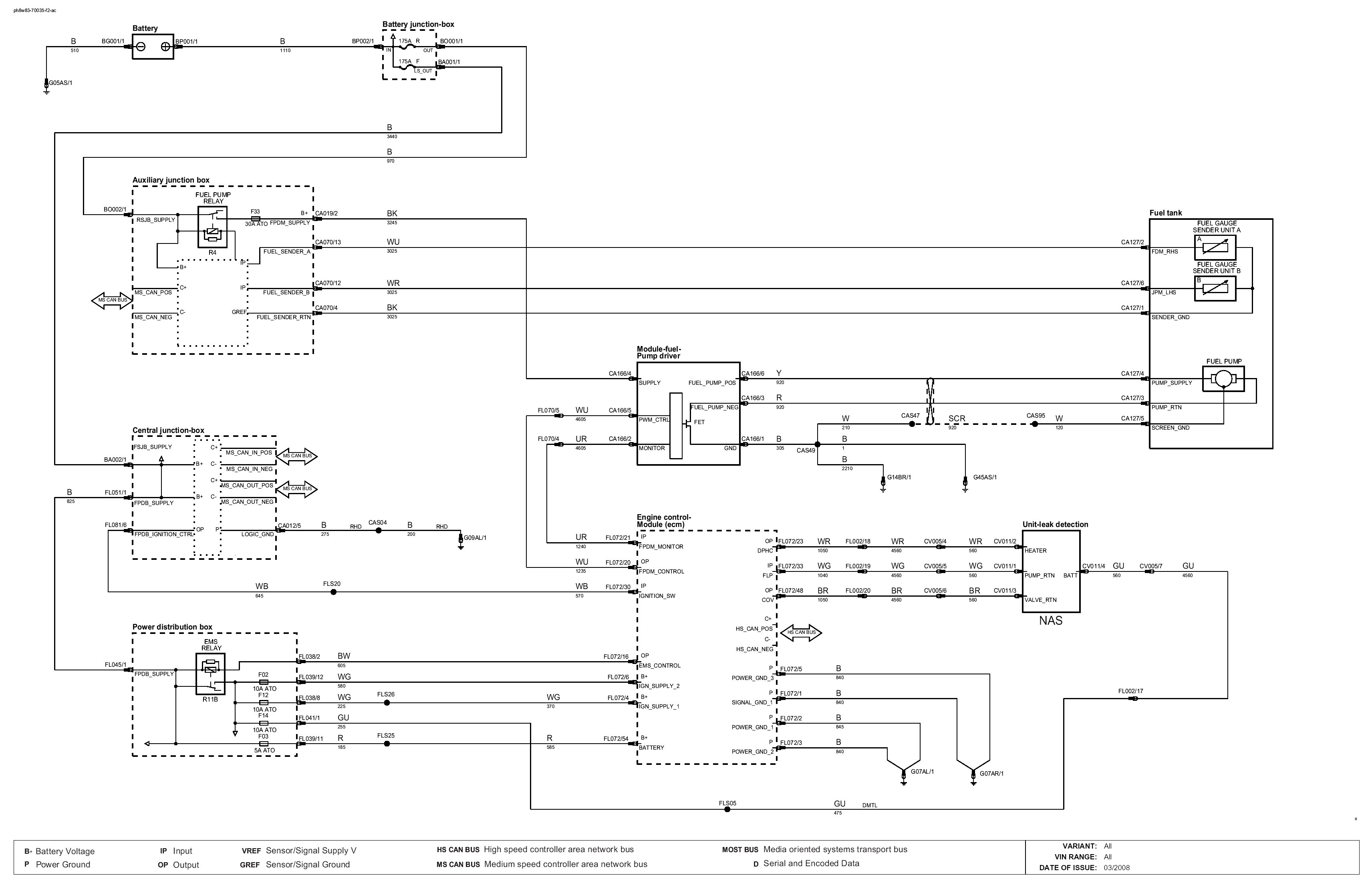

Fig. 04.6 (Engine Management: Fuel Tank and Lines)



Fig. 04.6 (Engine Management: Fuel Tank and Lines)


Diagram Figure 04.6:
