Fig. 06.6 (Adaptive Speed Control)
Fig. 06.6 (Adaptive Speed Control)
Fig. 06.6 (Adaptive Speed Control)

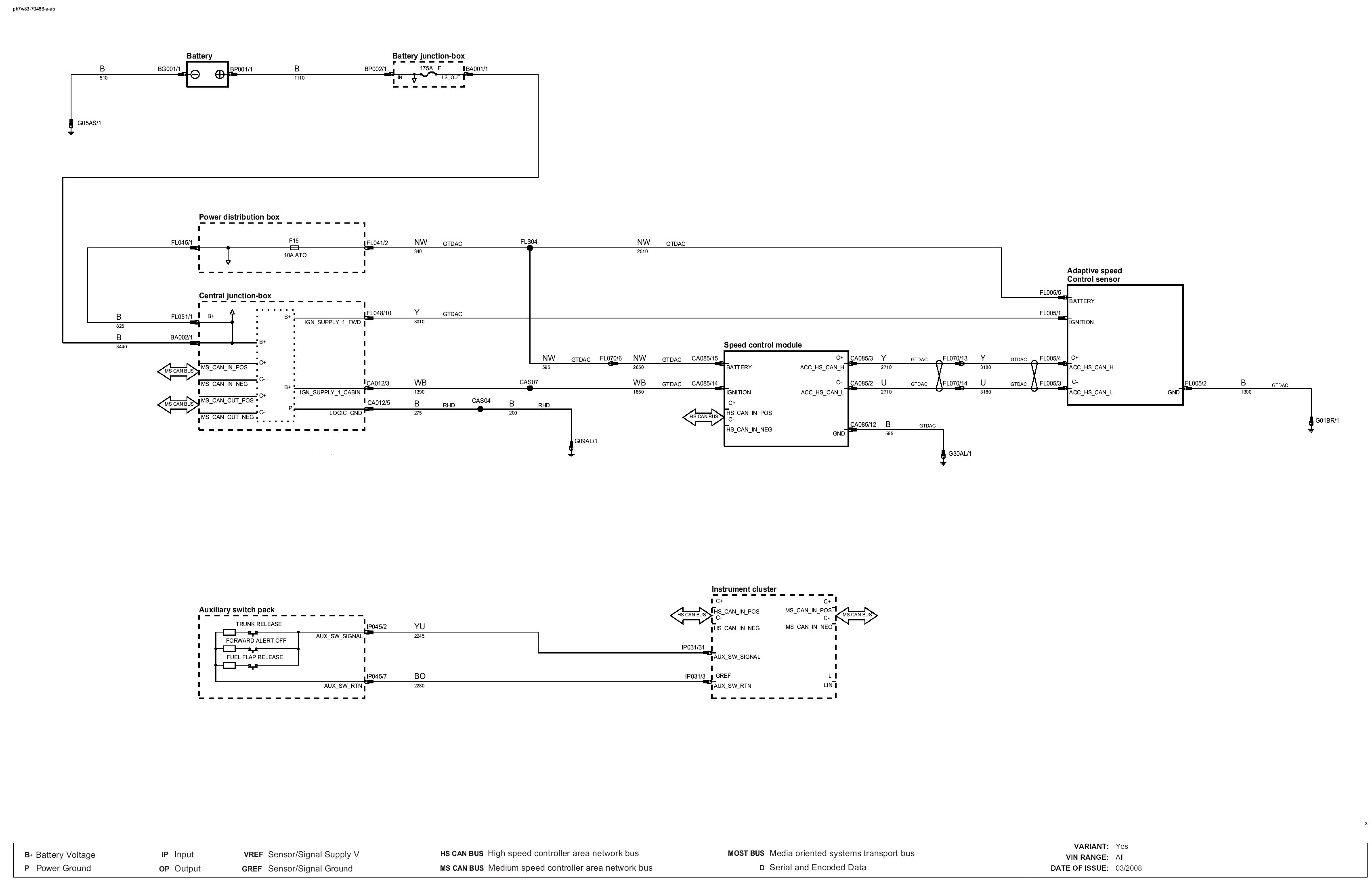

Diagram Figure 06.6:
