Fig. 14.1 (Wash/Wipe System)
Fig. 14.1 (Wash/Wipe System)
Fig. 14.1 (Wash/Wipe System)

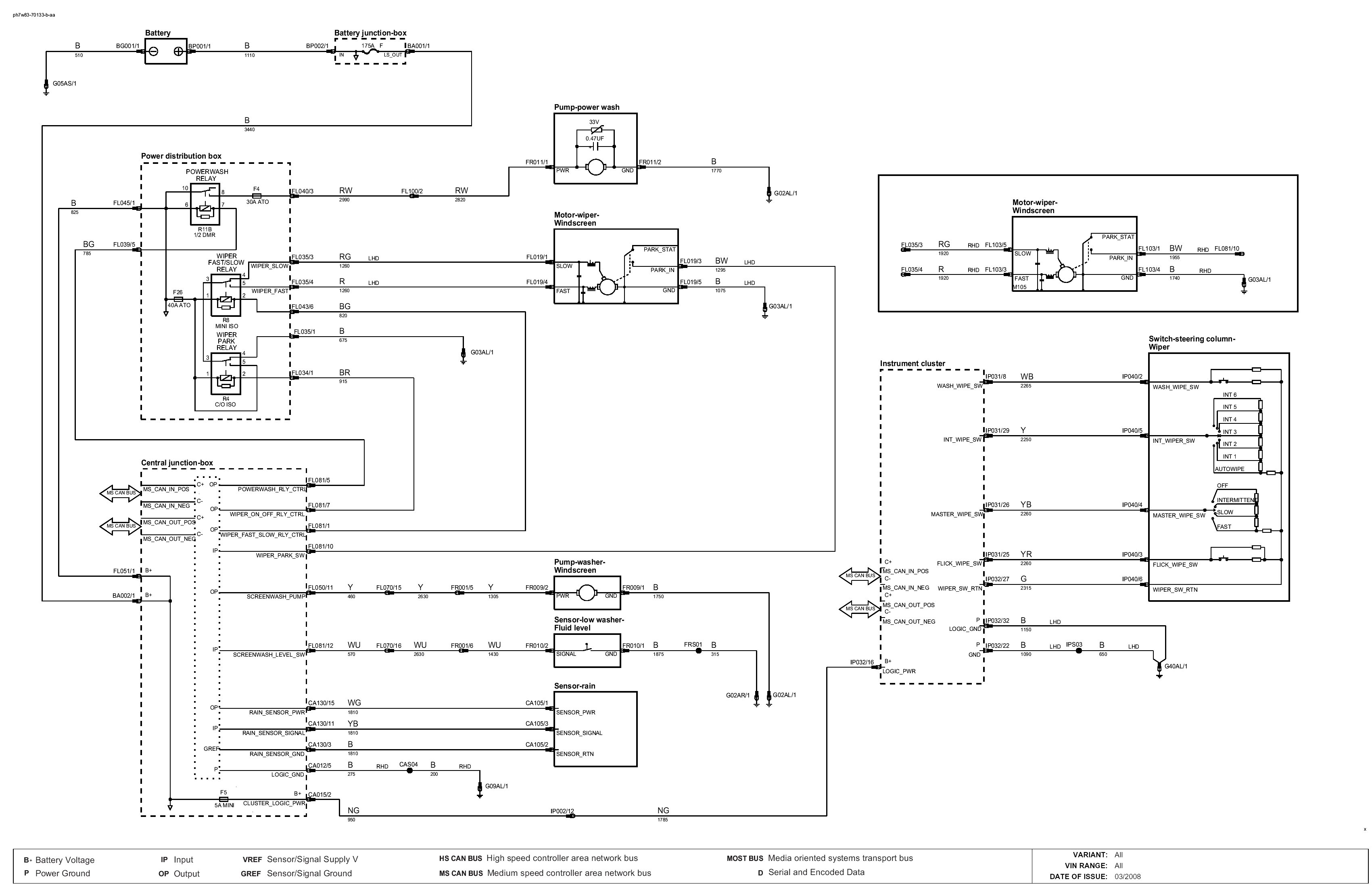

Diagram Figure 14.1:
