Cylinder Head Assembly: Specifications

Cylinder Head Torque & Sequence / Bolt re-usability Service and Repair






Surface Variation -- Head-to-block, Head-to-manifolds And Surface Variation -- Warpage

Cylinder head maximum permitted warp (mm) 0.125

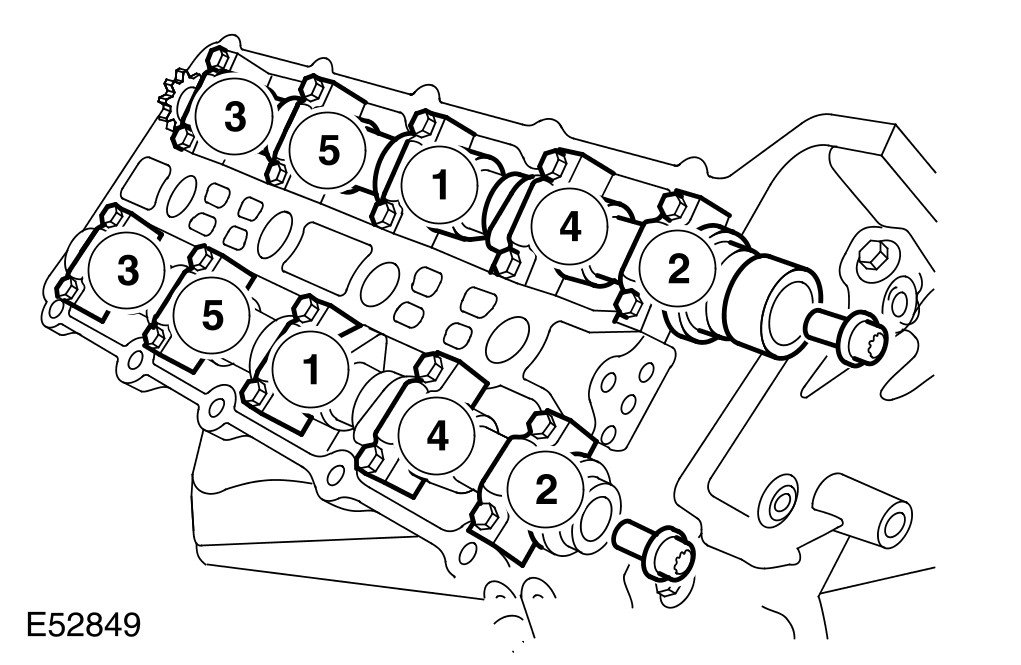

Camshafts LH

Install the camshaft bearing caps.
Evenly and progressively tighten the bolts in the sequence shown to 10 Nm (7 lb.ft).






Camshafts RH




Install the camshaft bearing caps.
Evenly and progressively tighten the bolts in the sequence shown to 10 Nm (7 lb.ft).
