Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XK (X150) V8-4.2L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Pedestrian Protection System
>>
Locations
Pedestrian Protection System: Locations

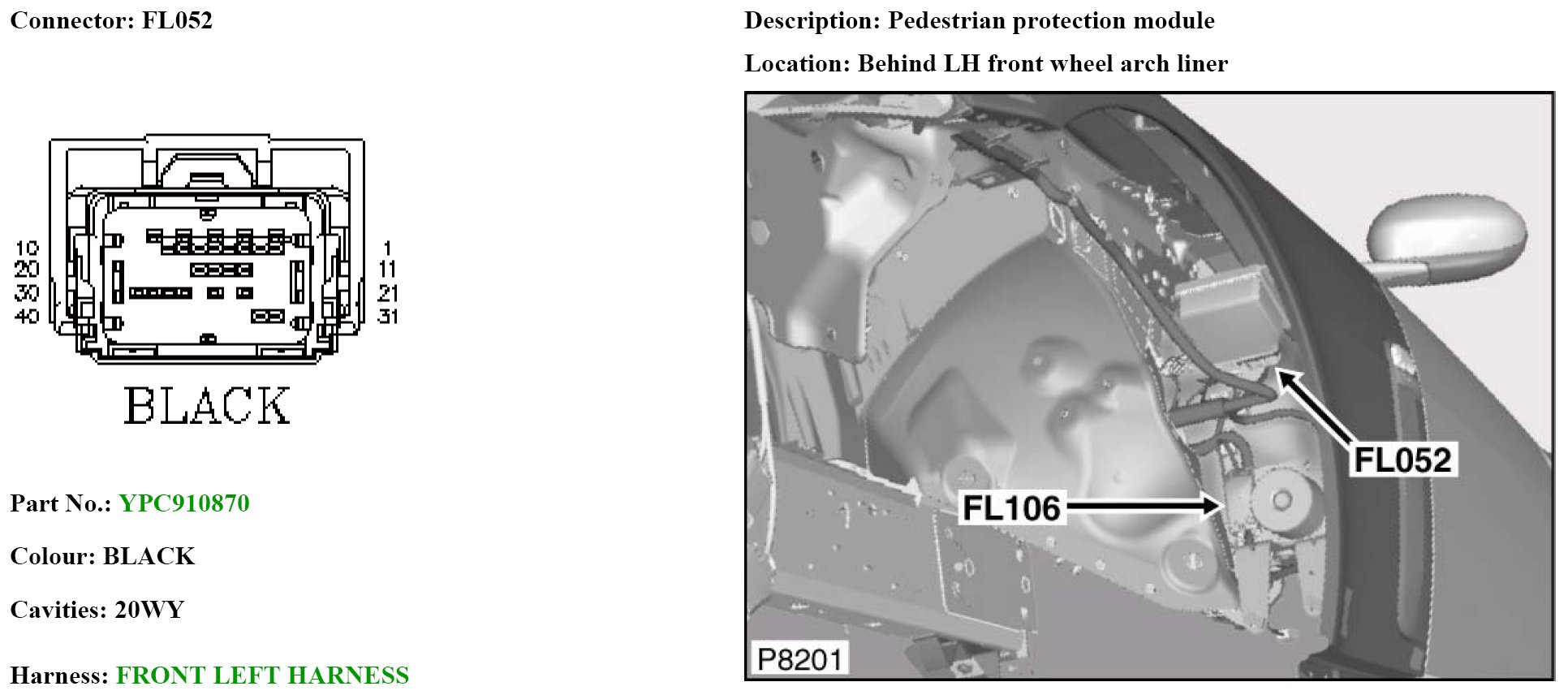

FL052
FL052 (Part 1):
FL052 (Part 2):
