Pedestrian Impact Sensor

Pedestrian Impact Sensor

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the front bumper cover. For additional information, refer to Front Bumper Cover Service and Repair

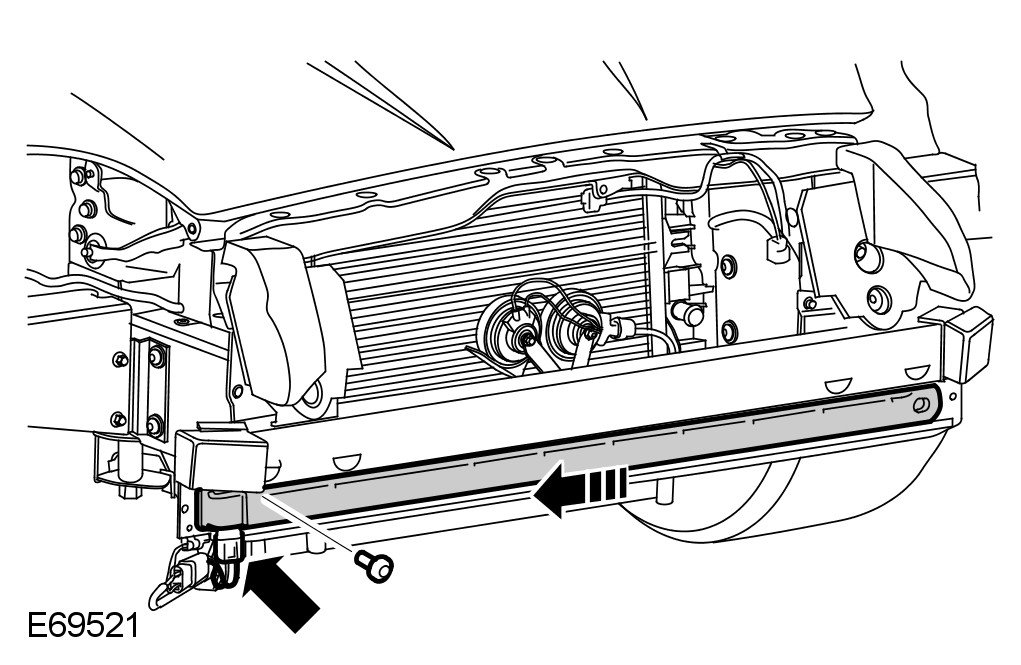

3 Remove the pedestrian impact sensor.
- Disconnect the electrical connector.
- Remove the Torx screw.

Installation
1 Install the pedestrian impact sensor.
- Install the Torx screw.
- Connect the electrical connector.
2 Install the front bumper cover. For additional information, refer to Front Bumper Cover Service and Repair
