Home
>>
Jaguar
>>
2011
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G1D108 - IL012
>>
G4D173
G4D173
G4D173

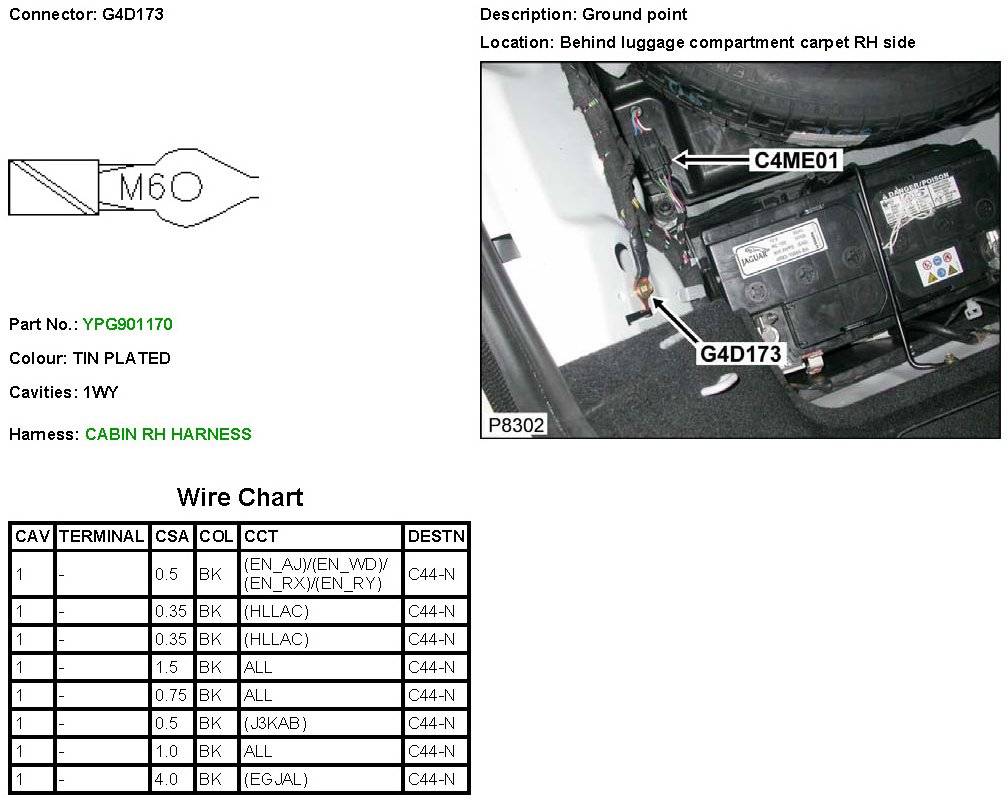

G4D173:
G4D173:
