XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C1EC01D - C1E309
>>

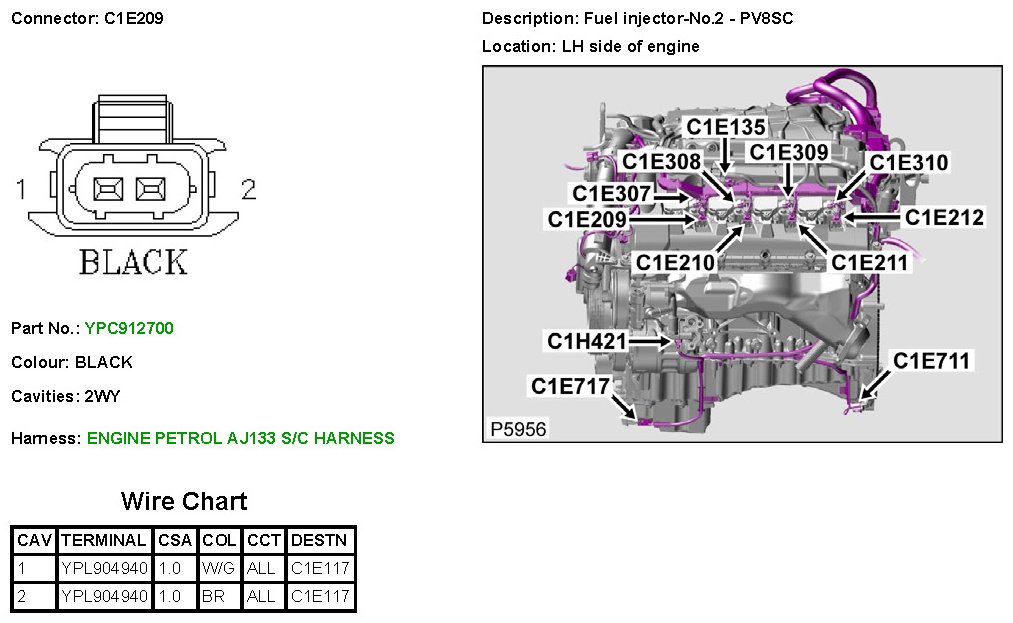

C1E209
C1E209
C1E209
C1E209:
