Home >> Jaguar >> 2011 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C3R106 - C3R223 >> C3R114B

C3R114B

C3R114B

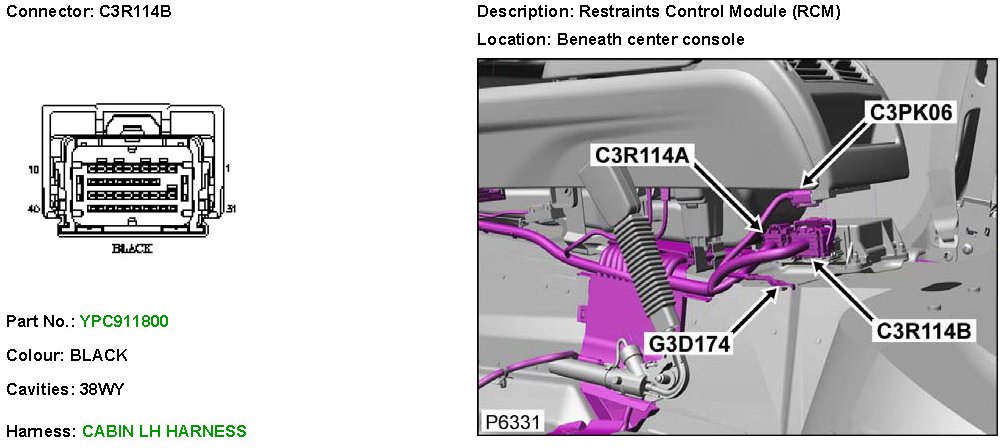

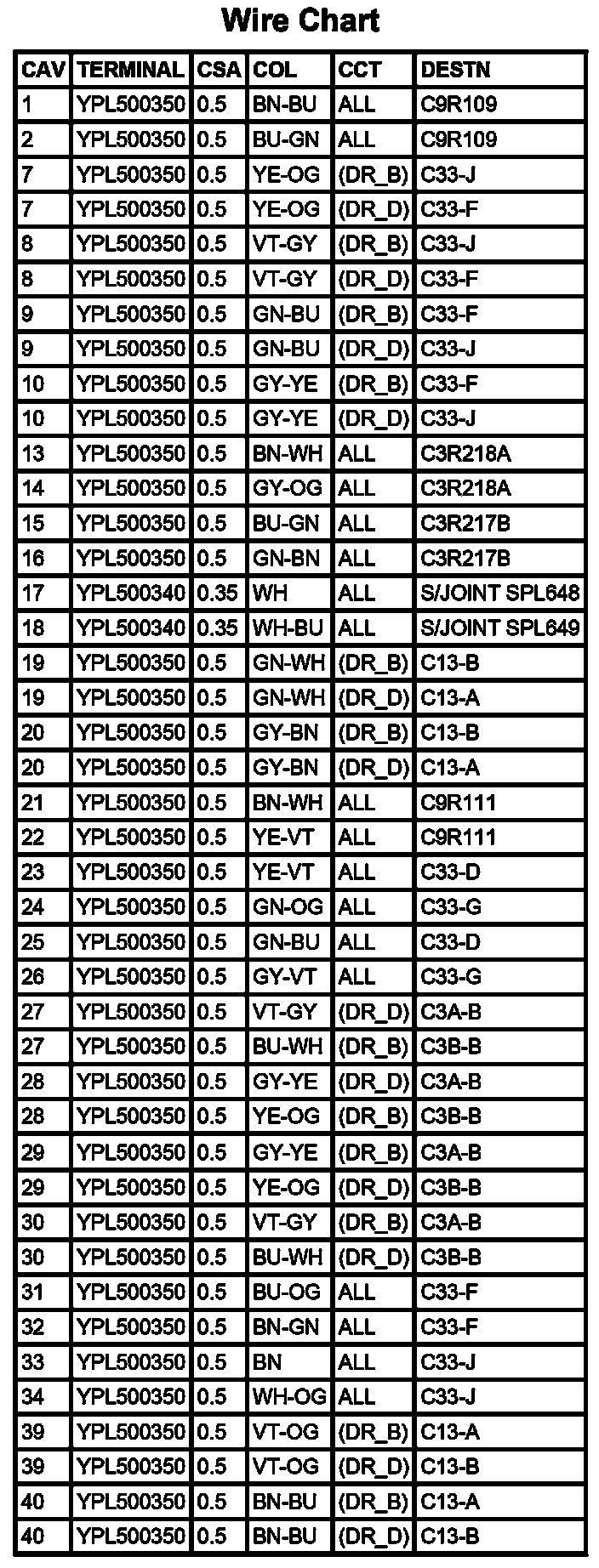

C3R114B (Part 1):

C3R114B (Part 2):

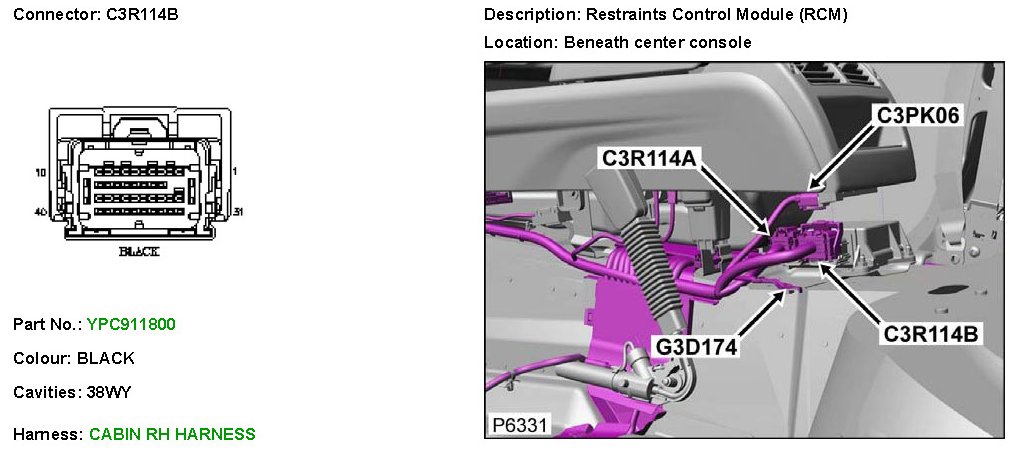

C3R114B (Part 1):

C3R114B (Part 2):
