Home >> Jaguar >> 2011 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connectors >> C43-A - IL012 >> C44-R

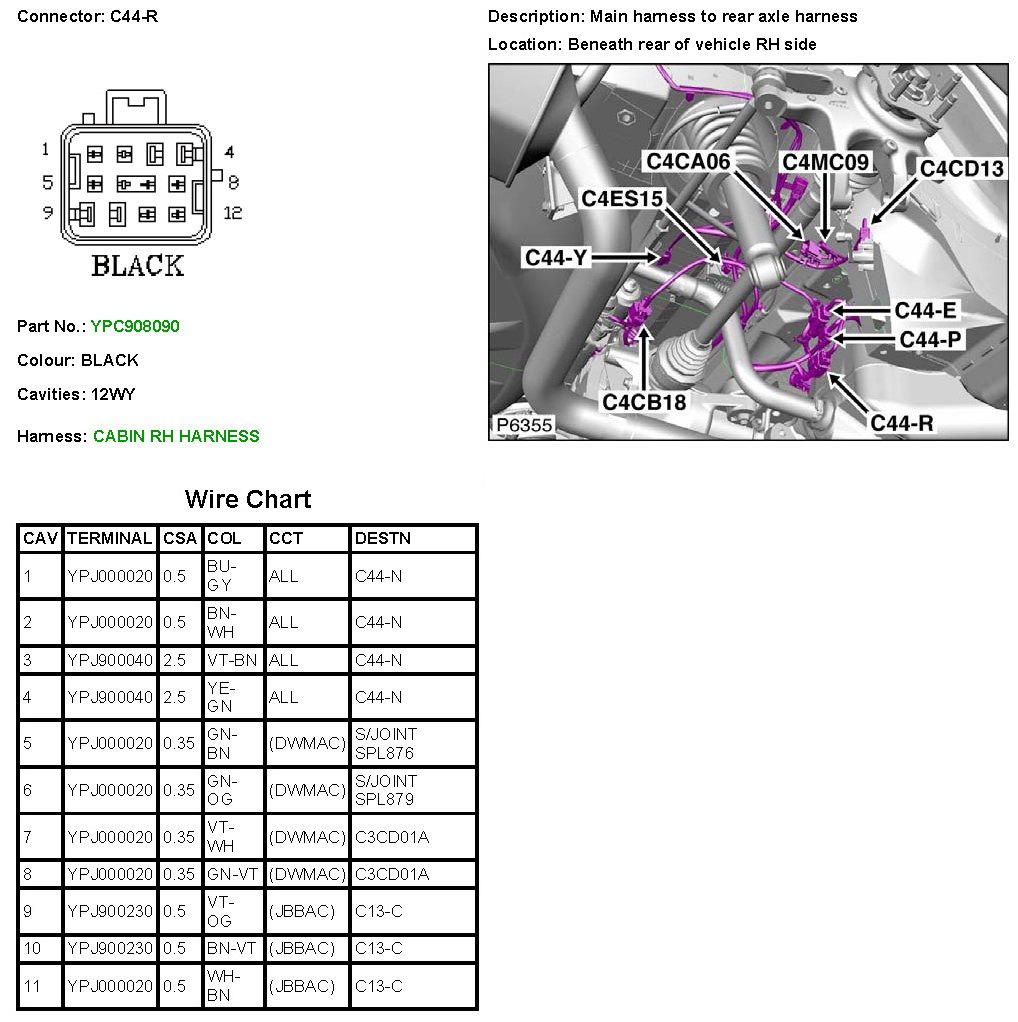

C44-R

C44-R

C44-R:

C44-R:

C44-R:
