Instrument Cluster / Carrier
Instrument Cluster

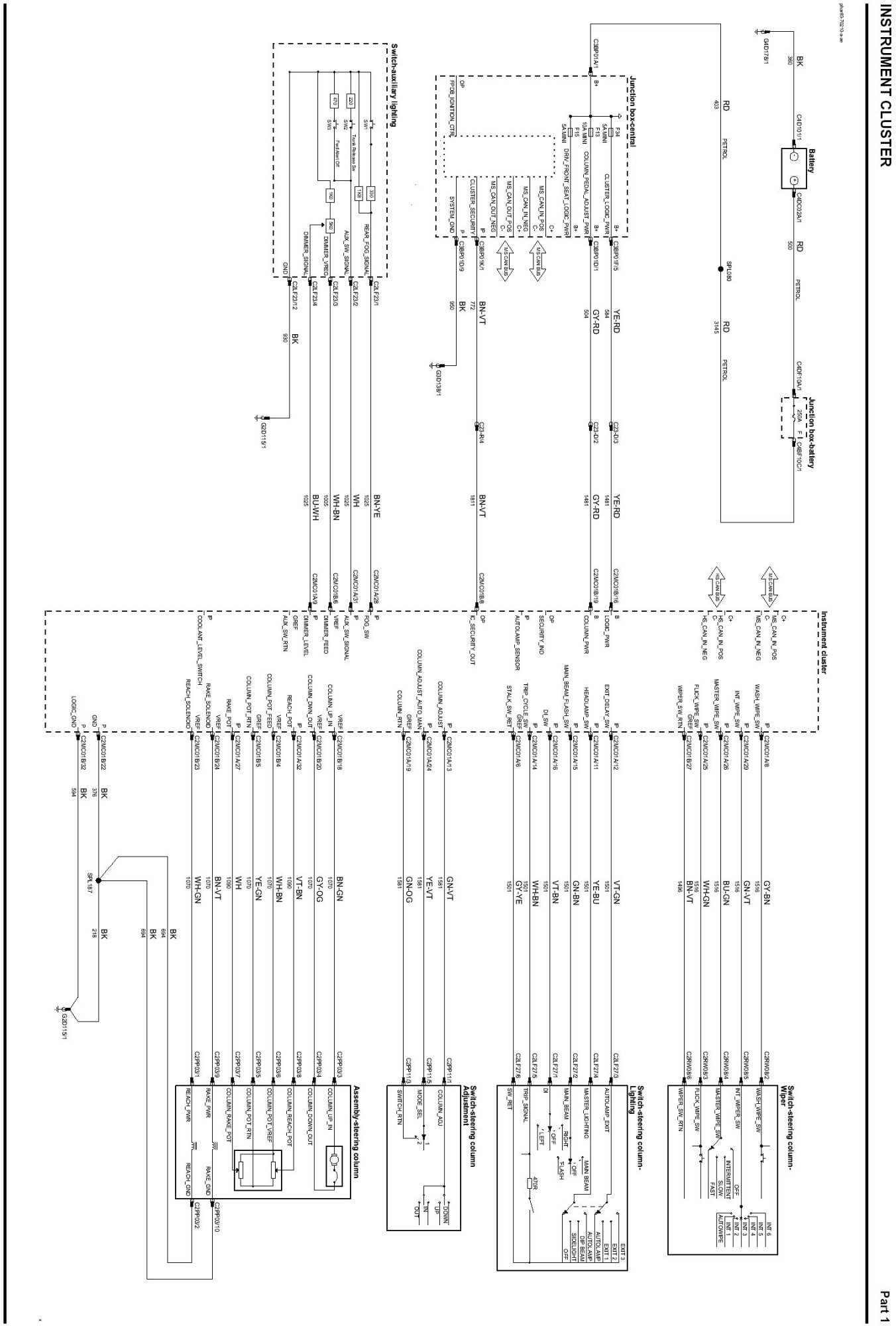

Instrument Cluster (Part 1):

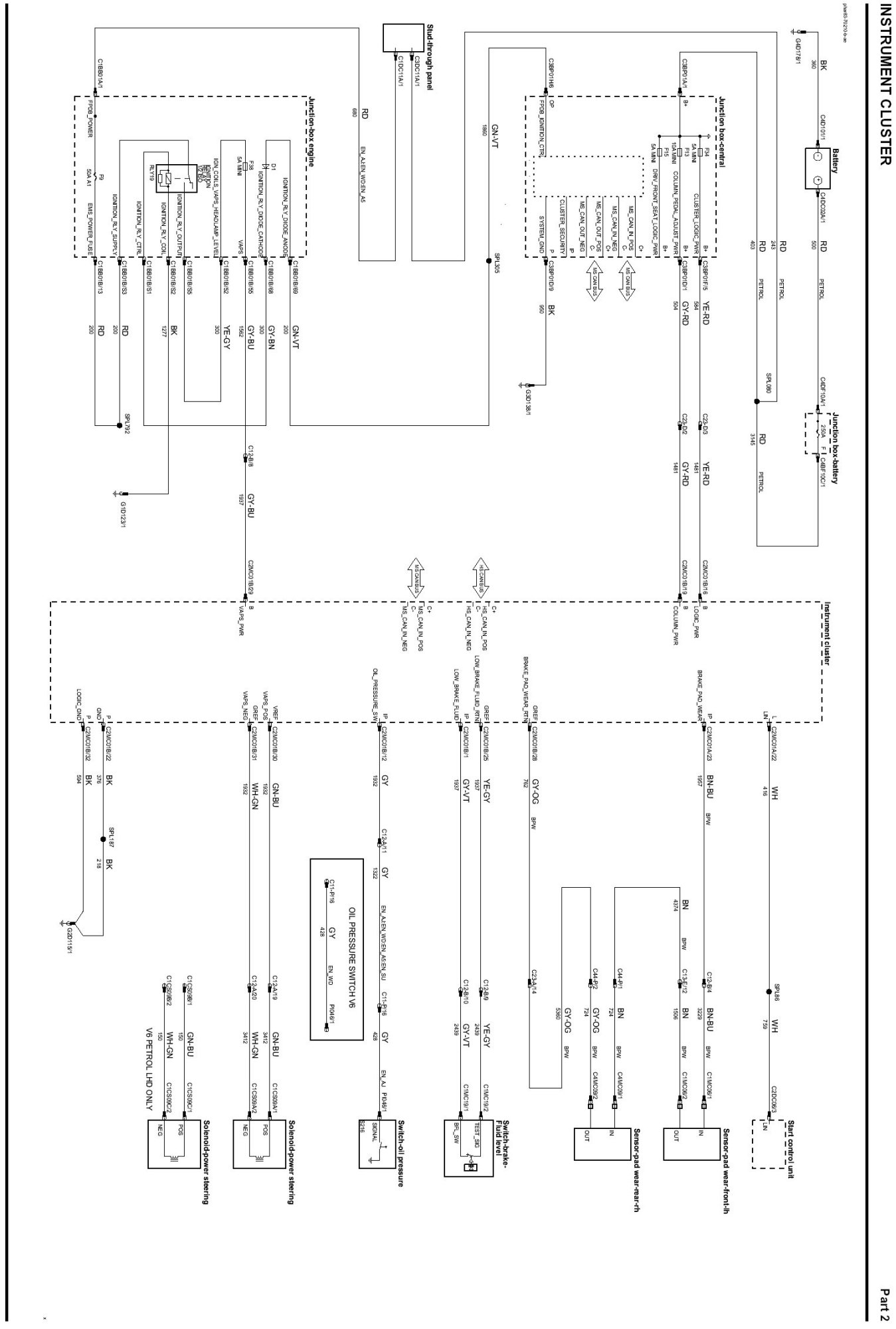

Instrument Cluster - (Part 2):

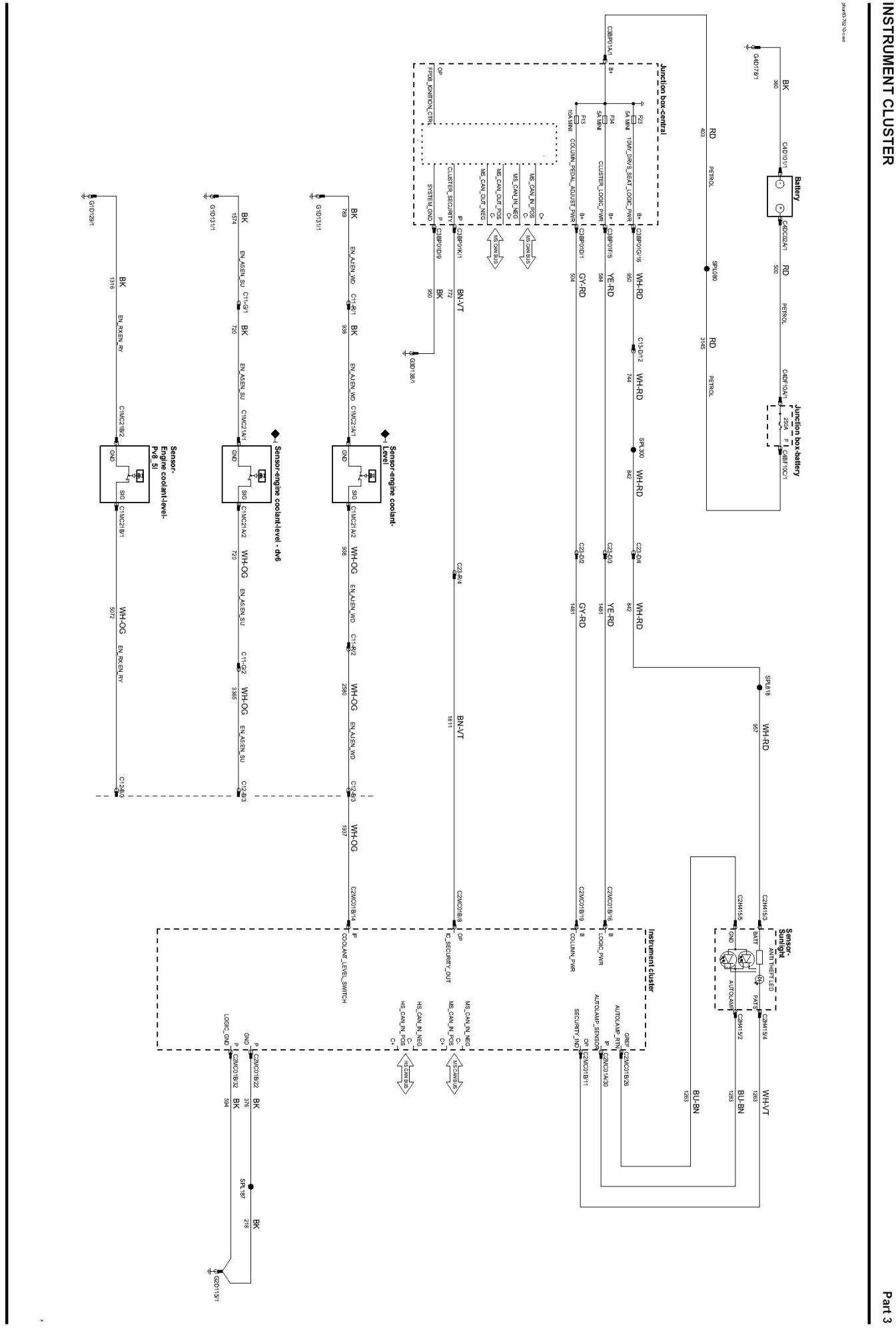

Instrument Cluster - (Part 3):
Instrument Cluster (Part 4):
