Driver Seat - 10 Way Non-Memory (LHD)
Driver Seat - 10 Way Non-Memory (LHD)
Driver Seat - 10 Way Non-Memory (LHD)

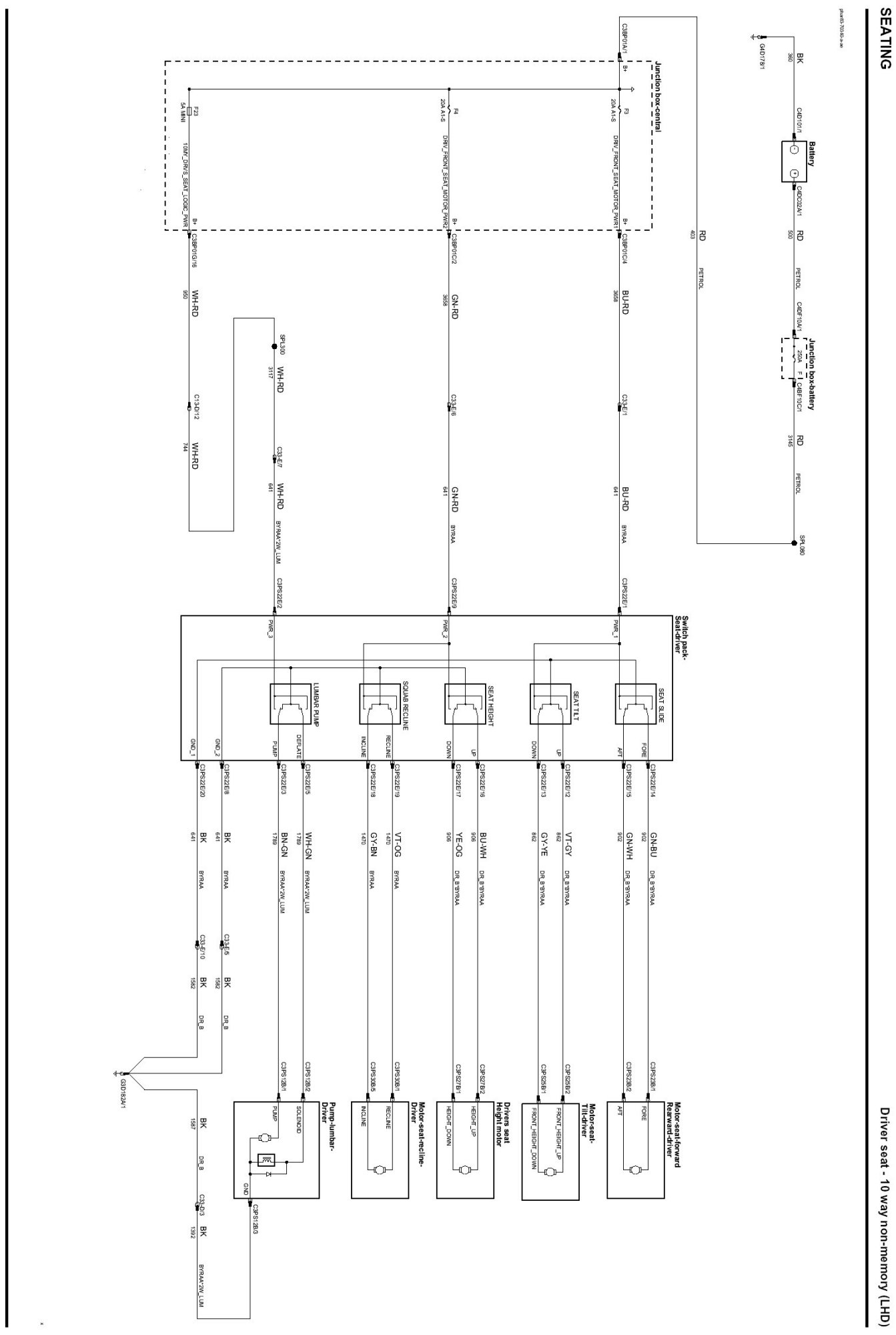

Driver Seat - 10 Way Non-Memory (LHD):
