Jaguar
>>
2011
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C3A-A - C3HS01A
>>
C3BP01F
C3BP01F
C3BP01F

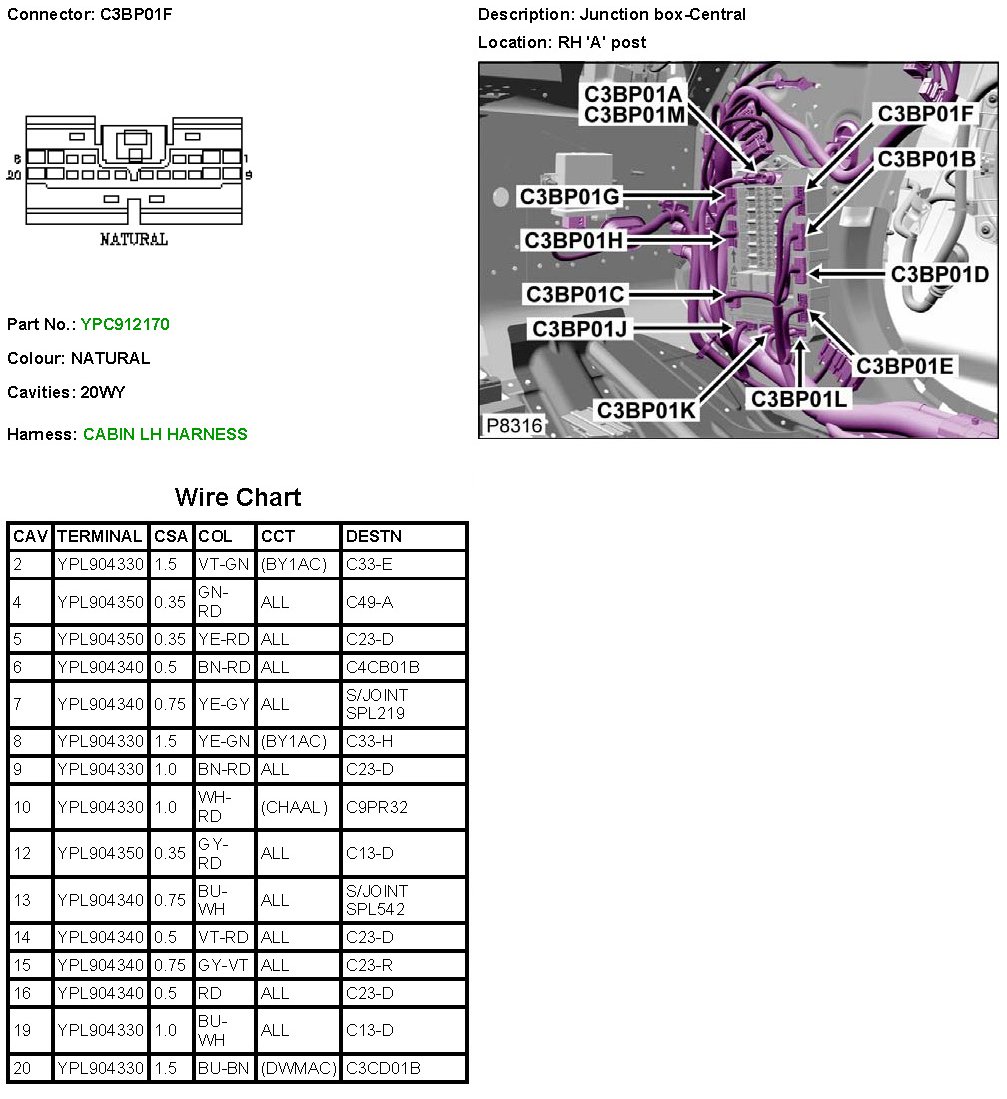

C3BP01F:
C3BP01F:
